Engine model   DEUTZ (BF4L2011)/DEUTZ (D914L04) 47.5kw/58kw

Operating weight    6800kg

Rated load capacity    2200kg

Bucket capacity   1.0cbm

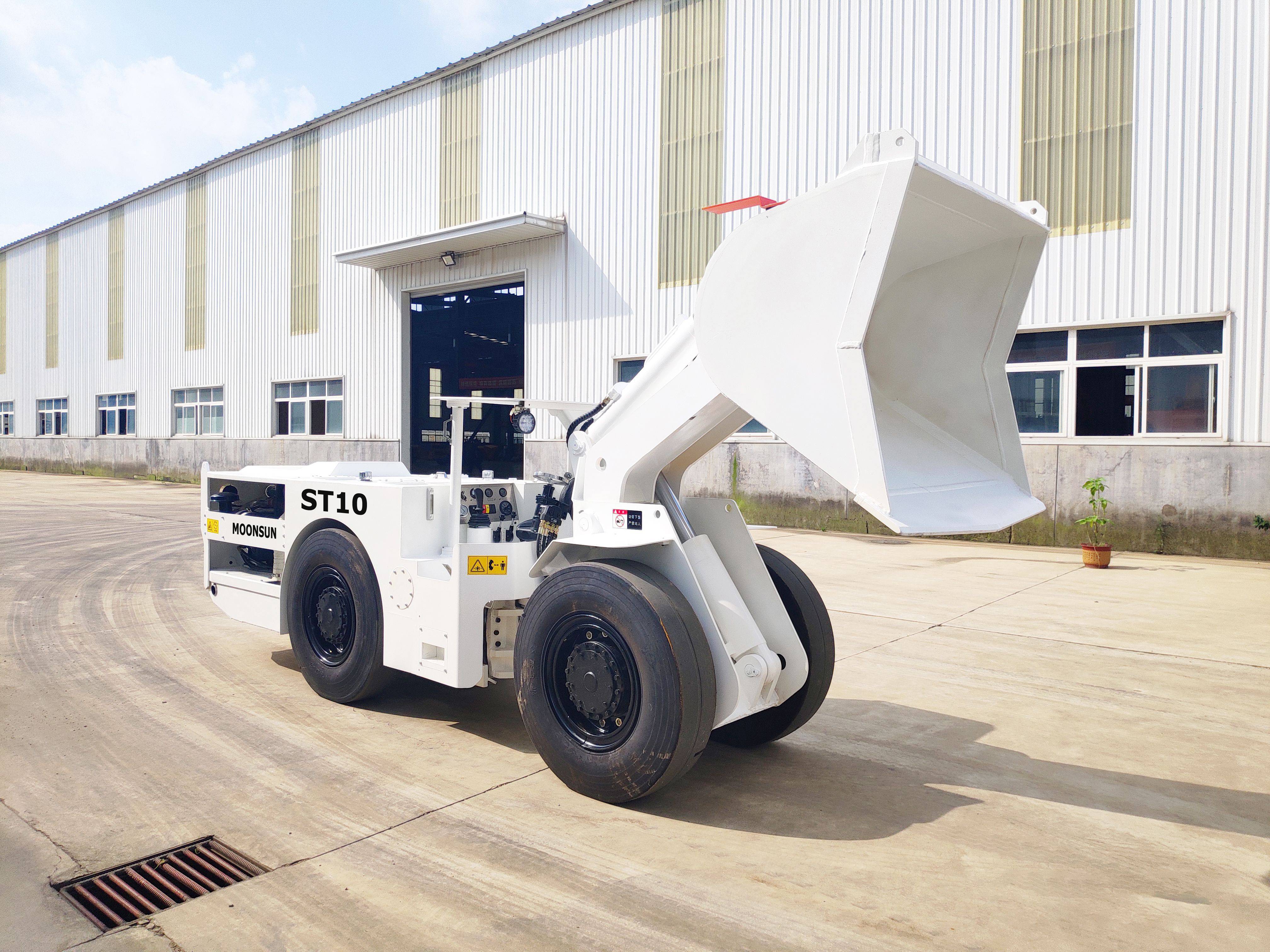

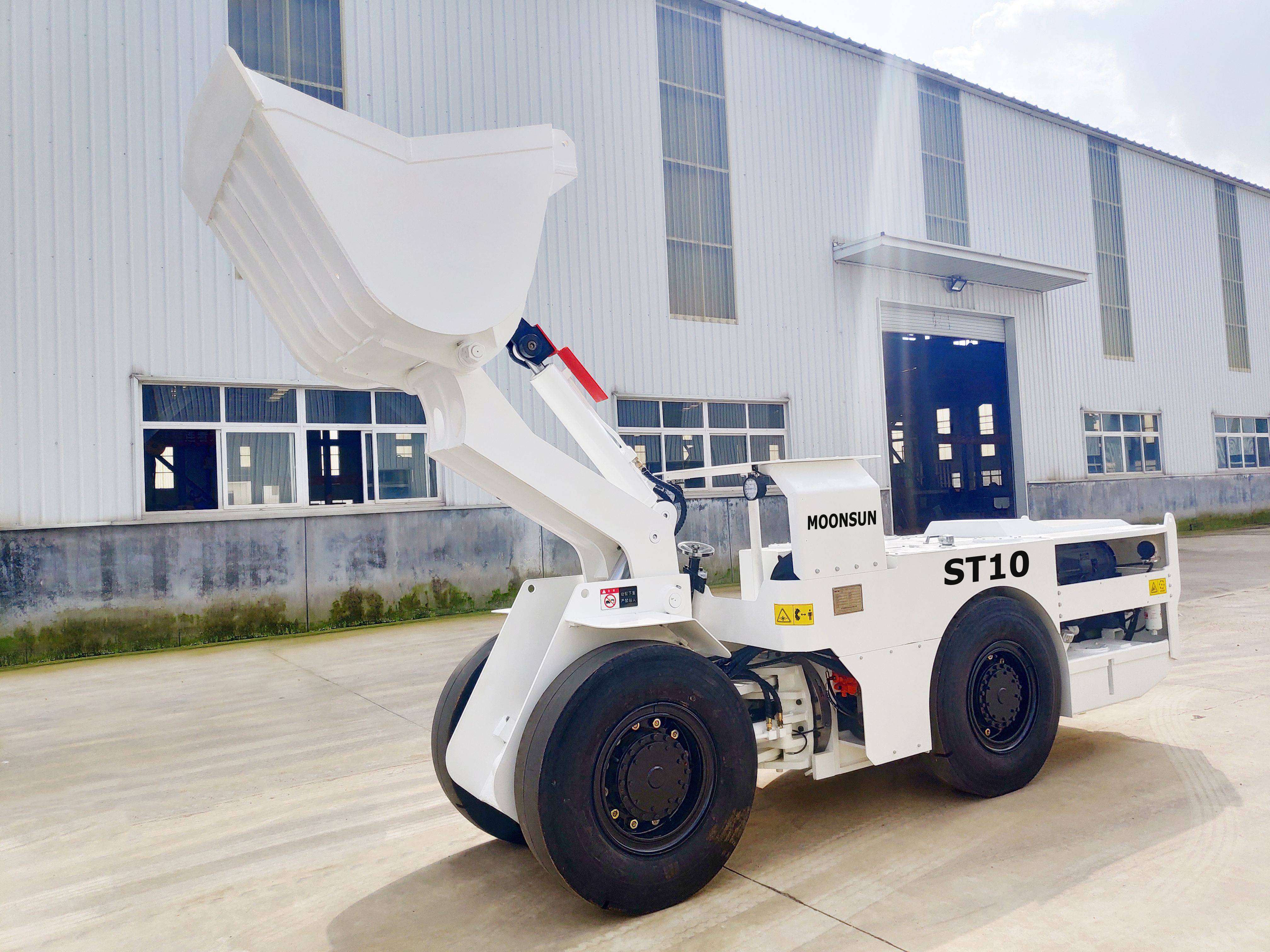

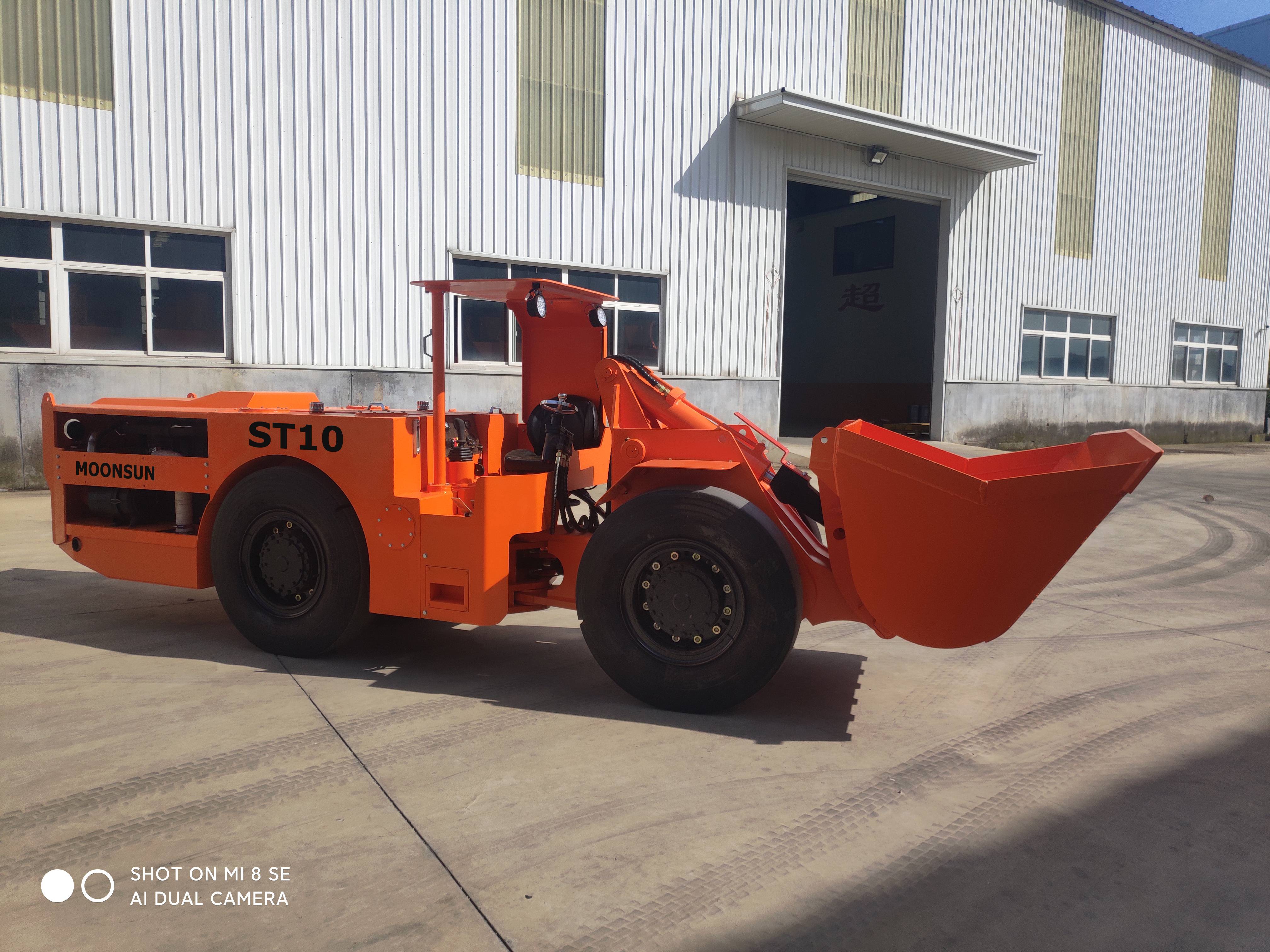

Model   ST10

Brand &nbs pMOONSUN

MAIN SPECIFICATION

Operating weight    6800kg

Rated load capacity    2200kg

Bucket capacity   1.0cbm

Overall dimensions(LxWxH)   5850x1300x2000mm

Max lift height   3250mm

Max dump height   1050mm

Ground clearance   200mm

Turning radius   2540mm/4260mm

Max traveling speed   8km/h

Boom raising time   ≤3.8s

Boom lowering time   ≤1.9s

Dumping time   ≤2.5s

Travel speed   0-8.0km/h

Transmission type   Hydraulic

Pump   DANFOSS T90

Motor    SAUER MV23

Valve   CHANGJIANG ZL20E

Working Voltage   24V

Battery   12V*2

Max breakout force   45Kn

Max traction force   50Kn

Gradeability   20°

Tire size   10.00-20 PR14 L-4S

Hydraulic oil tank capacity   62L

ENGINE

Engine model   DEUTZ (BF4L2011)/DEUTZ (D914L04)

Engine power   47.5kw/58kw

Engine rated speed   2300r/min

Engine type   In-line water-cooling 4-stroke 6 cylinder direct-injection

Fuel oil tank capacity   120L

Start type   Electric
