Can use YUCHAI (YC4A105Z-T20)/ CUMMINS(4BTA3.9-C100) engine Hydraulic pilot control 4WD 8.2ton 0.3cbm and 1.0cbm bucket

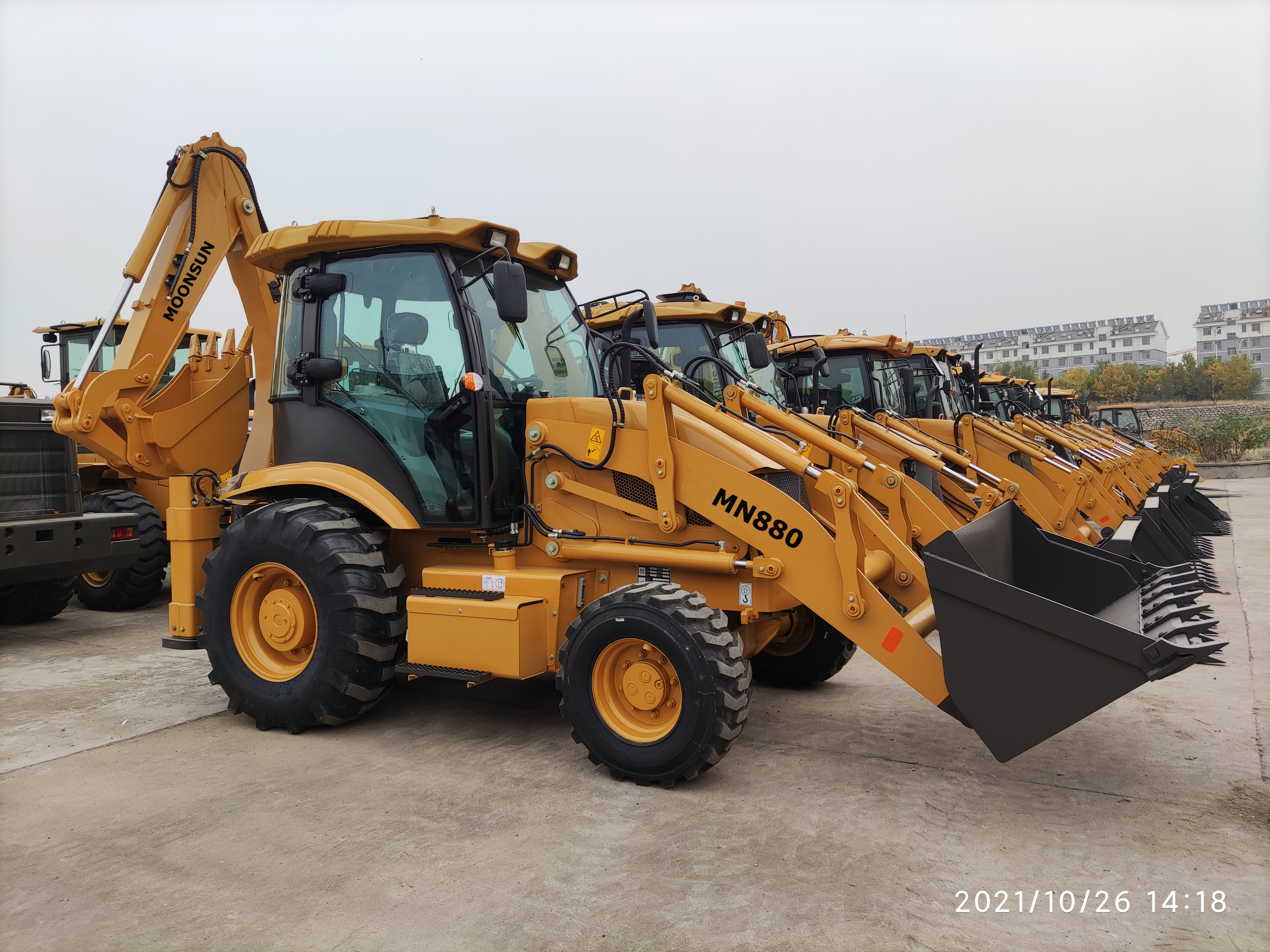

Model   MN880

Brand   MOONSUN

Operating Weight    8.2T

Overall dimension   6230×2265×3762mm

Digging bucket capacity    0.3cbm / 1000kg

Loading bucket capacity   1.0cbm / 2500kg

Engine    YUCHAI (YC4A105Z-T20)/ CUMMINS(4BTA3.9-C100)

Engine power   75kw/74kw

Engine rated speed   2200r/min

Engine type   4 Cylinder in-line Water cooled 4 stroke

Voltage of start motor   12V

Starting type   Electric

Hydraulic main pump   TAIFENG

Hydraulic system pressure    20MPa

Hydraulic system flow    75L/Min

Pilot pump   SKS

Max travel speed    38km/h

Axle and Transmission   FEICHENG/YTO

Gear   F2/R2

Hydraulic pipe   ITALY ( MANULI )

Grade ability    35°

Working fuel consumption   8.8L/h

Diesel oil tank capacity   120L

Engine oil tank capacity   9L

Hydraulic oil tank capacity   125L

Cooling fluid tank capacity   15L

Boom length   3550mm

Arm length   2430mm

Radius swing center to rear end    2250mm

Min swing radius   5090mm

Tyre size    14-17.5/19.5L-24

Wheel base    2250mm

Wheel Tread    1660mm

Ground clearance   300mm

Drive method   Hydraulic pilot 4WD

Light   All LED lights

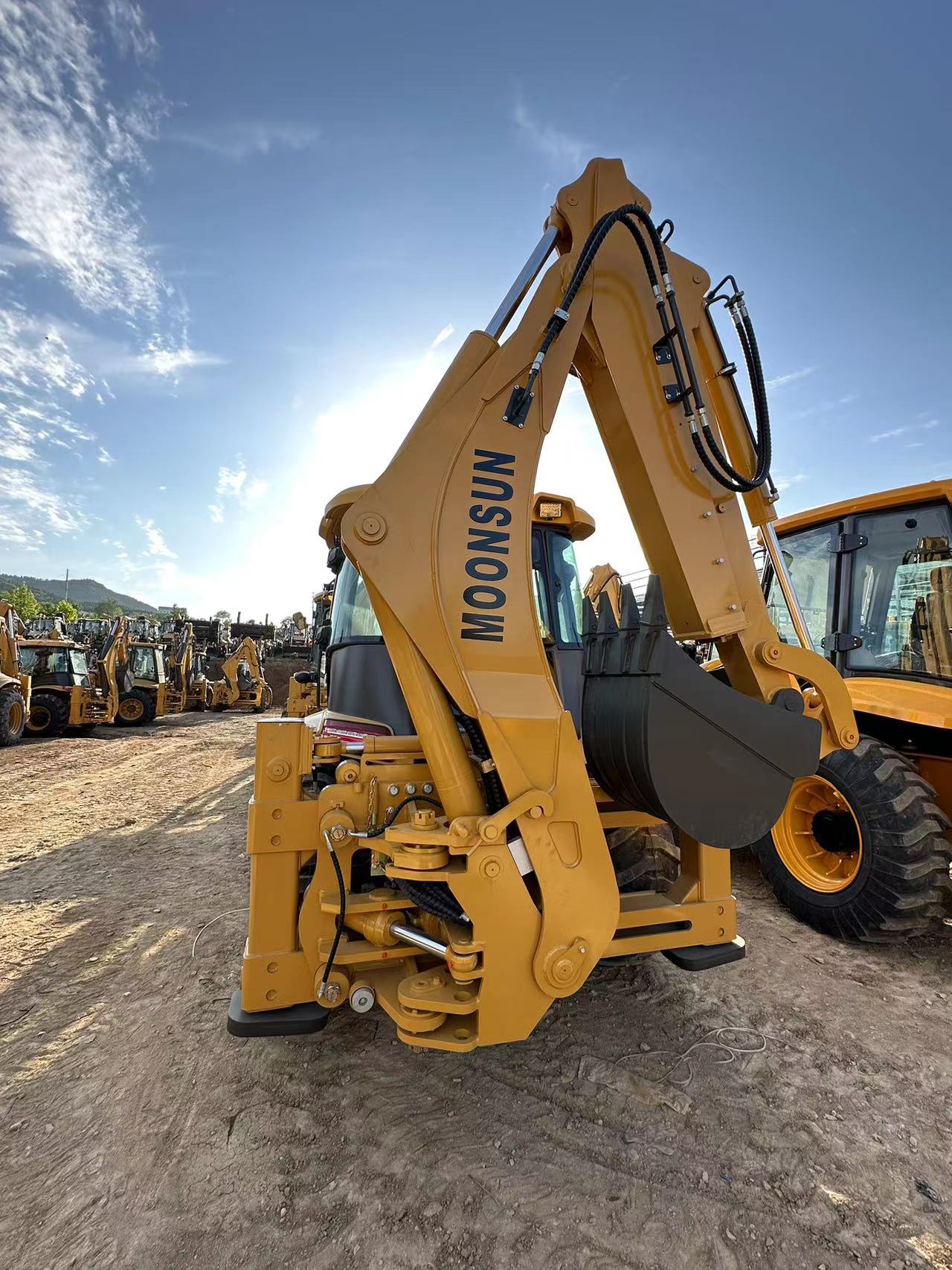

Backhoe part

Digging bucket width    650mm

Digging bucket weight   205kg

Maximum outrigger width (extended)）   2960mm

Minimum outrigger width (transport)   2070mm

Maximum dumping height   4410mm

Maximum digging depth   4182mm

Maximum digging radius   5320mm

Digging bucket force   60Kn

Digging boom force   35.5Kn

Loader part

Loading bucket width   2030mm

Loading bucket weight   380kg

Maximum loading height   3390mm

Maximum loader dumped height   2750mm

Maximum digging depth   20-25mm

Attachments   hammer auger quick hitch narrow bucket tilt bucket grabber
