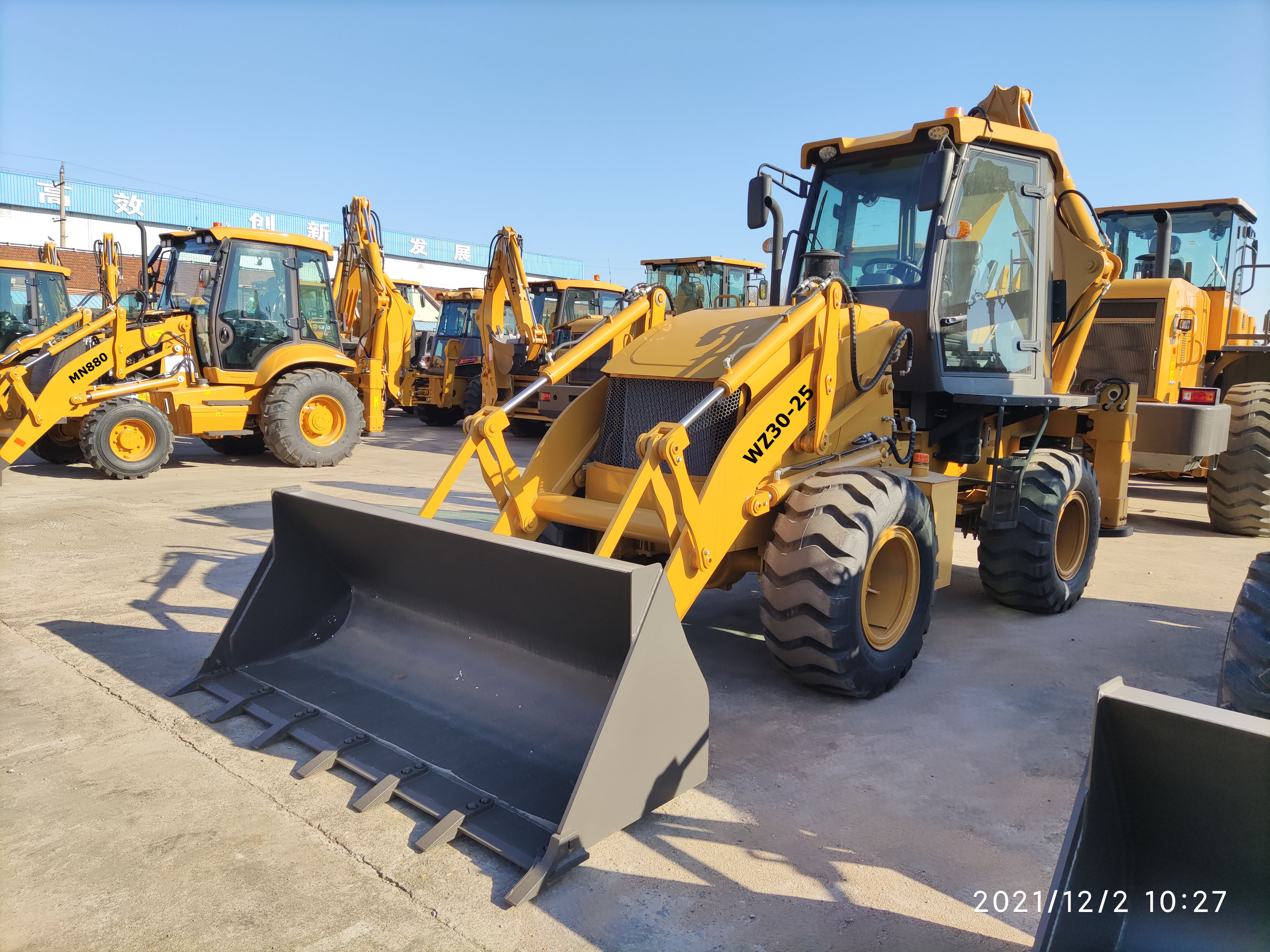

Can use YUCHAI (YC4A105Z-T20)/CUMMINS(4BTA3.9-C100) engine 7.6ton 4WD Hydraulic pilot control 0.30cbm and 1.00cbm bucket

Model   WZ30-25

Brand   MOONSUN

Operating Weight    7.6T

Overall dimension   5950×2270×3770 mm

Digging bucket capacity    0.3cbm / 1000kg

Loading bucket capacity   1.0cbm / 2500kg

Engine    YUCHAI (YC4A105Z-T20)/ CUMMINS(4BTA3.9-C100)

Engine power    75kw/74kw

Engine rated speed   2200r/min

Engine type   4 Cylinder in-line Water cooled 4 stroke

Voltage of start motor   12V

Starting type   Electric

Hydraulic main pump   TAIFENG

Hydraulic system pressure    20MPa

Hydraulic system flow    75L/Min

Pilot pump   SKS

Max travel speed    25km/h

Axle and Transmission   FEICHENG/YTO

Gear   F2/R2

Hydraulic pipe   ITALY ( MANULI )

Grade ability    35°

Working fuel consumption   8.8L/h

Diesel oil tank capacity   120L

Engine oil tank capacity   9L

Hydraulic oil tank capacity   125L

Cooling fluid tank capacity   15L

Boom length   3500mm

Arm length   2350mm

Radius swing center to rear end    2200mm

Min swing radius   5050mm

Tyre size    16/70-20

Wheel base    2250mm

Wheel tread    1640mm

Ground clearance   300mm

Drive method   Hydraulic pilot 4WD

Light   All LED lights

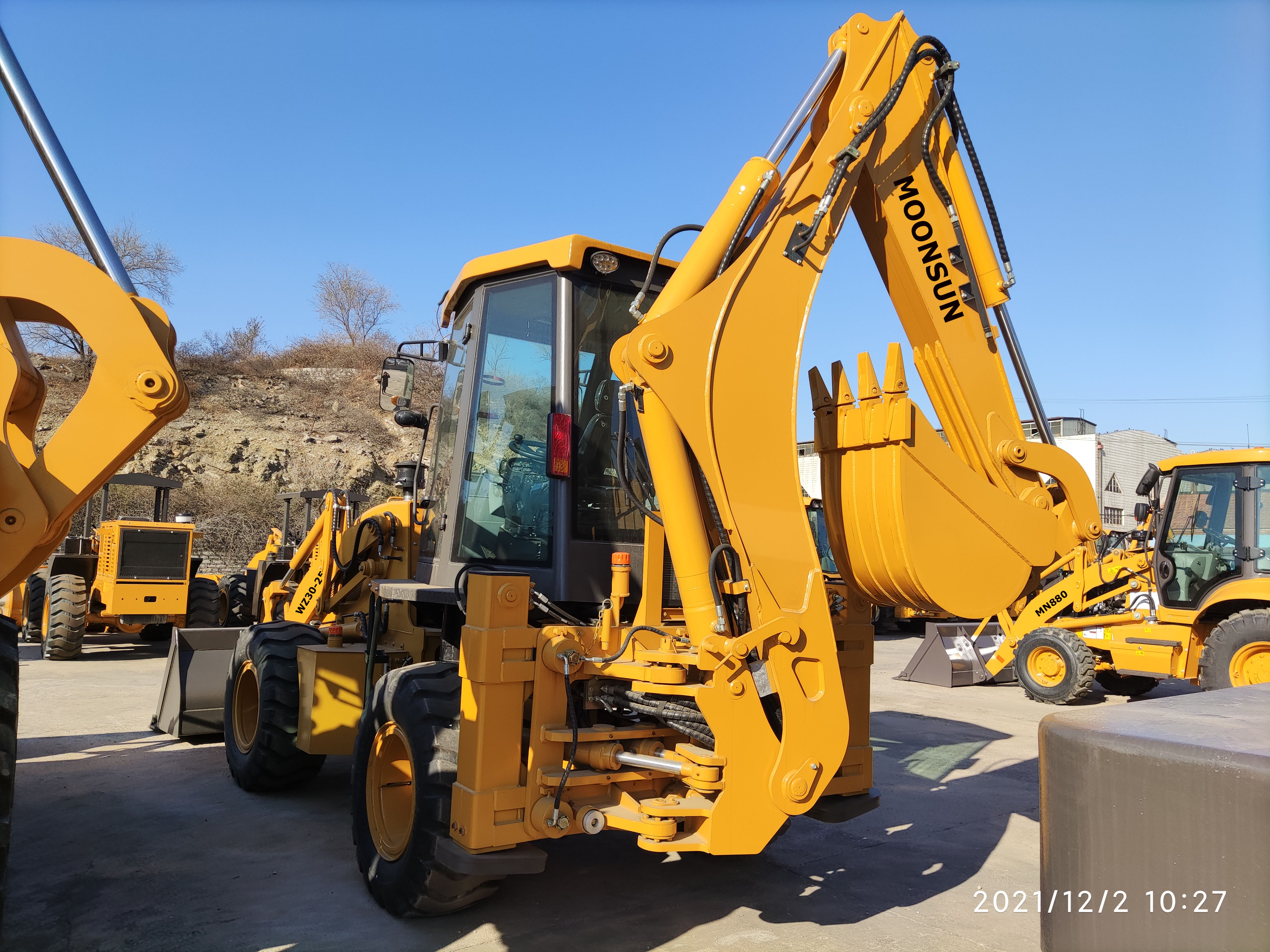

Backhoe part

Digging bucket width    650mm

Digging bucket weight   205kg

Maximum outrigger width (extended)）   2950mm

Minimum outrigger width (transport)）   2050mm

Maximum dumping height   4350mm

Maximum digging depth   4100mm

Maximum digging radius   5320mm

Digging bucket force   60Kn

Digging boom force   35.5Kn

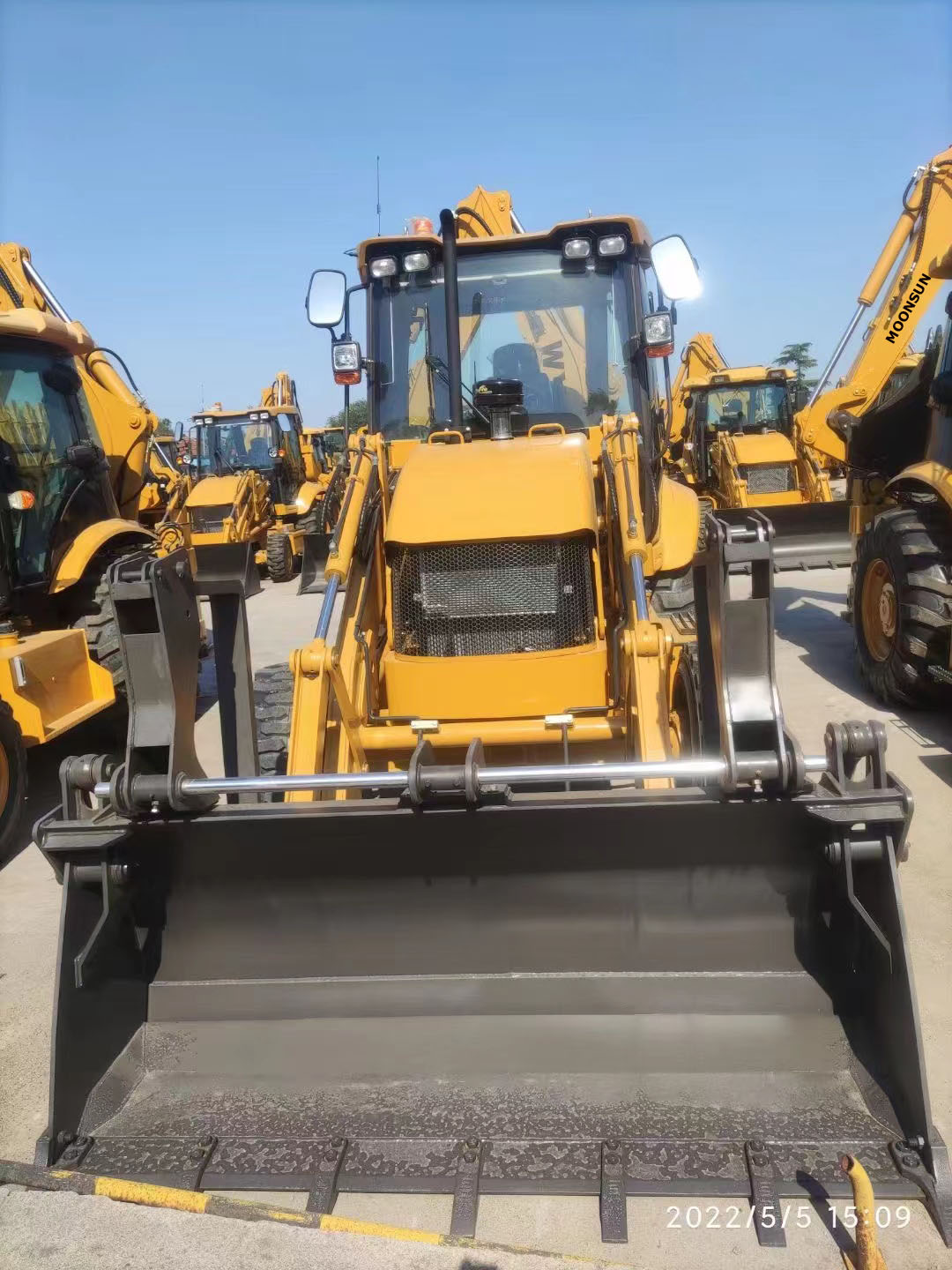

Loader part

Loading bucket width   2030mm

Loading bucket weight   380kg

Maximum loading height   3360mm

Maximum loader dumped height   2805mm

Maximum digging depth   20-25mm

Attachments   hammer auger quick hitch narrow bucket tilt bucket grabber
