600kg0.02CBM Can use EURO5 emission diesel Koop(192) engine and Petro Briggs & Stratton(XR2100) engine standard with USB mobile charger JINXING pump BEIFANG valve USA EATON swing motor and travel motor. Can with the swing boom and extended tracks.

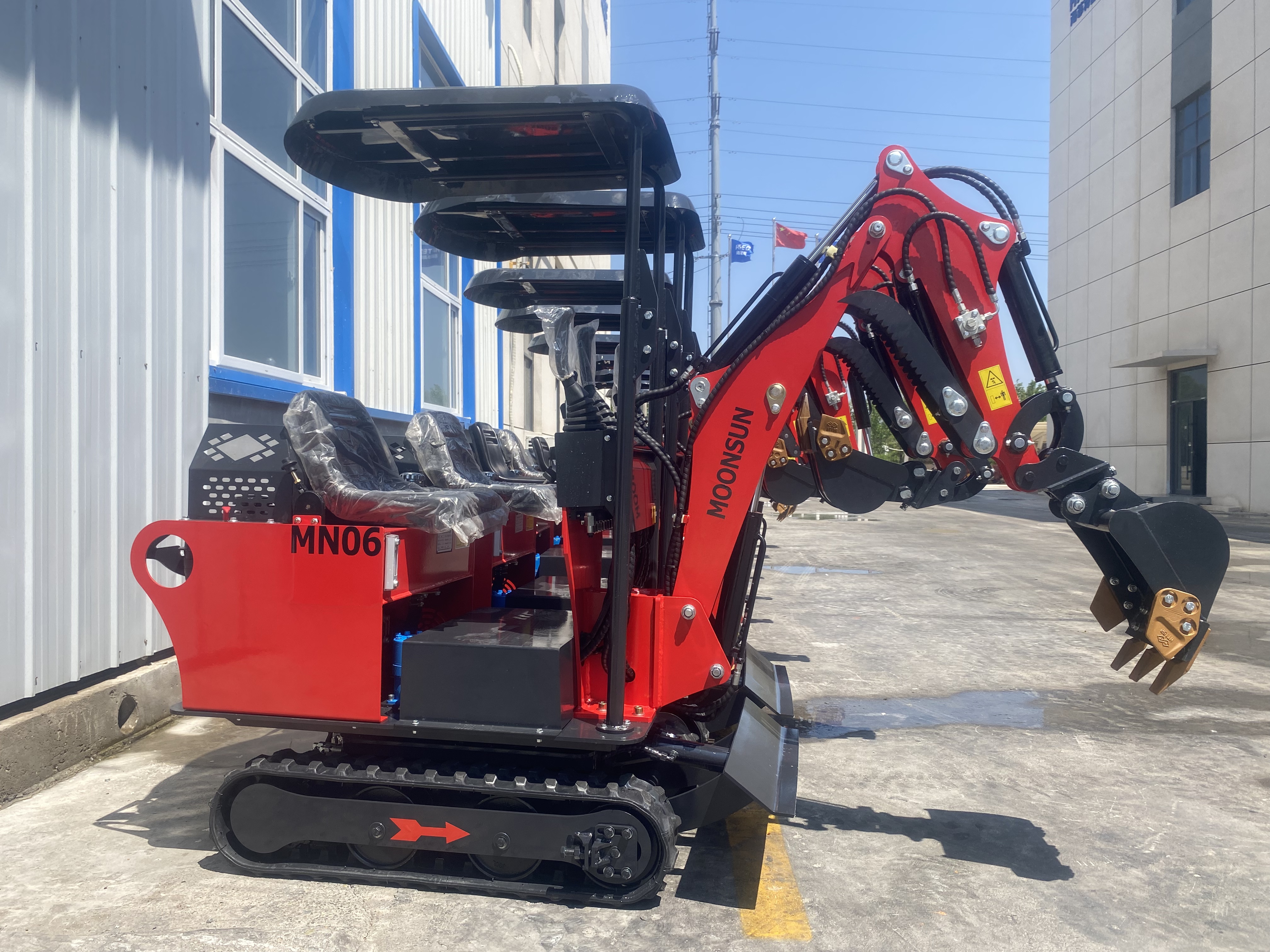

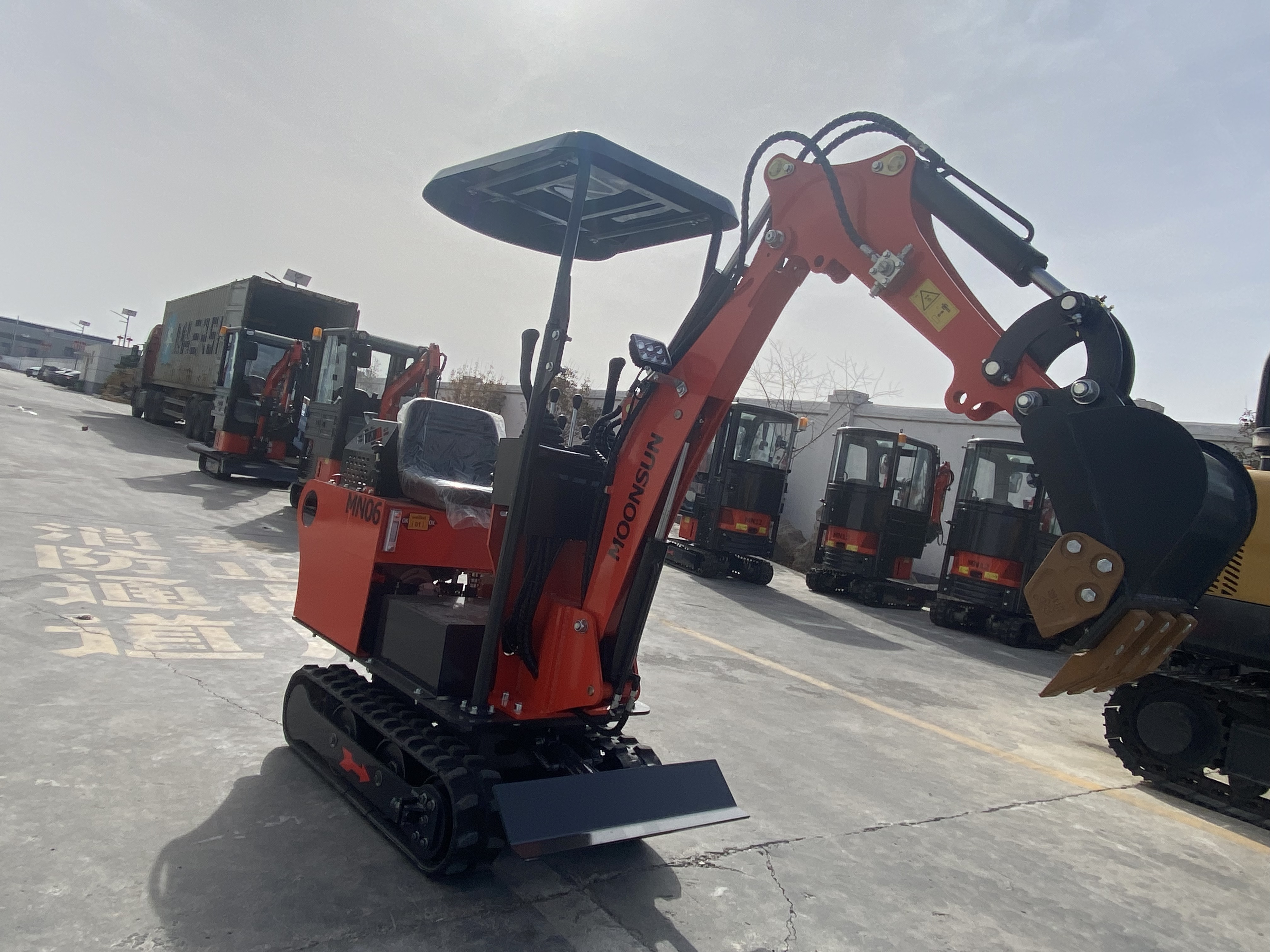

Model   MN06

Brand   MOONSUN

Operating weight    0.6T

Overall dimension   2250x780x1210mm

Bucket capacity    0.02cbm

Engine    KOOP(192)/Briggs & Stratton(XR2100)

Engine rated power/speed    7.0kw/13.5kw

Engine type   Diesel/Petro one cylinders in line

Voltage of start motor   12V

Starting type   ELECTRIC

Hydraulic main pump   JINXING

Hydraulic system pressure    16MPa

Hydraulic system flow    16L/Min

Valve   BEIFANG

Swing motor   USA EATON

Swing speed    11r/min

Travel motor   USA EATON

Travel speed    2.2km/h

Bucket digging force    8.6Kn

Arm digging force    4.3Kn

Grade ability    30 Degree

Ground pressure   22KPa

Working fuel consumption   1.2L/h

Diesel oil tank capacity   5L

Engine oil tank capacity   1.6L

Hydraulic oil tank capacity   5L

Cooling fluid tank capacity   3L

Boom length   1500mm

Arm length   900mm

Chassis ground clearance   205mm

Track shoe width   180mm

Max Digging height    2490mm

Max Dumping height    1750mm

Max Digging depth    1400mm

Max Vertical digging depth   1320mm

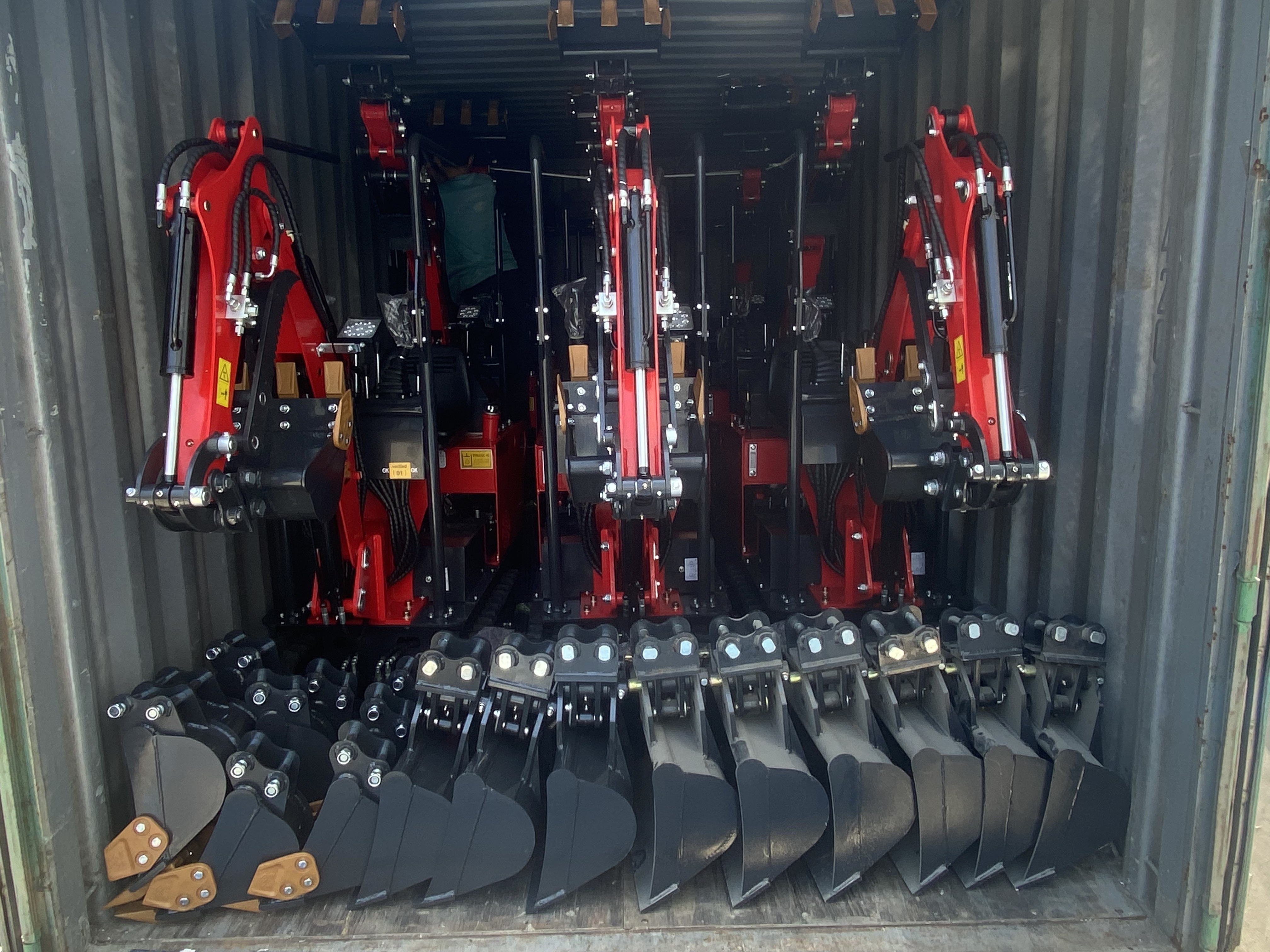

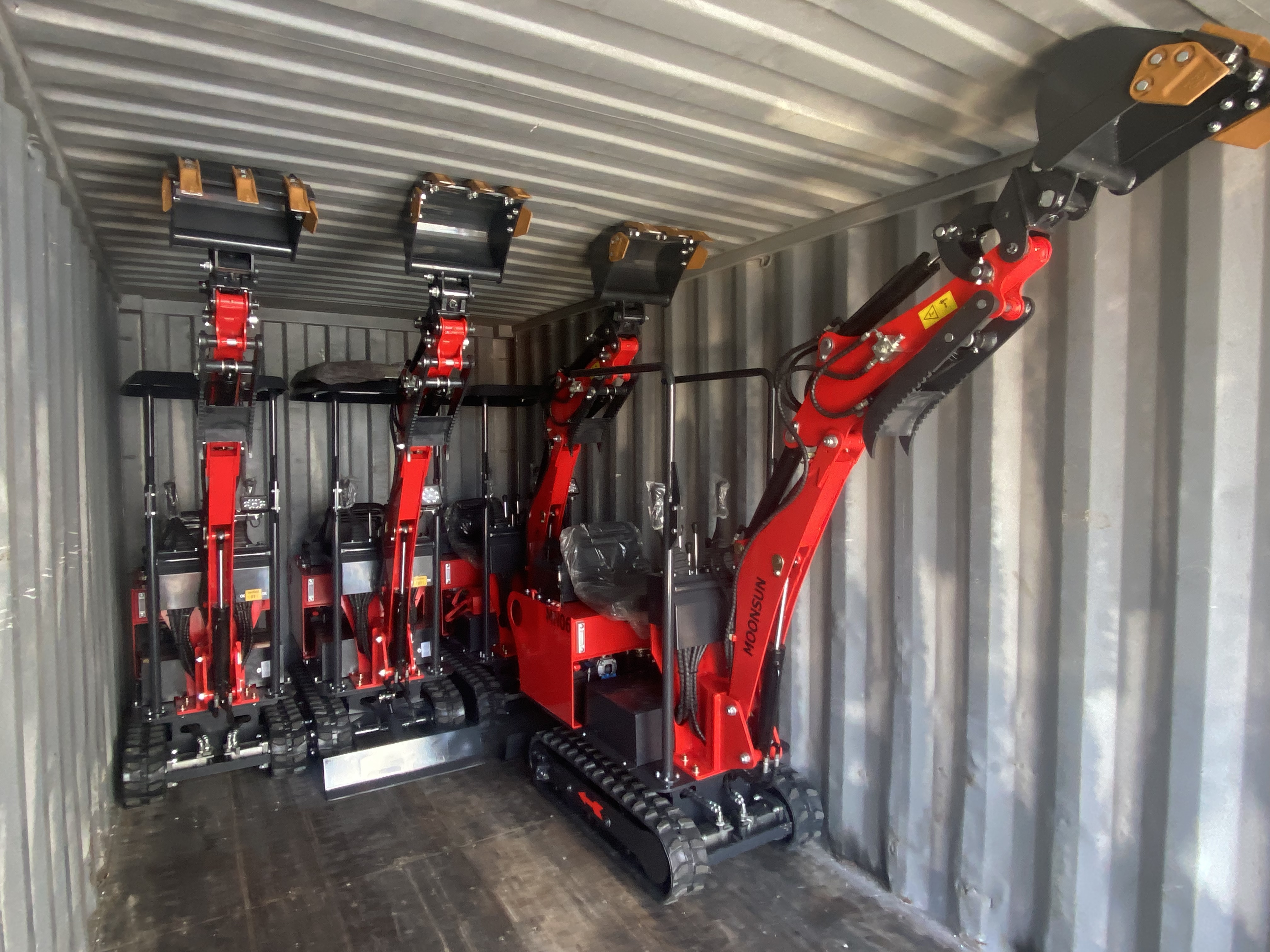

Packing way   One 20ft load 9 units/one 40ft load 21 units

Passed certificates   CE ISO

Can add accessories   Can add the Auger Grabber Narrow bucket Plain bucket Tilt bucket Ripper Rake Hammer Thumb Quick hitch 200mm/380mm//500mm/600mm buckets 600mm tilt bucket
