Engine model   DEUTZ (BF4L2011) 47.5kw

Operating weight    5200kg

Rated load capacity    1200kg

Bucket capacity   0.6cbm

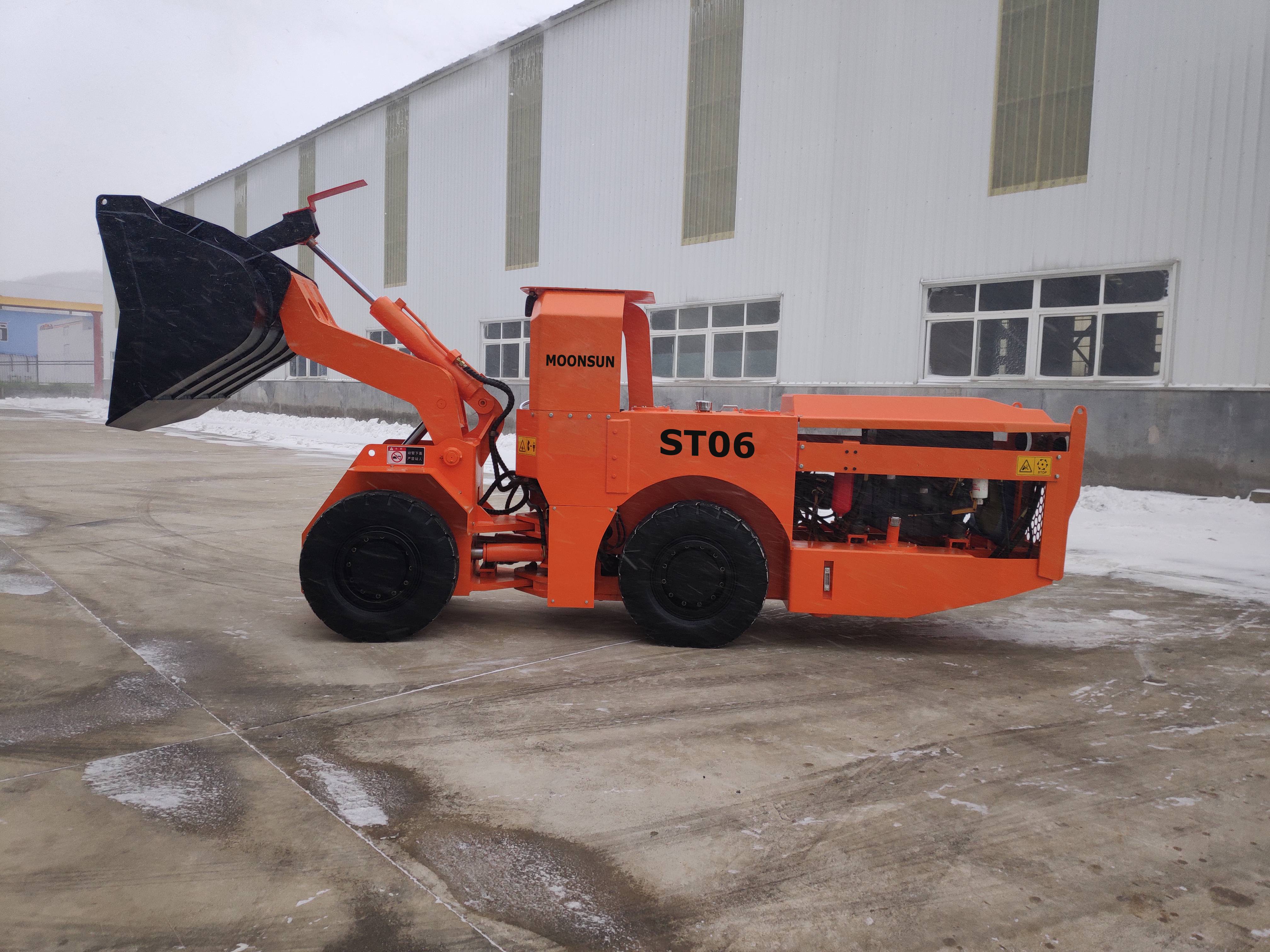

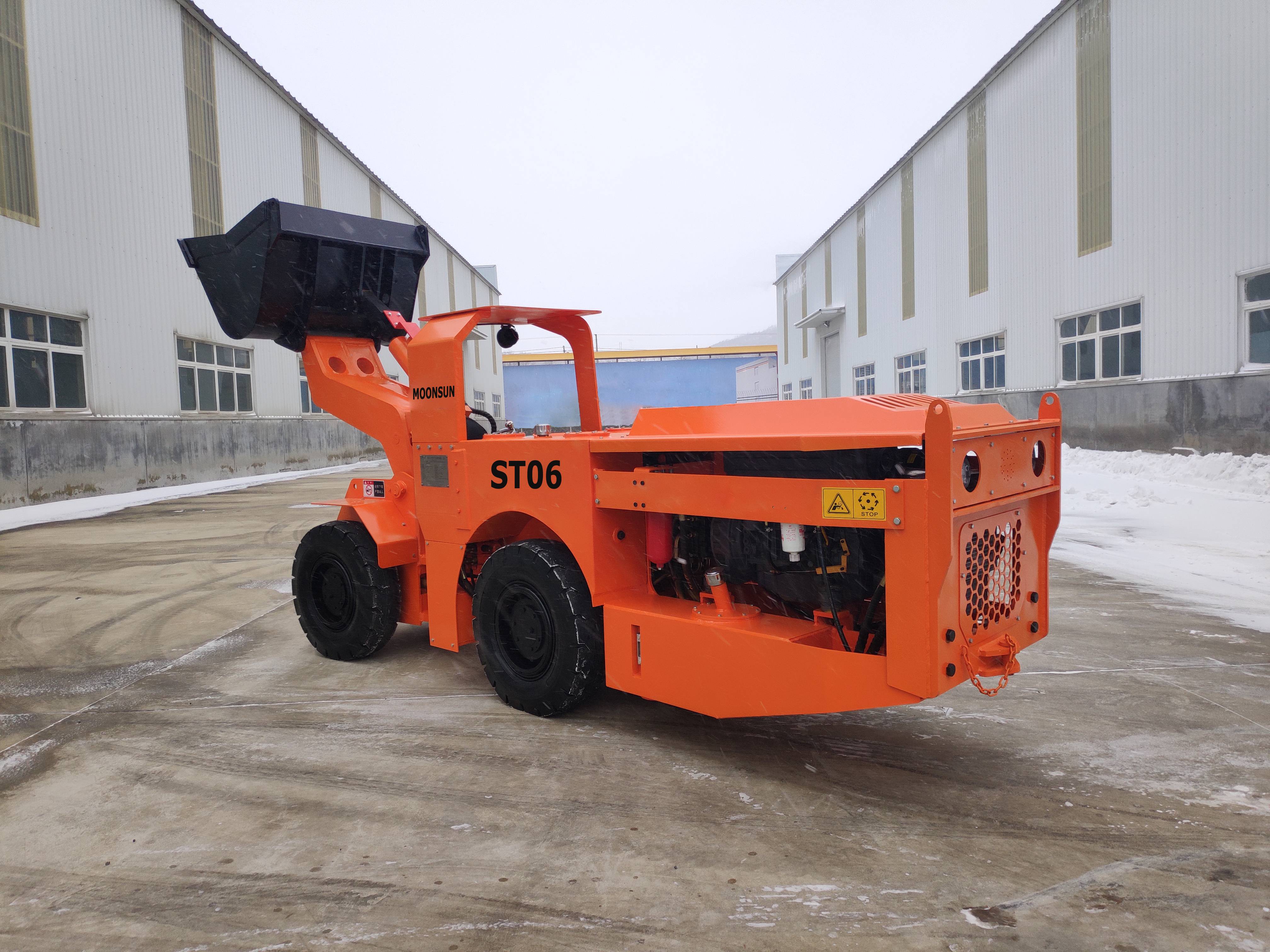

Model   ST06

Brand   MOONSUN

MAIN SPECIFICATION

Operating weight    5200kg

Rated load capacity    1200kg

Bucket capacity   0.6cbm

Overall dimensions(LxWxH)   5050x1150x1950mm

Max lift height   2600mm

Max dump height   900mm

Ground clearance   220mm

Turning radius   1950mm/3400mm

Max traveling speed   8km/h

Boom raising time   ≤2.5s

Boom lowering time   ≤1.8s

Dumping time   ≤2.1s

Travel speed   0-8.0km/h

Transmission type   Hydraulic

Pump   DANFOSS T90

Motor   SAUER MV23

Valve   CHANGJIANG ZL20E

Working Voltage   24V

Battery   12V*2

Max breakout force   35Kn

Max traction force   40Kn

Gradeability   20°

Tire size   7.50-15

Hydraulic oil tank capacity   62L

ENGINE

Engine model   DEUTZ (BF4L2011)

Engine power   47.5kw

Engine rated speed   2300r/min

Engine type   In-line water-cooling 4-stroke 6 cylinder direct-injection

Fuel oil tank capacity   65L

Start type   Electric
