Engine model   DEUTZ (BF6M1013EC) 165kw

Operating weight    17600kg

Rated load capacity    7000kg

Bucket capacity   3.0cbm

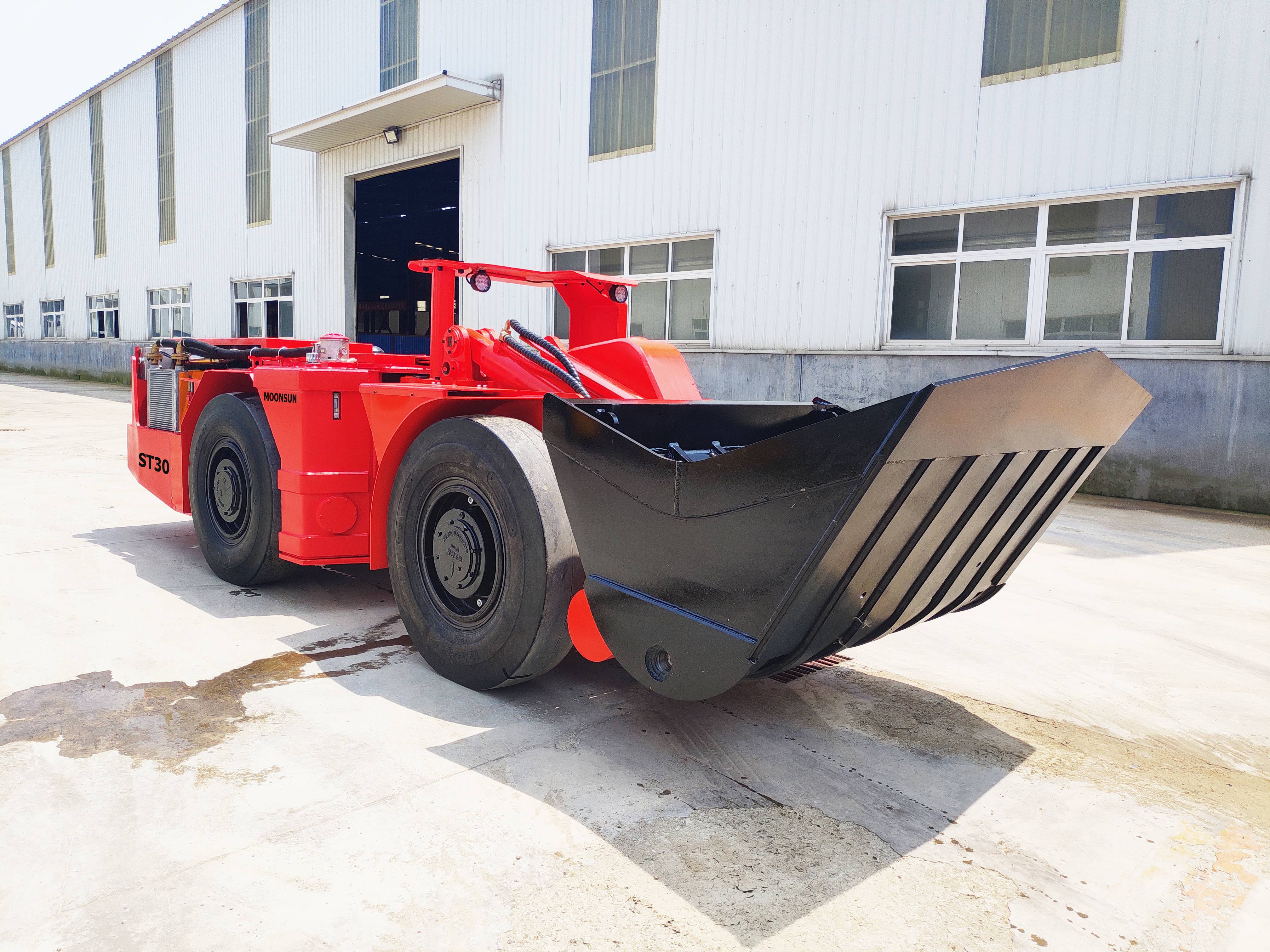

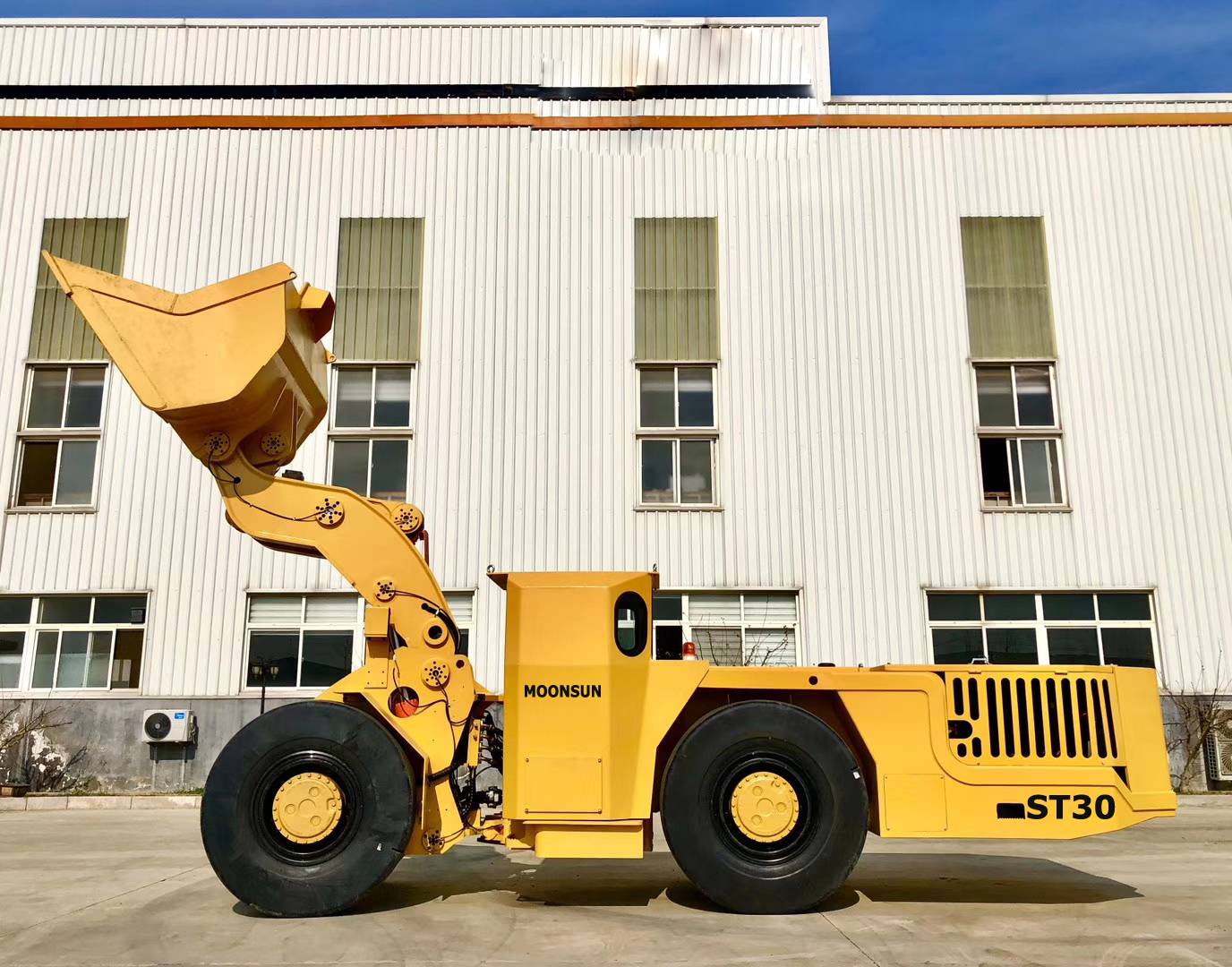

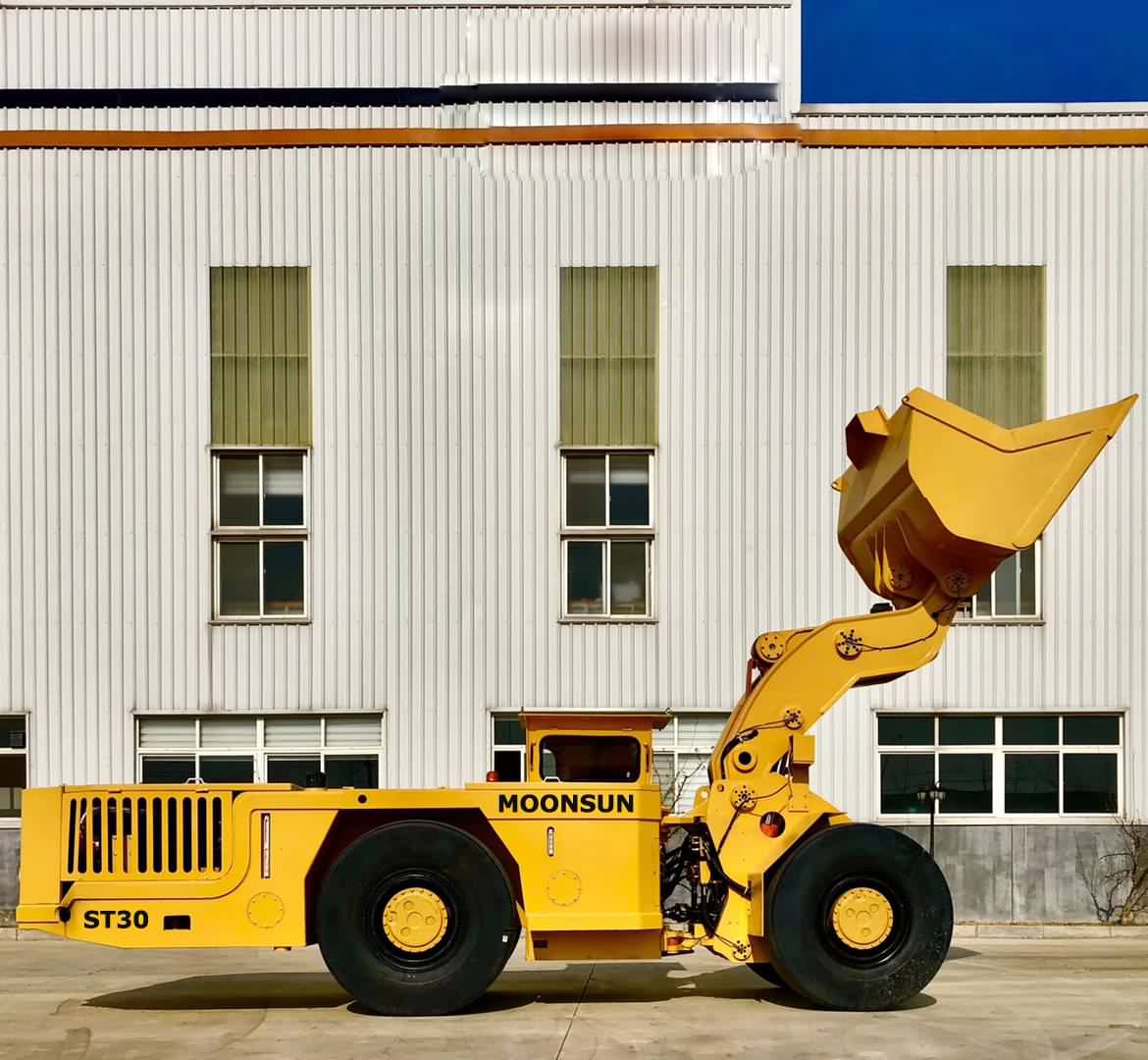

Model   ST30

Brand   MOONSUN

MAIN SPECIFICATION

Operating weight    17600kg

Rated load capacity    7000kg

Bucket capacity   3.0cbm

Overall dimensions(LxWxH)   9044x2107x2080mm

Max lift height   4935mm

Max dump height   1810mm

Max dump angle   45°

Wheel base   3184mm

Ground clearance   315mm

Turning radius   3569mm/6425mm

Boom raising time   ≤7.0s

Boom lowering time   ≤3.2s

Dumping time   ≤4.7s

Travel speed   I: 0-4.7km/h ; II: 0-9.4km/h ; III: 0-18.4km/h

Transmission type   Hydraulic Germany DANA

Pump   Germany Rexroth

Valve   USA PARKER

Working Voltage   24V

Battery   12V*2

Max breakout force   85Kn

Max traction force   104Kn

Gradeability   20°

Axle   Germany DANA

Tire size   12.00-24 PR16 L-4S

Hydraulic oil tank capacity   180L

ENGINE

Engine model   DEUTZ (BF6M1013EC)

Engine power   165kw

Engine rated speed   2200r/min

Engine type   In-linewater-cooling4-stroke6 cylinderdirect-injection

Fuel oil tank capacity   180L

Start type   Electric
