4ton

LAIDONG engine 34KW

0.20m3 bucket

MOONSUN(Rexroth design) pump

MOONSUN(Rexroth design) valve

MOONSUN(Rexroth design) swing motor

Liufeng 5ton axle

English monitor

Radio

USB all LED light

Overall dimension: 4450x1650x2460mm

SPECIFICATION

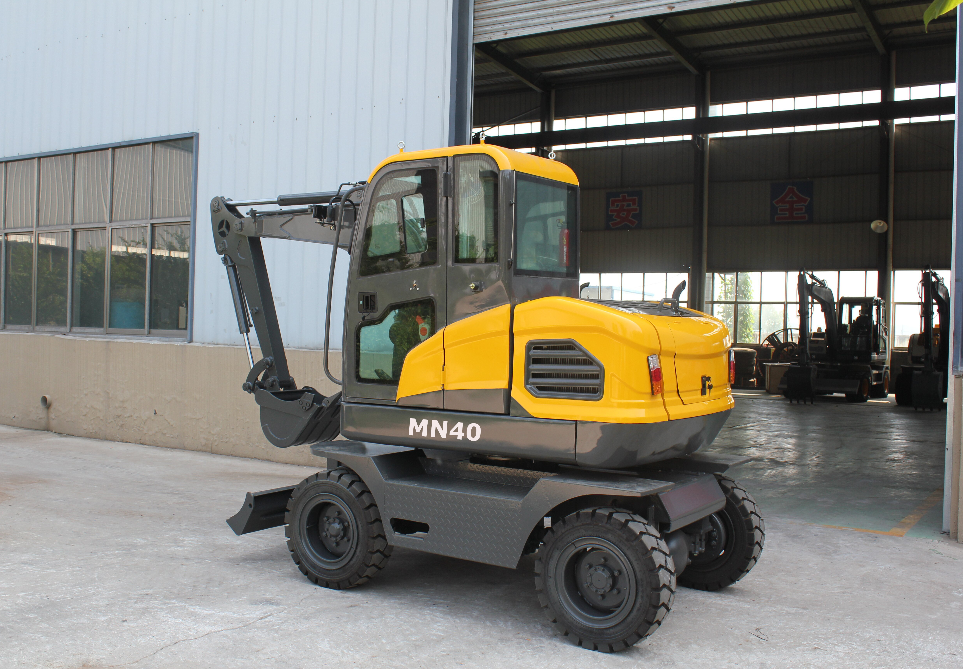

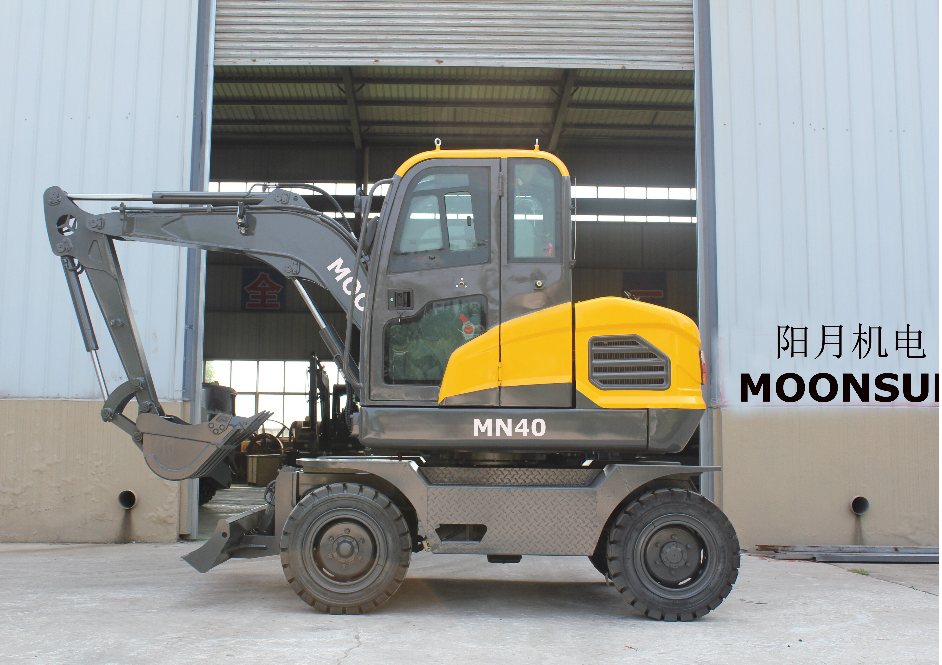

Model   MN40

Brand   MOONSUN

Operating weight    9.0T

Overall dimension   4450x1650x2460mm

Bucket capacity    0.20cbm

Engine    LAIDONG(490)

Engine rated power/speed    34kw/2200 rpm

Engine type    Diesel 4 cylinders in line

Displacement   2.635L

Voltage of start motor   12V

Starting type   ELECTRIC

Hydraulic main pump   MOONSUN(Rexroth design)

Hydraulic system pressure    22MPa

Hydraulic system flow    90L/Min

Valve   MOONSUN(Rexroth design)

Swing motor   MOONSUN(Rexroth design)

Swing speed    9.5r/min

Axle and Transmission   LIUFENG

Travel speed    F:1 2 3 4 1-30km/h ; R:11-15km/h

Sealing parts   USA PARKER

Bucket digging force    46Kn

Arm digging force    31Kn

Grade ability    35 Degree

Working fuel consumption   6.2L/h

Diesel oil tank capacity   30L

Engine oil tank capacity   8L

Hydraulic oil tank capacity   30L

Cooling fluid tank capacity   12L

Boom length   2400mm

Arm length   1250mm

Platform rear turning radius    1536mm

Chassis ground clearance   2288mm

Platform ground clearance   650mm

Steering width   1500mm

Wheel tread   1240mm

Max Digging height   4670mm

Max Dumping height   3060mm

Max Digging depth   2550mm

Max Digging radius   4655mm

Min Turning radius   1220mm

Push plate lift height   268mm

Push plate size   1550*345mm

Packing way   One 40HC load three units

Passed certificates   CE ISO

Can add accessories   narrow bucket grabber hammer auger quick hitch
