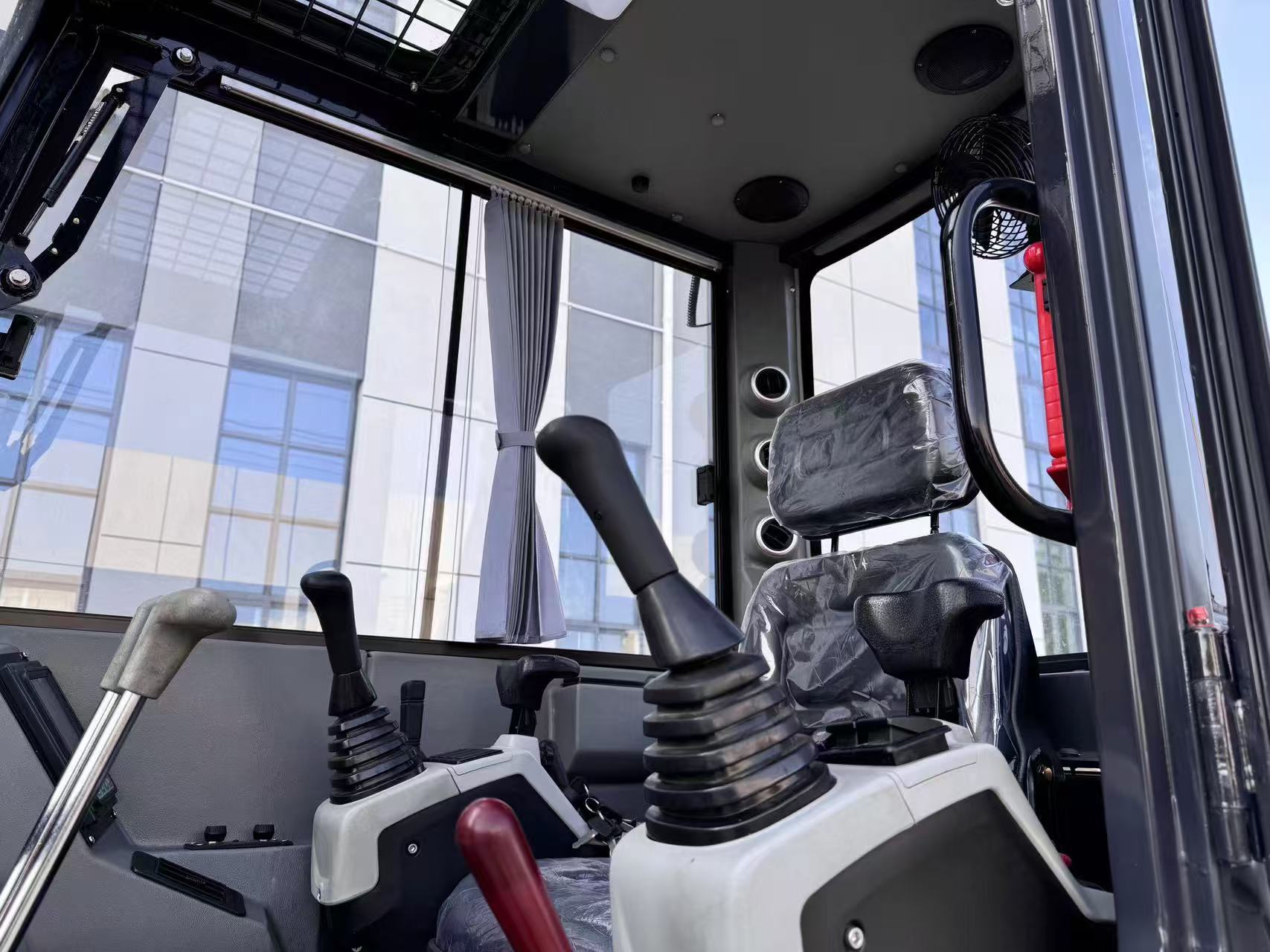

3.5TON WITH SWING BOOM HYDRAULIC PILOT CONTROL CAN USE YANMAR/XINCHAI/CHANGCHAI ENGINE STANDARD WITH THE SWING BOOM CAN ADD THE EXTENDED TRACKS.

SPECIFICATION

Model   MN35

Brand   MOONSUN

Operating Weight    3500kg

Digging bucket capacity    0.10cbm

Digging bucket width   600mm

Engine   Yanmar（3TNV88）/XINCHAI(490)

Rated power   19.6/36.8kw 2400r/min

Displacement   2.226L

Bore stroke   three cylinder/four cylinder water cool

Main pump   TAIFENG

Pump flow   30L/Min

Hydraulic oil tank capacity   60L

Engine oil tank capacity   9.5L

Diesel tank capacity   55 L

Valve   TAIFENG

Swing motor    EATON

Traveling motor   EATON

MAIN DEMENSIONS

Overall dimension( LxWxH)   4200x1500x2150mm

Wheelbase   1530mm

Total length of track   1950mm

Upper chassis ground clearance   550mm

Counterweight turning radius   1025mm

Track width   300mm

Chassis ground clearance   485mm

Bucket digging force   30kn

Arm digging force   22kn

Theoretical Maximum traction   17.5Kn

Track height   455mm

Swing boom to left   539mm

Swing boom to right   477mm

OPERATING RANGE

Max. Digging depth   2550mm

Max. Digging height   4000mm

Max. Dumping height   2700mm

Max. Digging radius on ground   4100mm

Min. Rotation radius   1820mm

Max. Upgrade height of bulldozer blade   257mm

Max. Digging depth of bulldozer blade   413mmv
