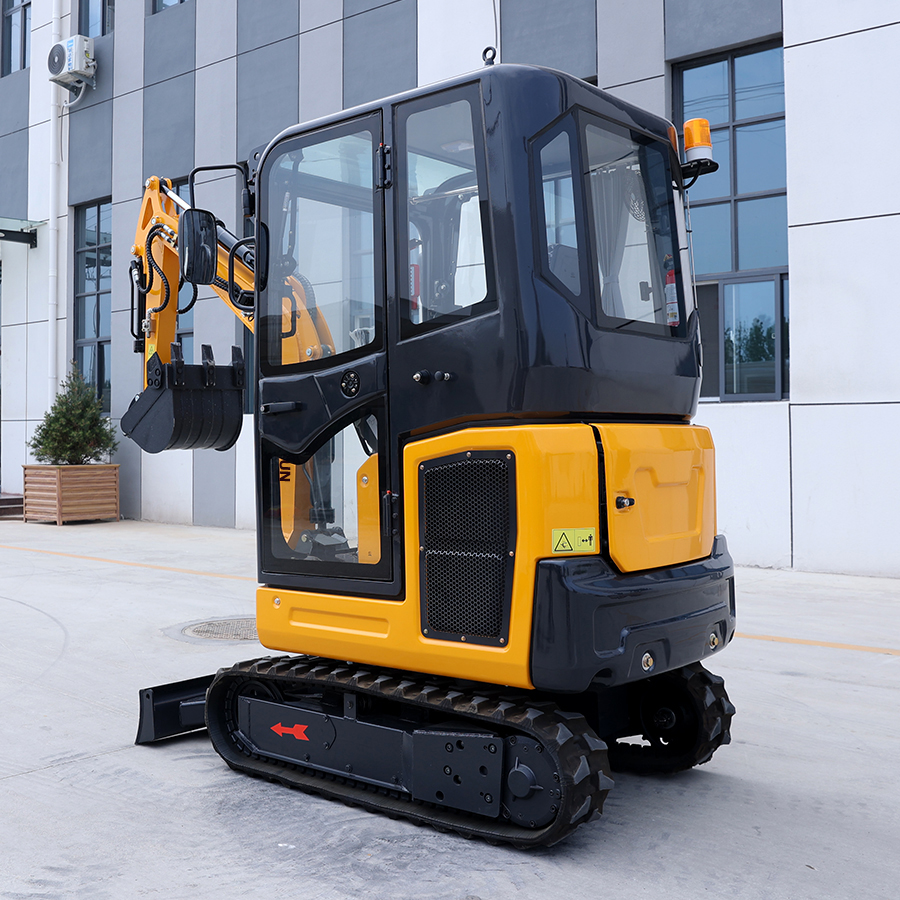

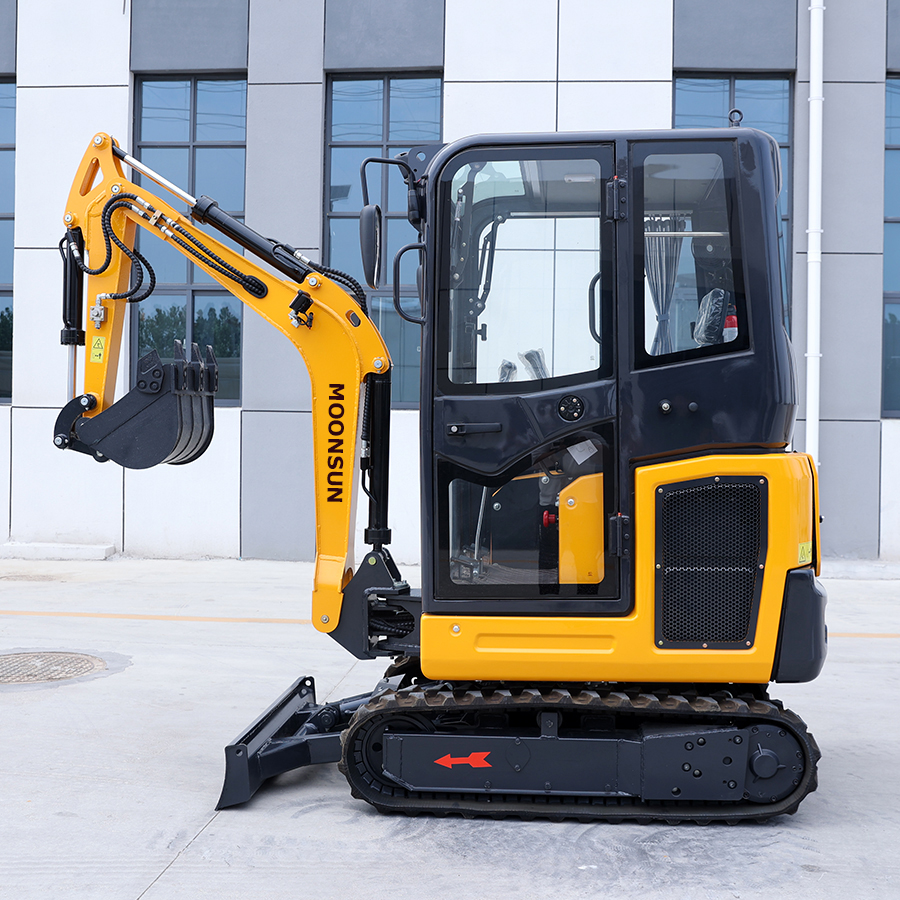

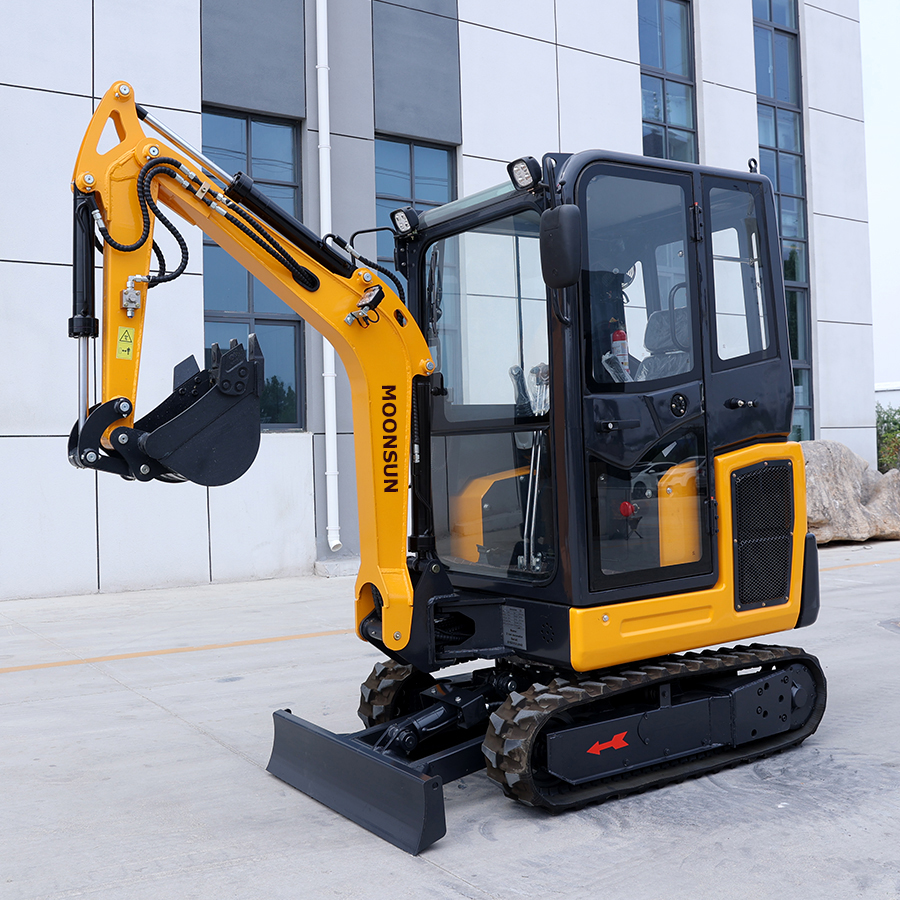

2.3TON WITH SWING BOOM HYDRAULIC PILOT CONTROL CAN USE YANMAR AND LAIDONG ENGINE STANDARD WITH THE SWING BOOM CAN ADD THE EXTENDED TRACKS.

SPECIFICATION

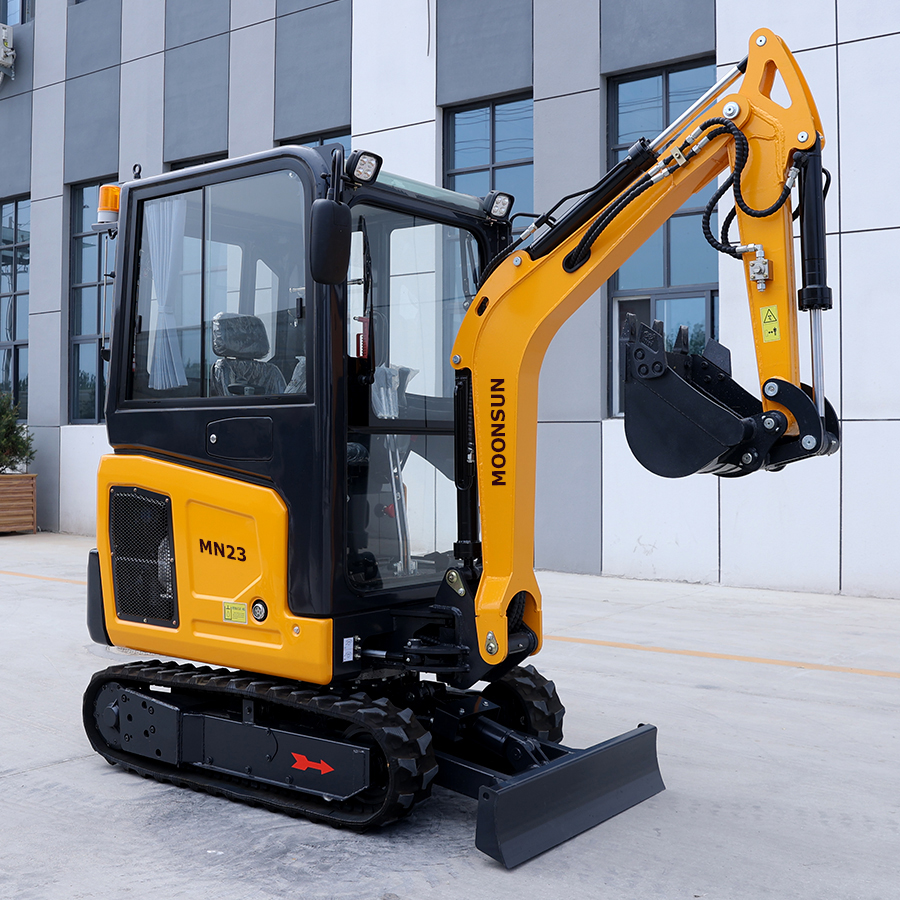

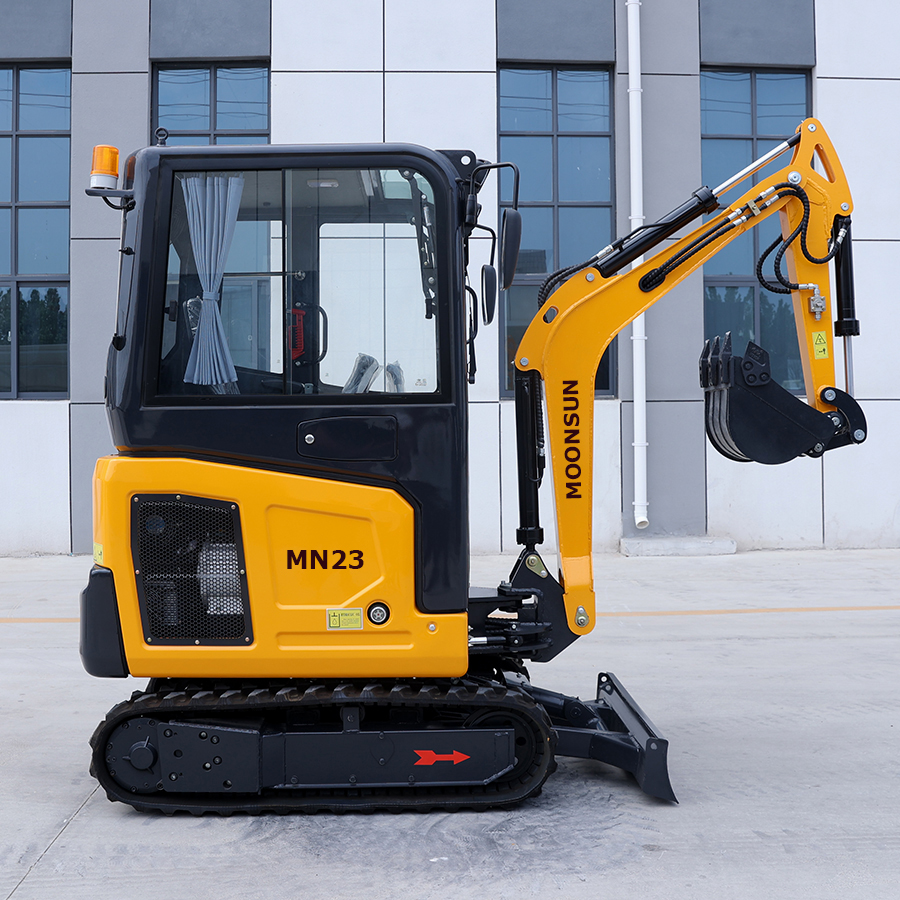

Model   MN23

Brand   MOONSUN

Operating Weight    2300kg

Digging bucket capacity    0.06cbm

Digging bucket width   500mm

Engine   EURO5&EPA4 Yanmar（3TNV80F）/lAIDONG(KM385)

Rated power   15.2/17.7kwkw 2400r/min

Displacement   1.813L

Bore stroke   three cylinder water cool

Main pump   TAIFENG

Pump flow   39.6L/Min

Hydraulic oil tank capacity   25L

Engine oil tank capacity   2.8(1.3)L

Diesel tank capacity   30 L

Valve   TAIFENG

Swing motor    EATON

Traveling motor   EATON

MAIN DEMENSIONS

Overall dimension( LxWxH)   3850x1400/1060x2380mm

Wheelbase   1440mm

Total length of track   1892mm

Upper chassis ground clearance   535mm

Counterweight turning radius   885mm

Track width   250mm

Chassis ground clearance   465mm

Bucket digging force   21kn

Arm digging force   12.5kn

Theoretical Maximum traction   17.5Kn

Track height   455mm

Swing boom to left   539mm

Swing boom to right   477mm

OPERATING RANGE

Max. Digging depth   2420mm

Max. Vertical digging depth   2160mm

Max. Digging height   3400mm

Max. Dumping height   2480mm

Max. Digging radius on ground   3920mm

Min. Rotation radius   1120mm

Max. Upgrade height of bulldozer blade   257mm

Max. Digging depth of bulldozer blade   413mmv
