6ton YANMAR (4TNV94L) engine 36.8kw South Korea DOOSAN pump and valve USA EATON swing motor South Korea JEIL traveling motor A/C cab Grammer seat Large color monitor Radio USB 0.22m3 bucket Overall dimension: 5960x1960x2550mm .

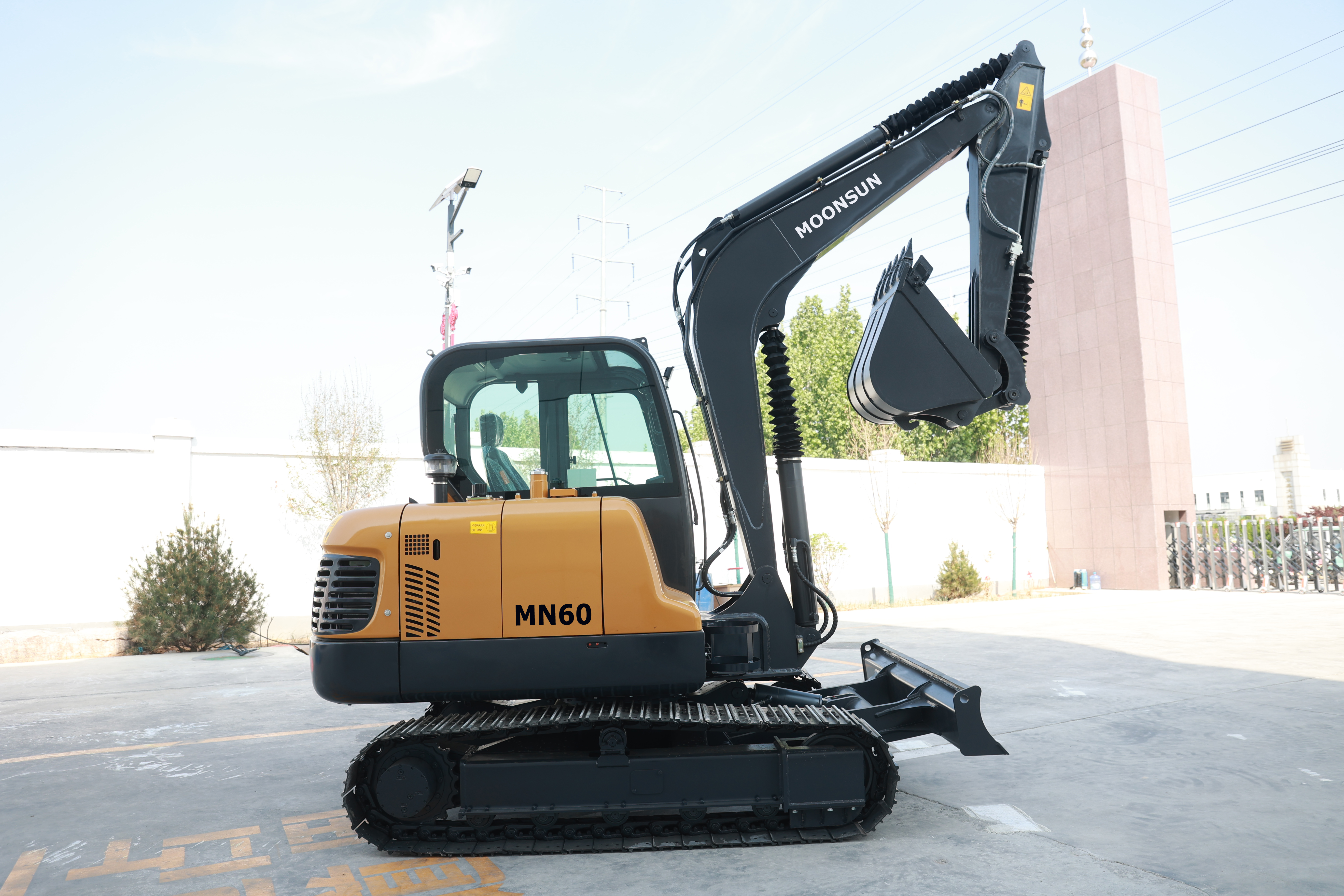

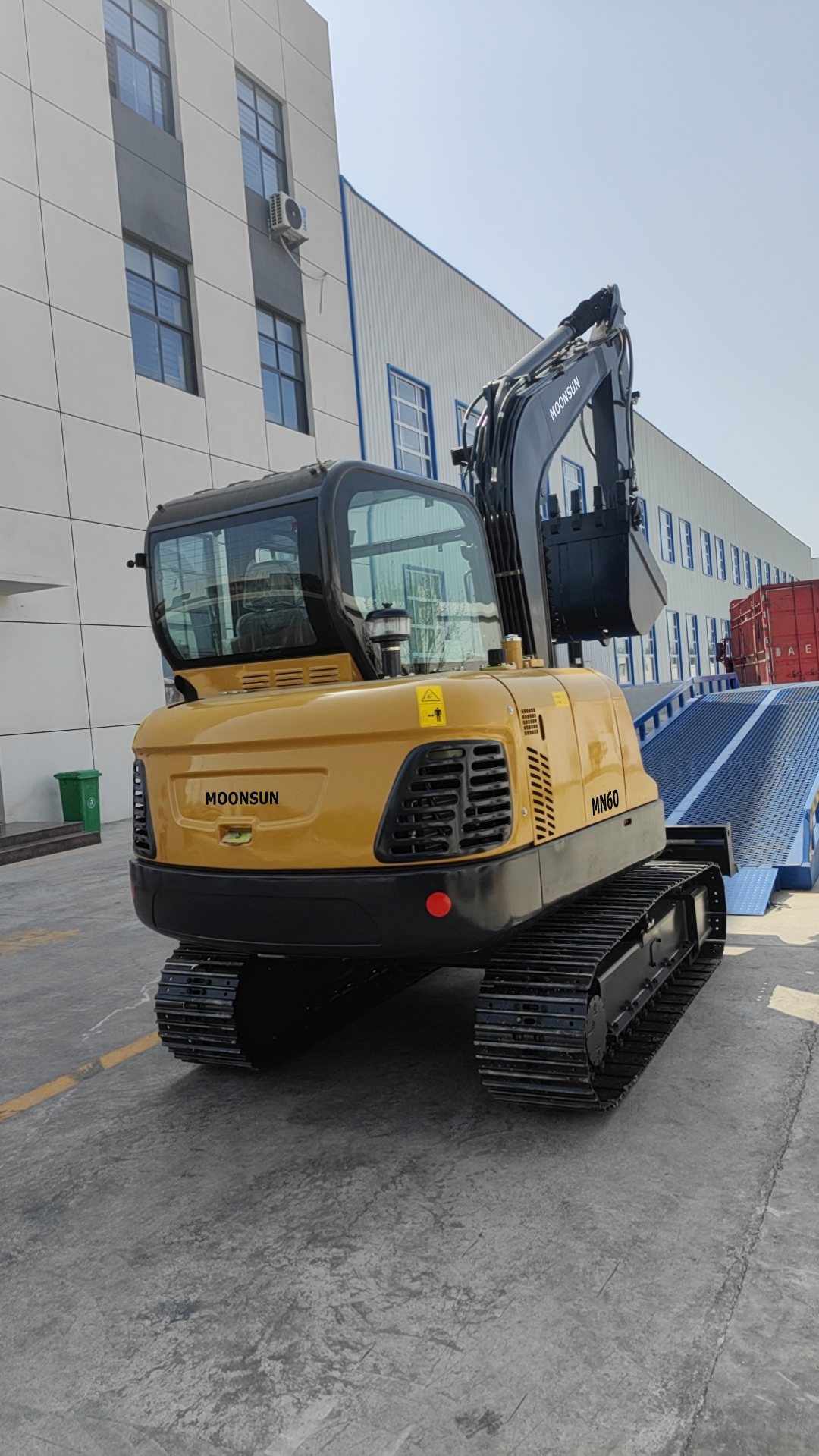

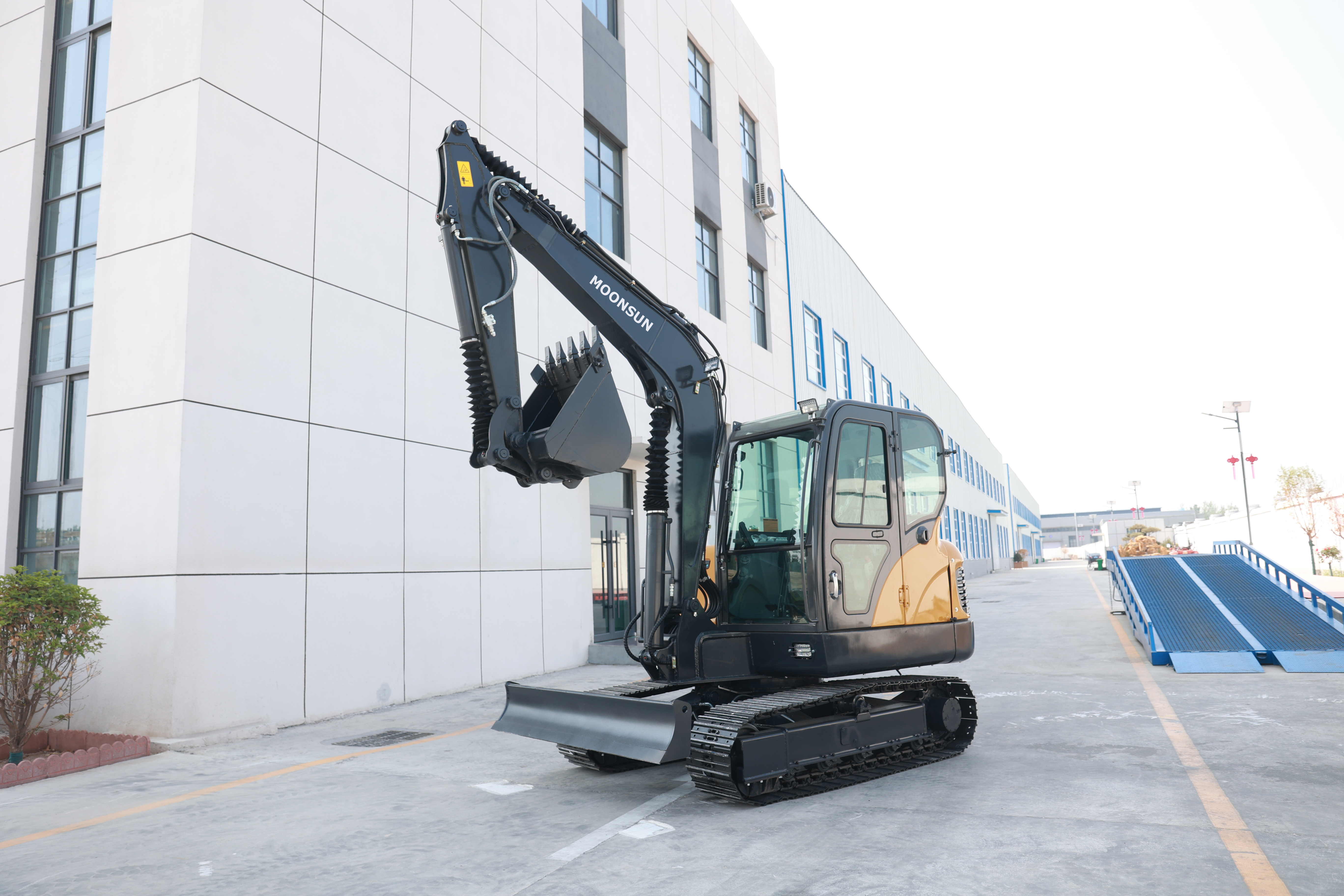

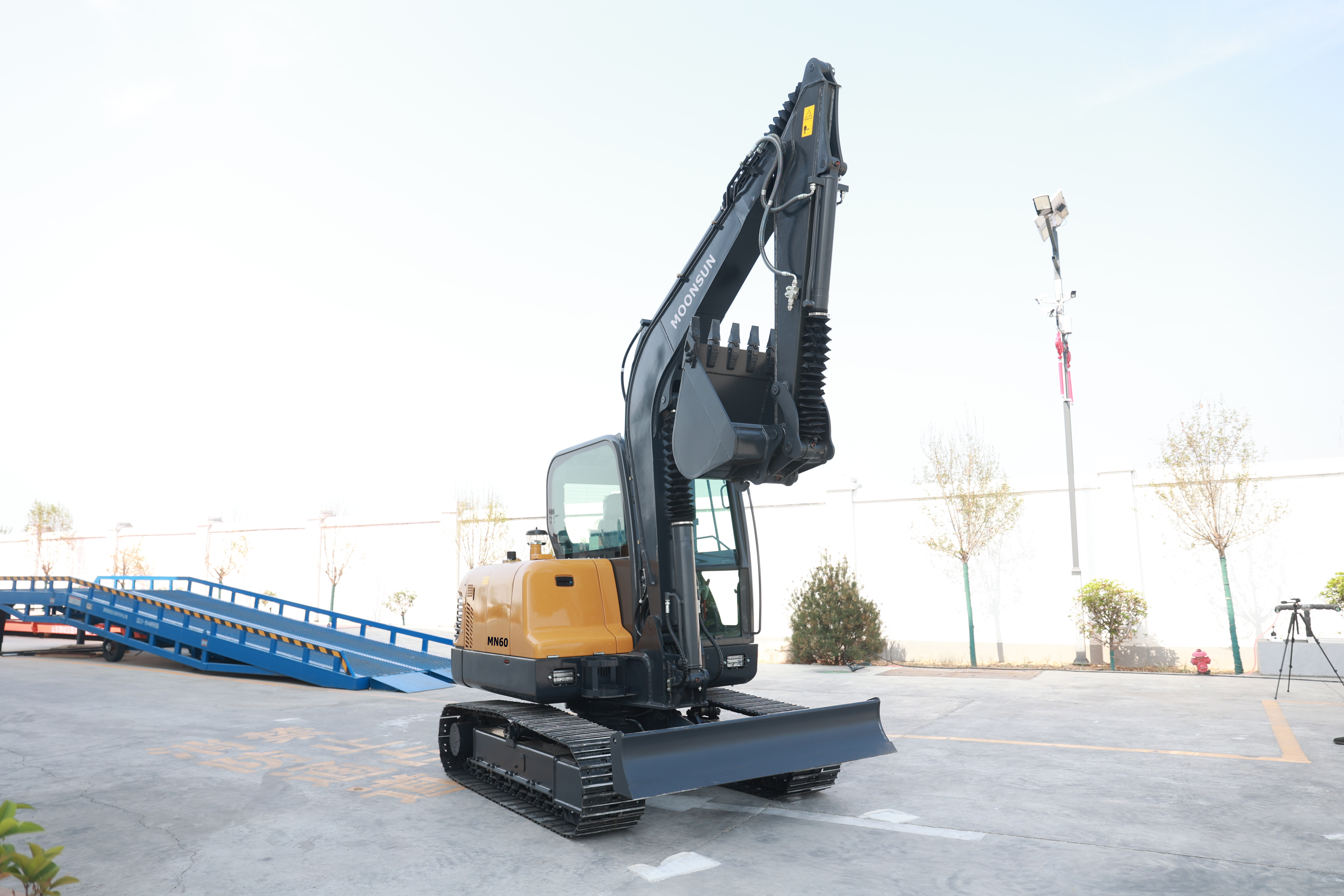

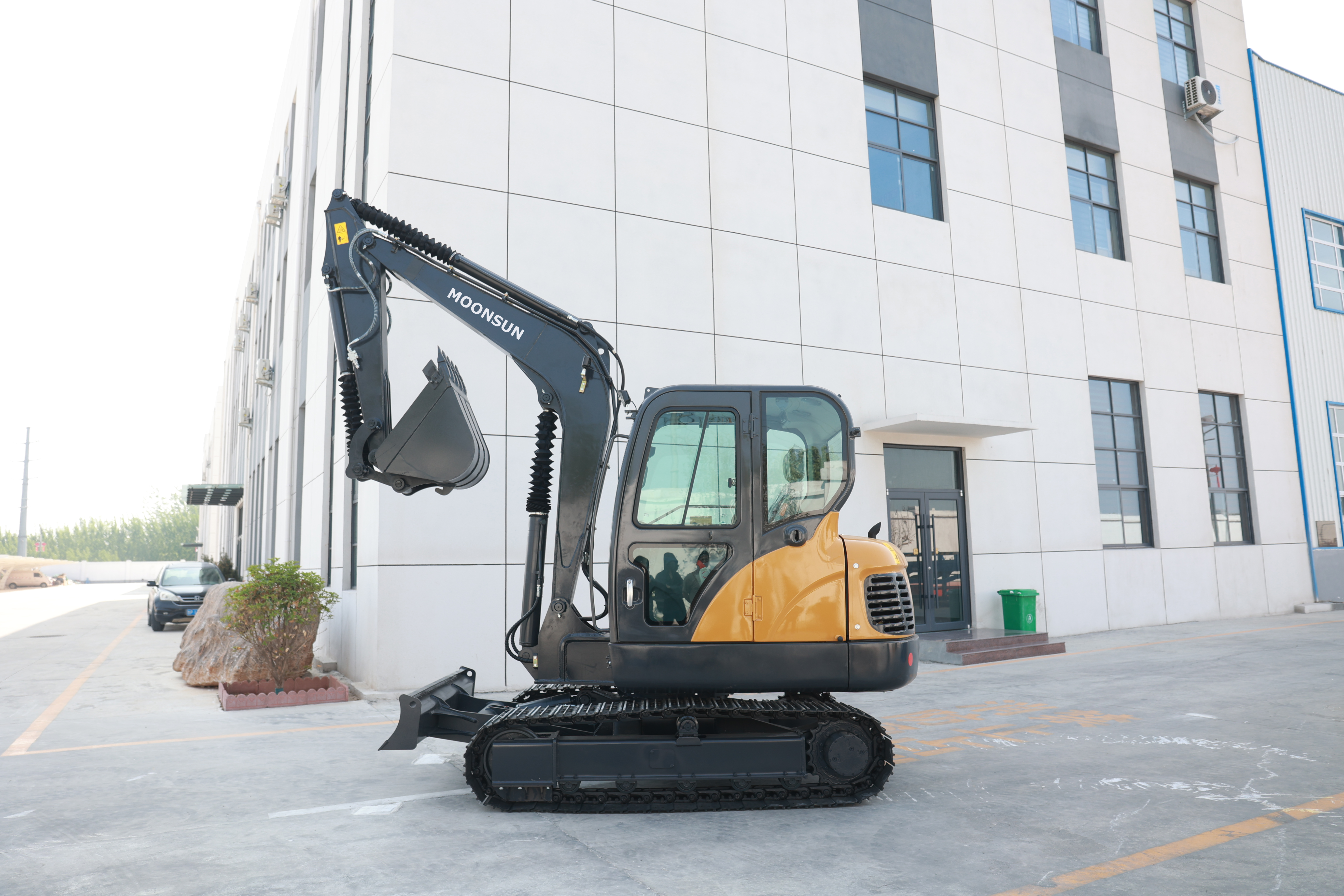

Model   MN60

Brand   MOONSUN

Operating weight    6T

Overall dimension   5960x1960x2650mm

Bucket capacity    0.22cbm

Engine    YANMAR (4TNV94L)

Engine rated power/speed    36.8kw/2200rpm

Engine type   Diesel 4 cylinders in line

Voltage of start motor   12V

Starting type   ELECTRIC

Hydraulic main pump   South Korea DOOSAN

Hydraulic system pressure    34.3MPa

Hydraulic system flow    145L/Min

Valve   South Korea DOOSAN

Swing motor   USA EATON

Swing speed    9.5r/min

Travel motor   South Korea JEIL

Travel speed    high 4.0km/h low 2.0km/h

Bucket digging force    39Kn

Arm digging force    31Kn

Grade ability    70 Degree

Working fuel consumption   6.5L/h

Diesel oil tank capacity   100L

Engine oil tank capacity   10L

Hydraulic oil tank capacity   80L

Cooling fluid tank capacity   20L

Boom length   3000mm

Arm length   1630mm

Platform rear turning radius   1520mm

Chassis ground clearance   360mm

Platform ground clearance   700mm

Track length on the ground   2000mm

Track length   2560mm

Track shoe width   400mm

Steering width   1960mm

Max Digging height    5750mm

Max Dumping height    3980mm

Max Digging depth    3860mm

Max Vertical digging depth   3040mm

Max Digging radius    6170mm

Min Turning radius   2380mm

Counter weight height   1685mm

Standard machine with A/C   AC

Packing way   One 40 frame container load two unit

Passed certificates   CE ISO

Can add accessories   narrow bucket grabber hammer auger quick hitch
