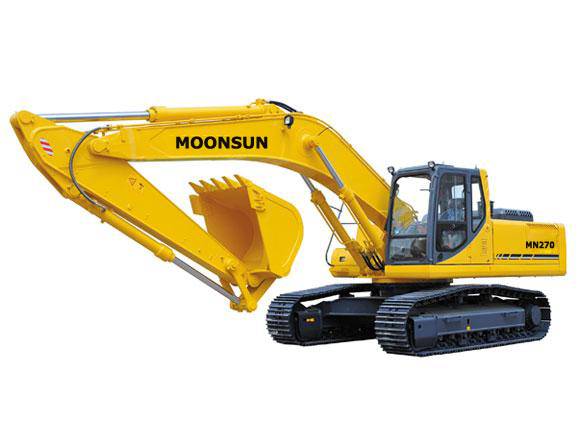

27ton CUMMINS( 6BTAAB5.9) engine 133kw Japan Kawasaki pump and valve and swing motor Japan KYB traveling motor A/C cab Grammer seat Large color monitor Radio USB 1.30m3 bucket Overall dimension: 9850x3190x3500mm

Model   MN270

Brand c  MOONSUN

Operating weight    27T

Overall dimension   9850x3190x3500mm

Bucket capacity    1.30cbm

Engine    CUMMINS( 6BTAAB5.9)

Engine rated power/speed    133kw/2000rpm

Engine type   Diesel 6 cylinders in line

Voltage of start motor   12V

Starting type   ELECTRIC

Hydraulic main pump   Japan Kawasaki

Hydraulic system pressure    34.3MPa

Hydraulic system flow    226x2L/Mi

n Valve   Japan Kawasaki

Swing motor   Japan Kawasaki

Swing speed    10.5r/min

Travel motor   Japan KYB

Travel speed    high 4.1km/h ; low 2.5km/h

Bucket digging force    206Kn

Arm digging force    143Kn

Grade ability    70 Degree

Ground pressure   56KPa

Working fuel consumption   14.5L/h

Diesel oil tank capacity   350L

Engine oil tank capacity   36L

Hydraulic oil tank capacity   246L

Cooling fluid tank capacity   120L

Boom length   5850mm

Arm length   3050mm

Platform rear turning radius   2910mm

Chassis ground clearance   520mm

Platform ground clearance   1080mm

Track length on the ground   3715mm

Track length   4625mm

Track shoe width   600mm

Track shoe thickness  11mm

Steering width   2700mm

Max Digging height    9370mm

Max Dumping height    6580mm

Max Digging depth    6880mm

Max Vertical digging depth   5890mm

Max Digging radius    10170mm

Min Turning radius   3975mm

Counter weight height v2165mm

Standard machine with A/C   AC

Packing way   One 40 frame container load one unit

Passed certificates   CE ISO

Can add accessories  quick hitch hammer
