24ton CUMMINS(QSB7)/ISUZU(4HK1) engine 124kw/133kw Japan Kawasaki pump and valve and swing motor Japan KYB traveling motor A/C cab Grammer seat Large color monitor Radio USB 1.20m3 bucket Overall dimension: 9850x2980x3135mm

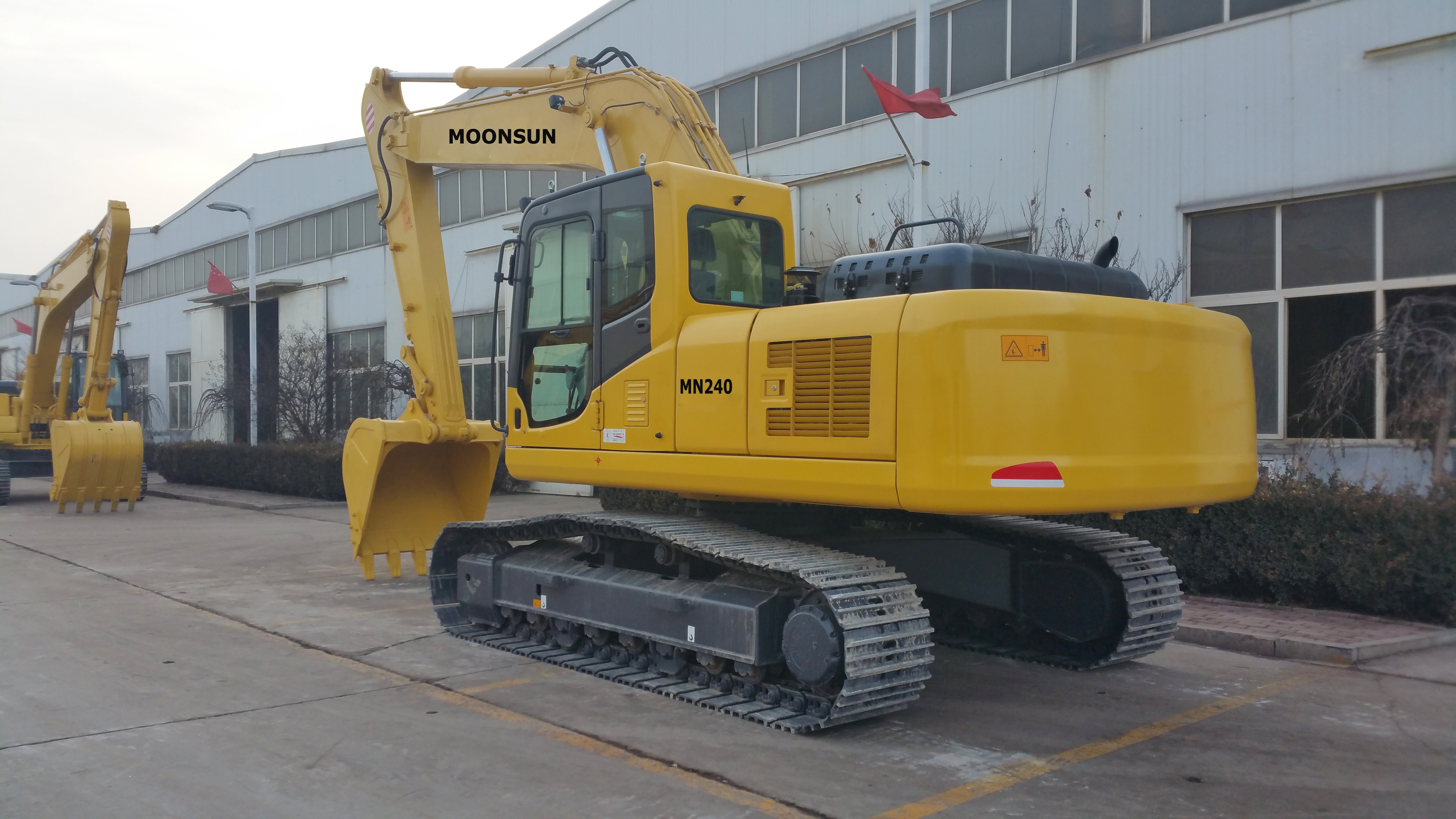

Model   MN240

Brand   MOONSUN

Operating weight    24T

Overall dimension   9850x2980x3135mm

Bucket capacity    1.20cbm

Engine    CUMMINS(QSB7)/ISUZU(4HK1)

Engine rated power/speed    124kw/2050rpm/133kw/2000rpm

Engine type   Diesel 6 cylinders in line

Voltage of start motor   12V

Starting type   ELECTRIC

Hydraulic main pump   Japan Kawasaki

Hydraulic system pressure    34.3MPa

Hydraulic system flow    226x2L/Min

Valve   Japan Kawasaki

Swing motor   Japan Kawasaki

Swing speed    11.1r/min

Travel motor   Japan KYB

Travel speed    3.2km/h

Bucket digging force    159Kn

Arm digging force    112Kn

Grade ability    70 Degree

Ground pressure   48.6KPa

Working fuel consumption   14.2L/h

Diesel oil tank capacity   350L

Engine oil tank capacity   36L

Hydraulic oil tank capacity   246L

Cooling fluid tank capacity   120L

Boom length   5850mm

Arm length   3050mm

Platform rear turning radius    2810mm

Chassis ground clearance   440mm

Platform ground clearance   1065mm

Track length on the ground   3640mm

Track length   4460mm

Track shoe width   600mm

Track shoe thickness   10mm

Steering width   2700mm

Max Digging height    9310mm

Max Dumping height    6580mm

Max Digging depth    6875mm

Max Vertical digging depth   5880mm

Max Digging radius    10170mm

Min Turning radius   3975mm

Counter weight height   2120mm

Standard machine with A/C   AC

Packing way   One 40 frame container load one unit

Passed certificates   CE ISO

Can add accessories   quick hitch hammer
