13.2ton CUMMINS (B3.9-C120) engine 86kw Japan Kawasaki pump and valve and swing motor Japan KYB traveling motor A/C cab Grammer seat Large color monitor Radio USB 0.6m3 bucket Overall dimension: 7580x2490x2780mm

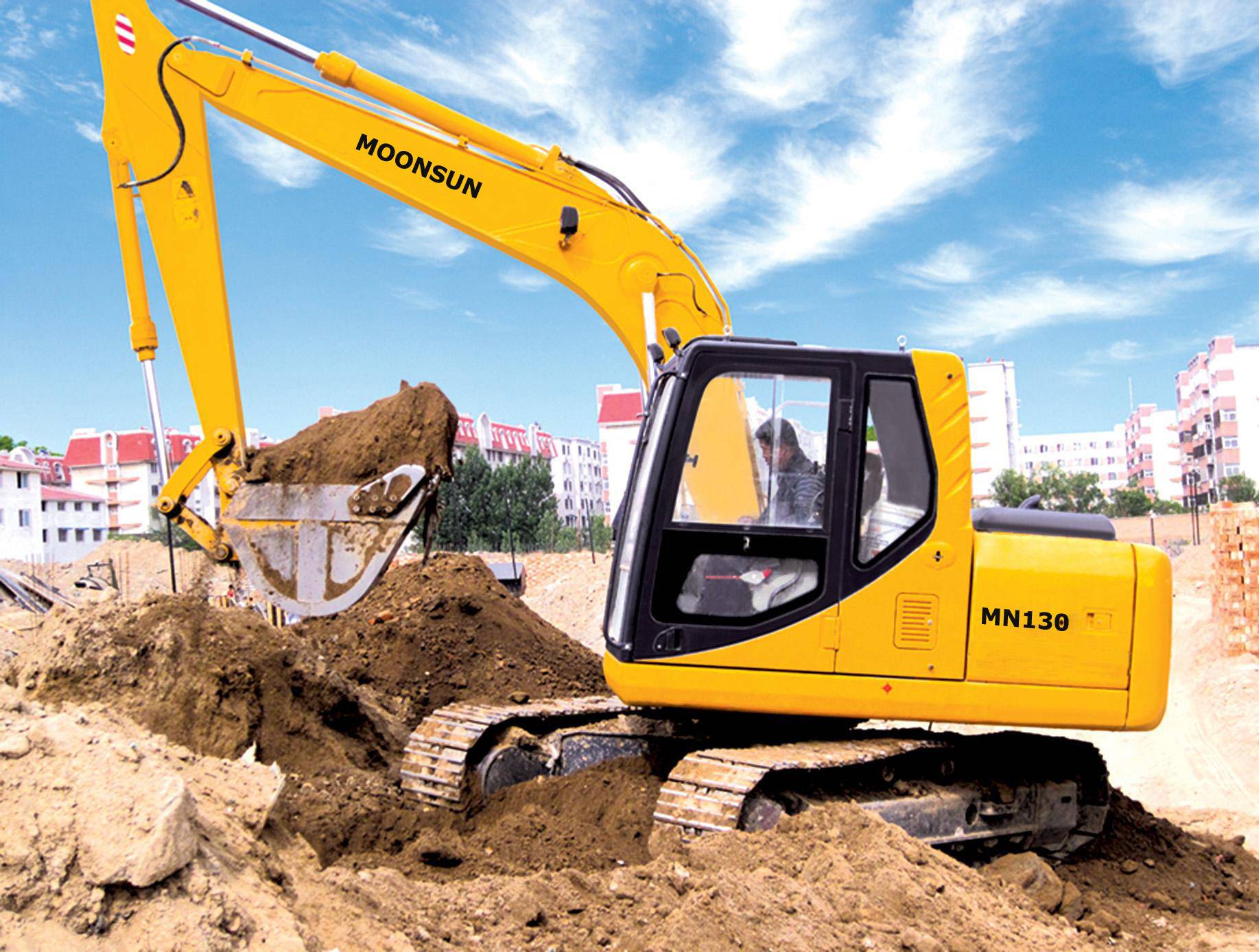

Model   MN130

Brand   MOONSUN

Operating weight    13.2T

Overall dimension   7580x2490x2780mm

Bucket capacity    0.6cbm

Engine    CUMMINS (B3.9-C120)

Engine rated power/speed    86kw/2200rpm

Engine type   Diesel 4 cylinders in line

Voltage of start motor   12V

Starting type   ELECTRIC

Hydraulic main pump   Japan Kawasaki

Hydraulic system pressure    34.3MPa

Hydraulic system flow    128x2L/Min

Valve   Japan Kawasaki

Swing motor   Japan Kawasaki

Swing speed    12.1r/min

Travel motor   Japan KYB

Travel speed    high 4.6km/h low 2.4/km/h

Bucket digging force    90Kn

Arm digging force    69Kn

Grade ability    70 Degree

Ground pressure   38KPa

Working fuel consumption   12.5L/h

Diesel oil tank capacity   247L

Engine oil tank capacity   25L

Hydraulic oil tank capacity   130L

Cooling fluid tank capacity   65L

Boom length   4600mm

Arm length   2500mm

Platform rear turning radius    2155mm

Chassis ground clearance   433mm

Platform ground clearance   870mm

Track length on the ground   2750mm

Track length   3486mm

Track shoe width   500mm

Track shoe thickness   8mm

Steering width   2490mm

Max Digging height    8630mm

Max Dumping height    6180mm

Max Digging depth    5500mm

Max Vertical digging depth   4940mm

Max Digging radius    8350mm

Min Turning radius   2495mm

Counter weight height   1935mm

Standard machine with A/C   AC

Packing way   One 40 frame container load one unit

Passed certificates   CE ISO

Can add accessories   quick hitch hammer
