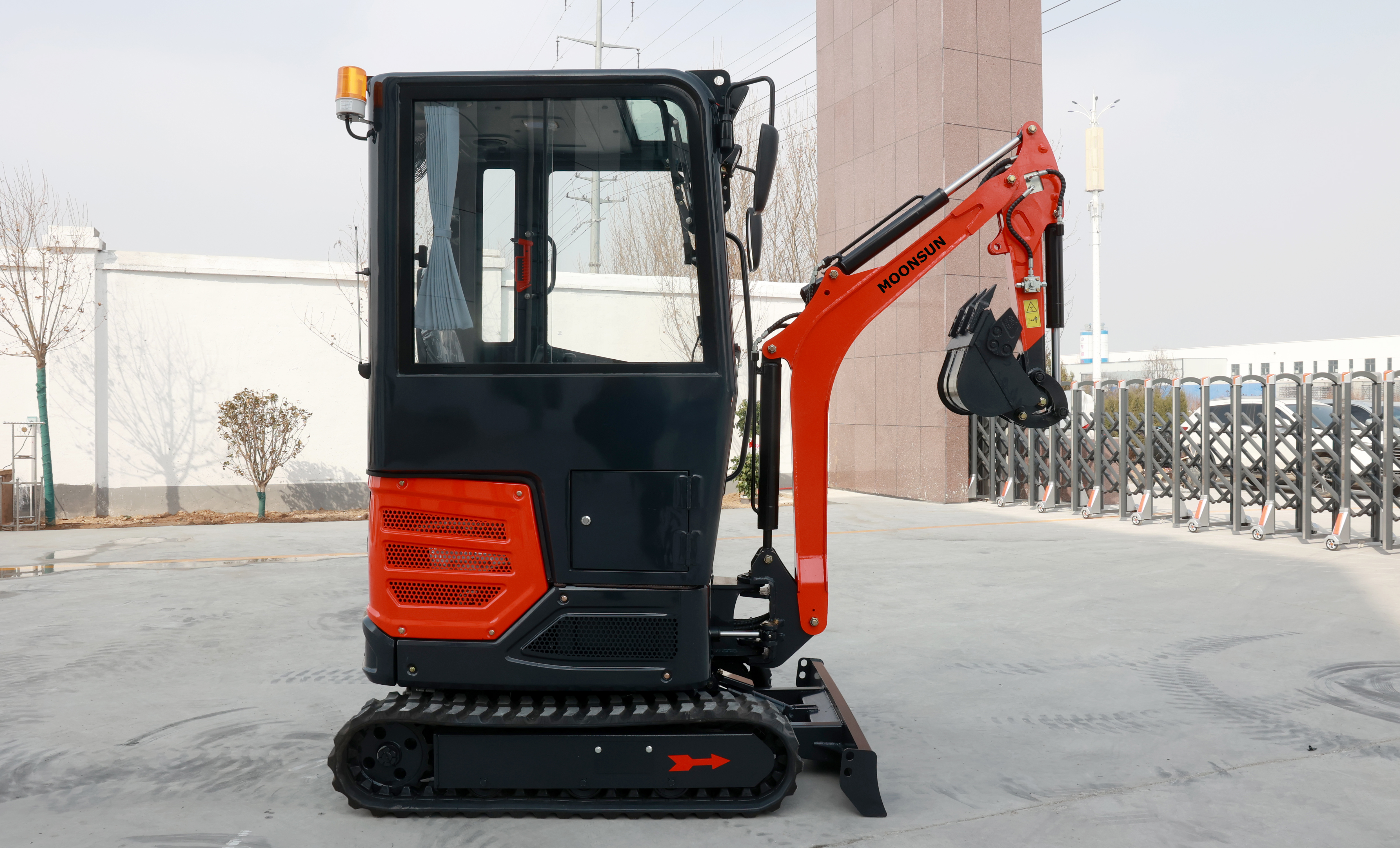

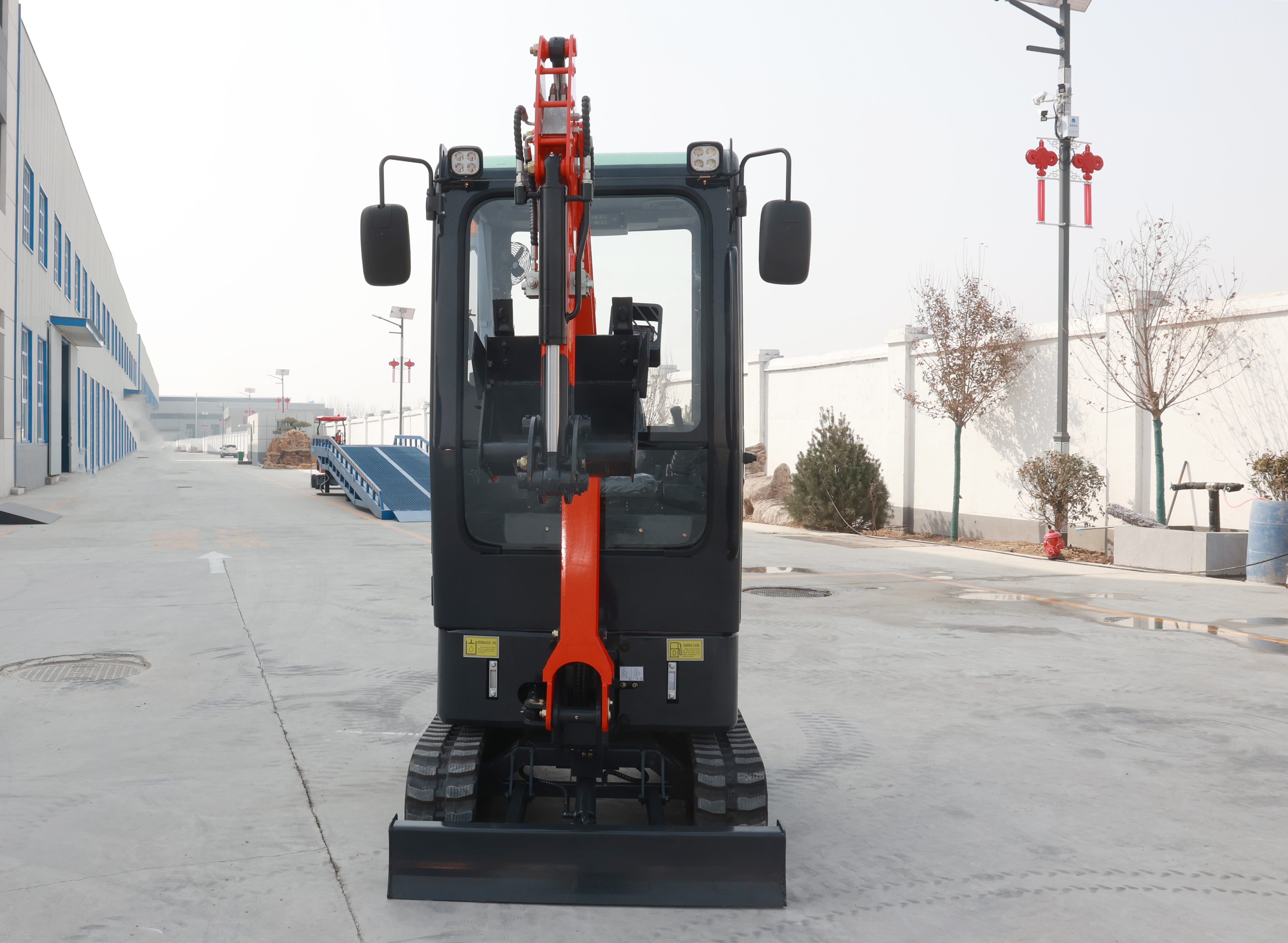

This excavator is designed for small project garden farmland municipal works etc also can be used in playground public park. It is with small engine simple design easy to maintain.

Use the EURO5/EPA4 Yanmar/Kubota engine USA EATON swing motor South Korea DONGHYUN travel motor TAIFENG pump and valve with swing boomwith closed cabin

Model   MN18

Brand   MOONSUN

Operating weight    1800kg

Overall dimension( LxWxH)   3160x1040x2377mm

Digging bucket capacity    0.045cbm

Digging bucket width   420mm width

Engine   YANMAR (3TNV70)/KUBOTA(D902)

Engine power   10.3kw/11.4kw

Engine type   Diesel three cylinder water cool

Egnine displacement   0.854L

Electric voltage   12V

Electric power   5W

Hydraulic main pump   TAIFENG

Hydraulic system pressure    39.6L/min

Hydraulic system flow   22Mpa

Valve   TAIFENG

Swing motor    USA EATON

Swing speed    10r/min

Traveling motor   SOUTH KOREA DONGHYUN

Traveling speed    2.5km/h

Sealing parts   USA PARKER

Arm digging force   6.5Kn

Bucket digging force   10.5Kn

Grade ability    30 Degree

Hydraulic oil tank capacity   15.3L

Engine oil tank capacity   2.8(1.3)L

Diesel tank capacity   19L

Max. Digging height   3275 mm

Max. Dumping height   2310 mm

Max. Digging depth   2150 mm

Max. Vertical digging depth   1740 mm

Max. Digging radius   3610 mm

Min. Turning radius   1580 mm

Ground clearance   350 mm

Track length   2120 mm

Track width   230 mm
