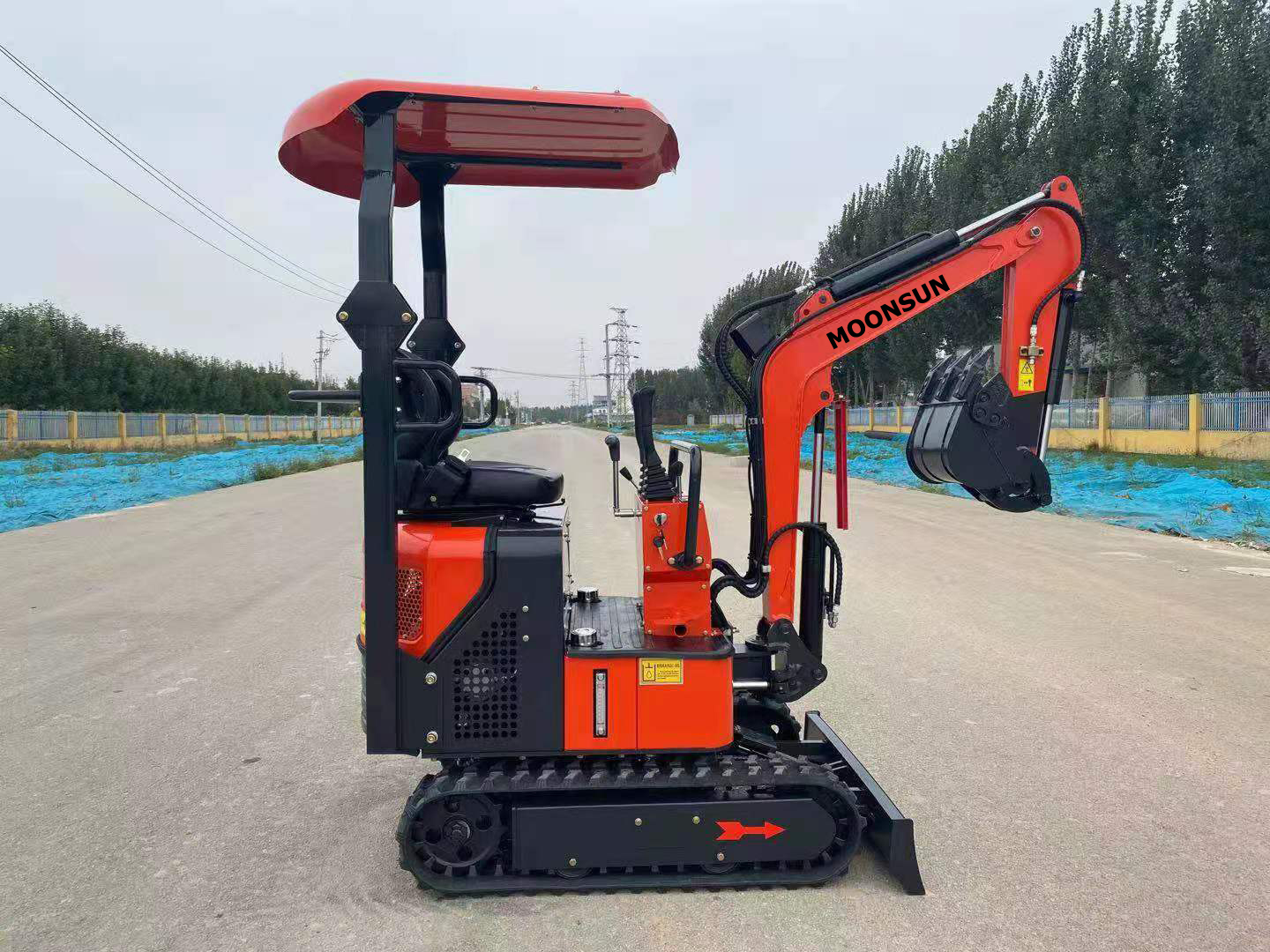

This excavator is designed for small project garden farmland municipal works etc also can be used in playground public park. It is with small engine simple design easy to maintain.

Use the EURO5/EPA4 Kubota and Yanmar enginWith swing boom and extended tracks USA EATON swing motor and travel motor BEIFANG valve SHUNSHENG pump.

Model   MN12

Brand   MOONSUN

Operating weight    1200kg

Overall dimension( LxWxH)   2770x896x1490 mm

Digging bucket capacity    0.025cbm

Digging bucket width   400mm width

Engine   YANMAR/KUBOTA

Engine power   11.2kw/10.2

Engine type   Diesel three cylinder water cool

Egnine displacement   0.854L

Electric voltage   12V

Electric power   5W

Hydraulic main pump   SHUNSHENG

Hydraulic system pressure    16L/min

PumHydraulic system flowp flow   16Mpa

Valve   BEIFANG

Swing motor    USA EATON

Swing speed    10r/min

Traveling motor   USA EATON

Traveling speed    2.0km/h

Sealing parts   USA PARKER

Arm digging force   5.2Kn

Bucket digging force   9.5Kn

Grade ability    30 Degree

Hydraulic oil tank capacity   16.5L

Engine oil tank capacity   2.8(1.3)L

Diesel tank capacity   7L

Max. Digging height   2610 mm

Max. Dumping height   1850 mm

Max. Digging depth   1650 mm

Max. Vertical digging depth   1375 mm

Max. Digging radius   2850 mm

Min. Turning radius   1330 mm

Ground clearance   380 mm

Track length   1780 mm

Track width   180 mm
