Can use the XINCHAI/YANMAR engine Germany Rexroth pump Italy BONDIOLI motor and gear pump and cylinder and multiple valve/Pilot valve USA SAUER adjust balance valve Italy DNP quick hitch

Can add many attachment like breaker auger snow bucket snow blade snow blower trencher angle broom grabber forks and so on

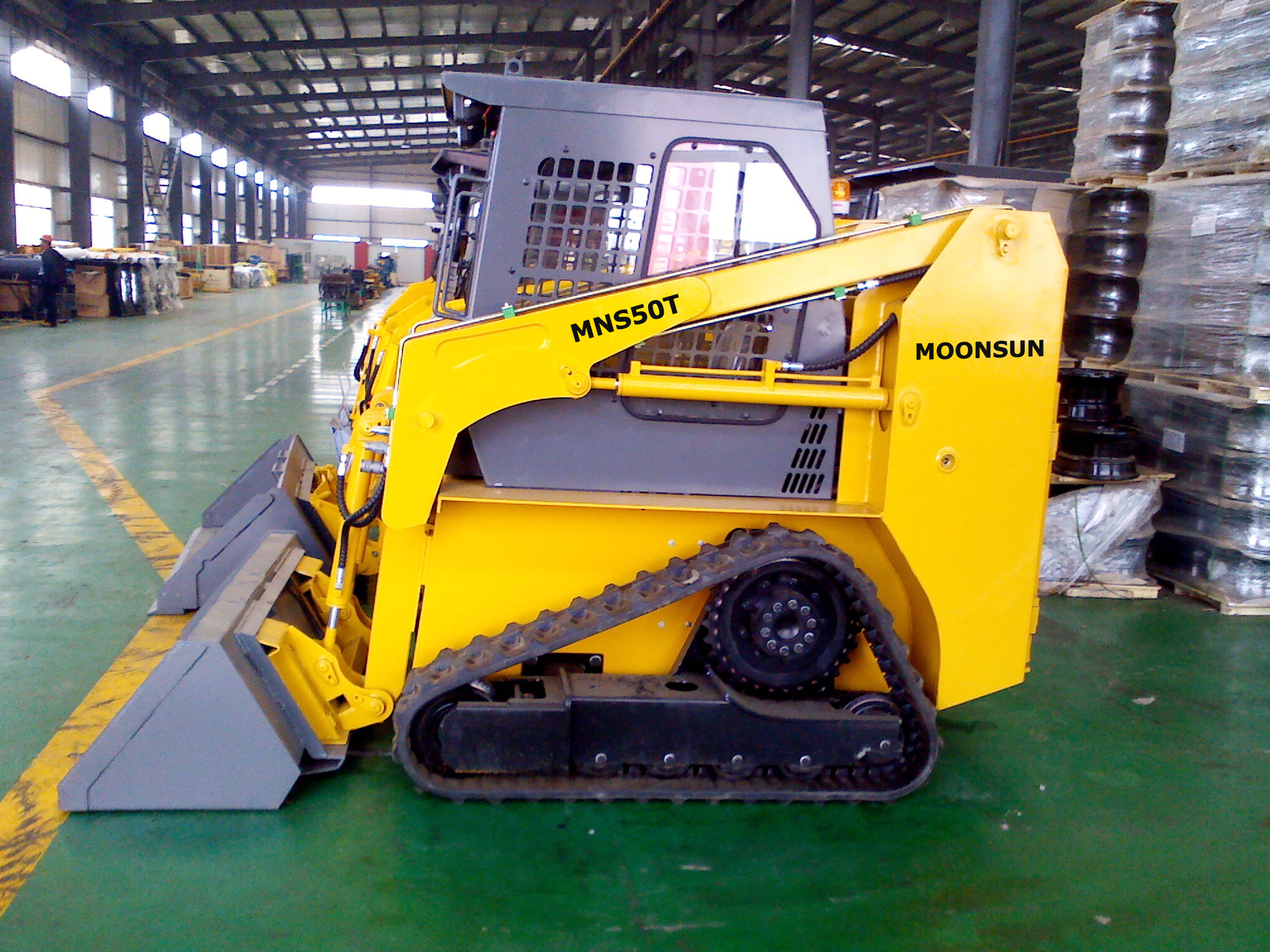

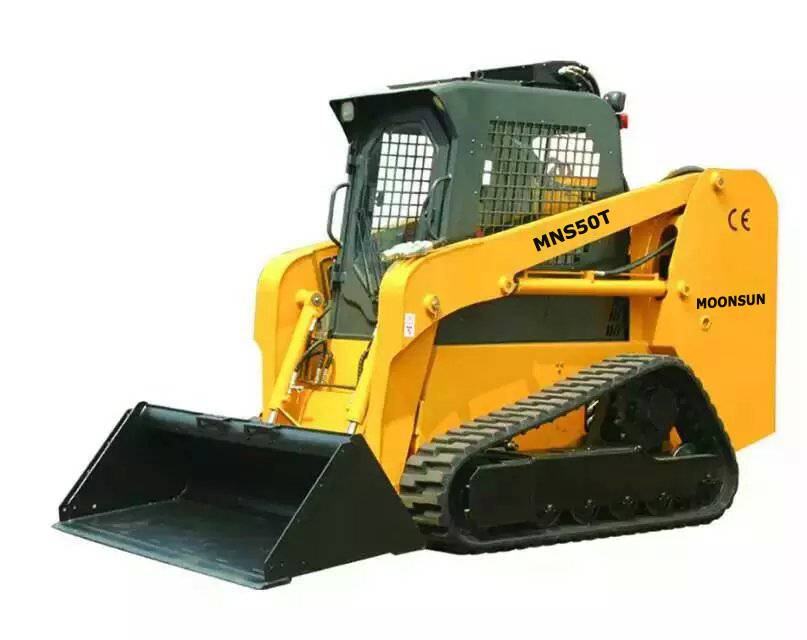

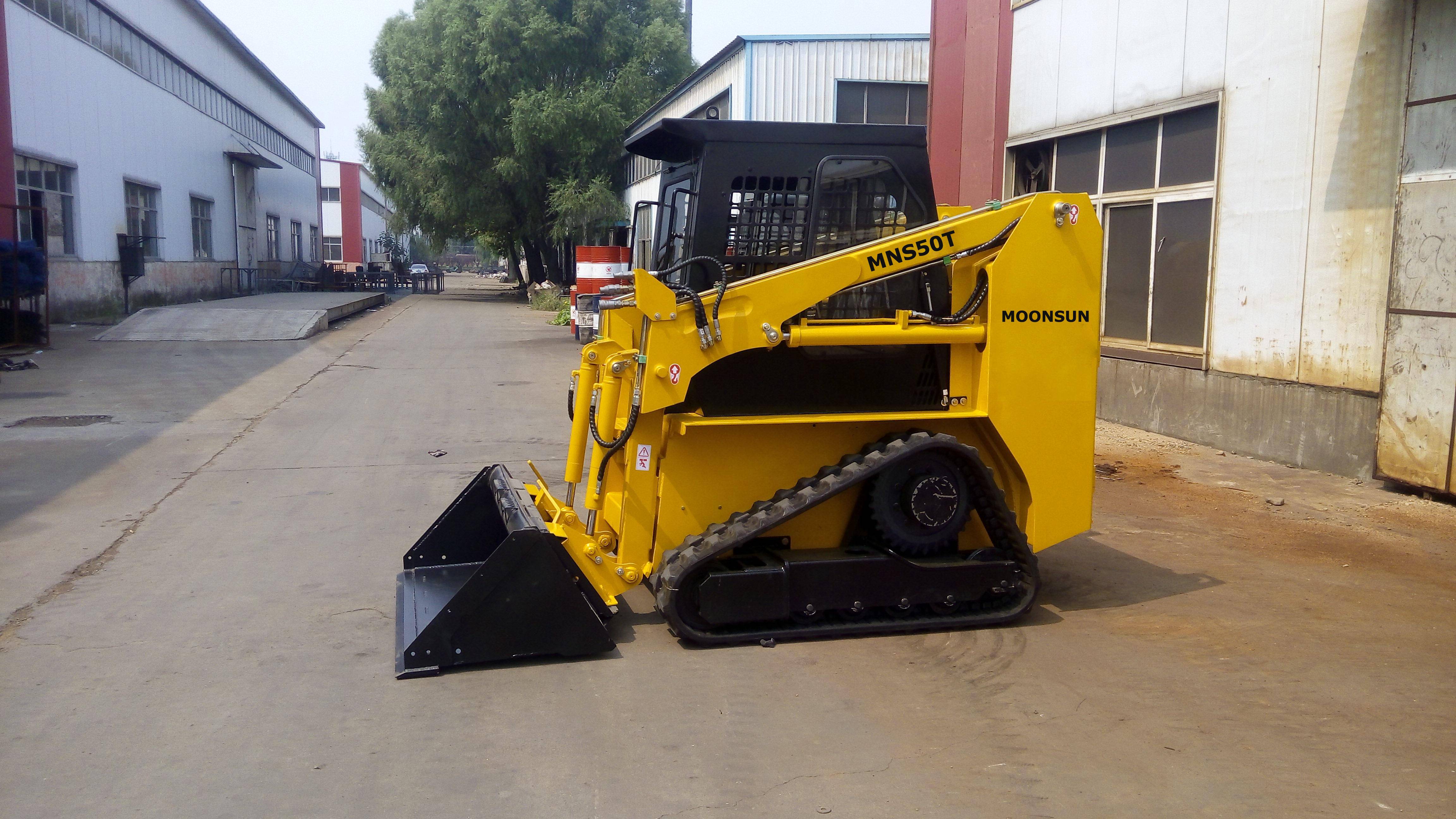

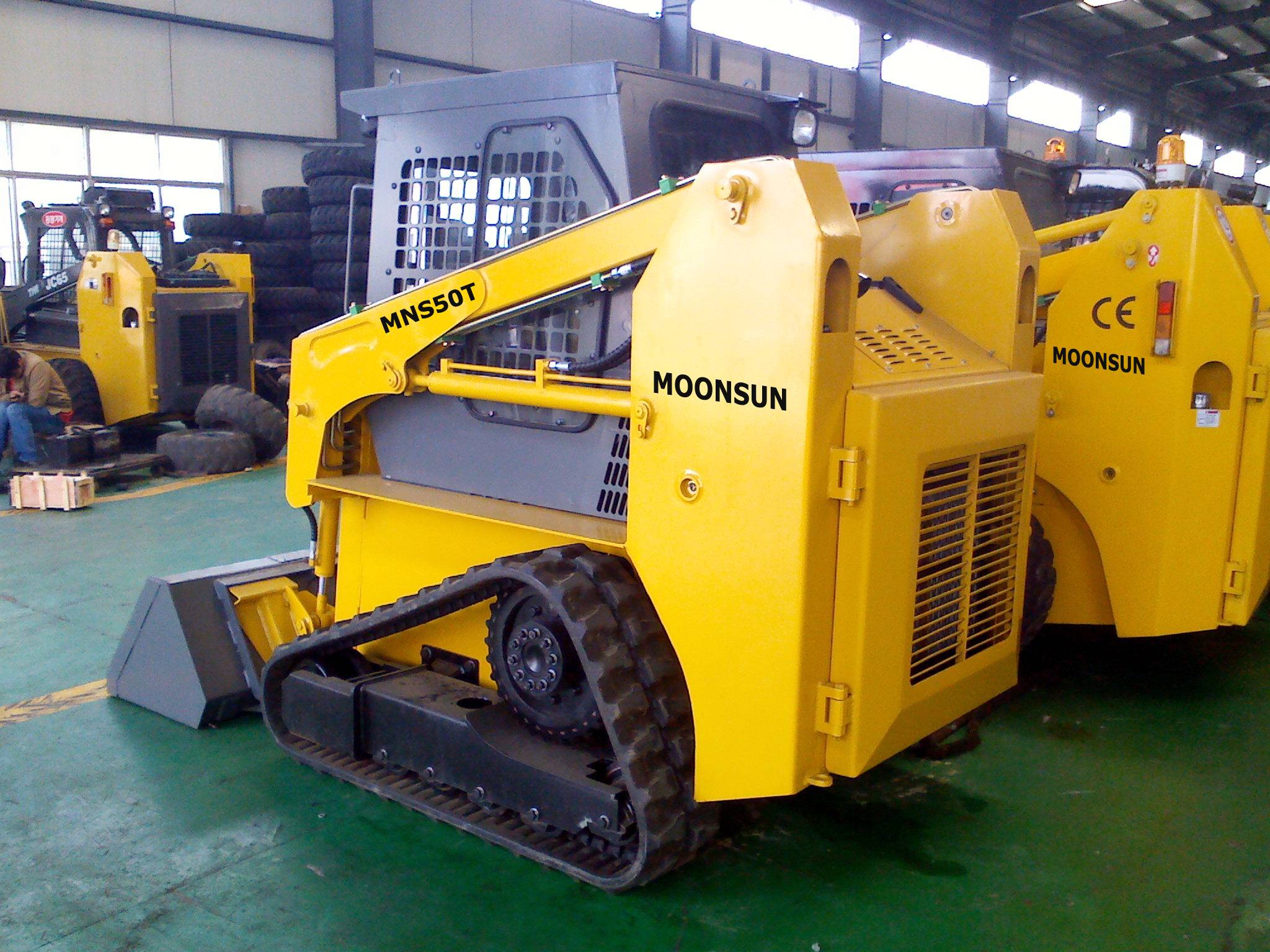

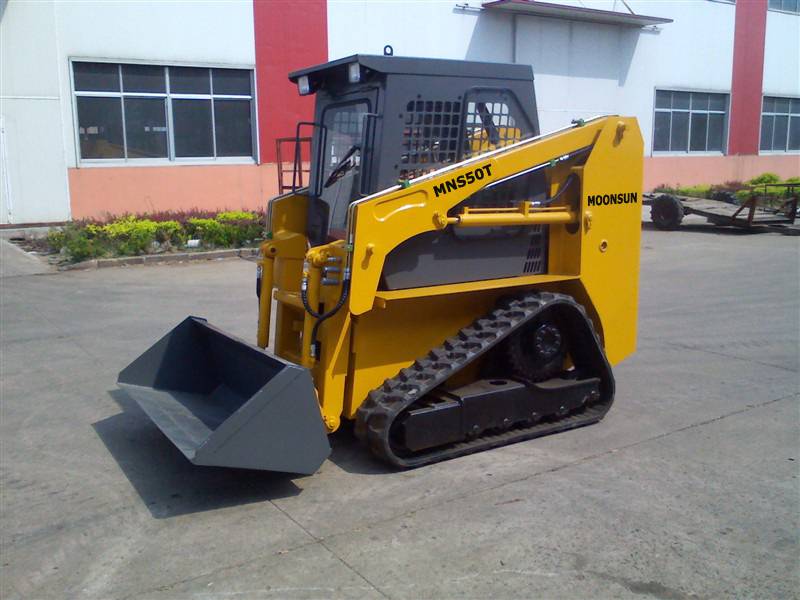

Model   MNS50T

Brand   MOONSUN

MAIN SPECIFICATION

Engine   XINCHAI (490)/YANMAR (4TNV94L)

Engine power    39kw/36.7kw

Engine rated speed   2450r/min ; 2400r/min

Engine type    4 Cylinder in-line Water cooled 4 stroke

Displacement   3.15L/3.06L

Rated operating capacity   700kg

Tipping load    1400kg

Bucket capacity   0.50cbm

Operating weight   2800kg

Max. travel speed    8km/h

Hydraulic pump flow    40L/min

Fuel/Hydraulic oil tank capacity    50L/50L

Rubber track width    300mm

Rubber track land length   1240mm

Overall dimensions    2950×1402×2050mm

Height at maximum extension   3350mm

Height to bucket hinge pin    2770mm

Width with bucket   1500mm

Ground clearance    140mm

Dump angle    40°mm

Dumping height    2300mm

Maximum Reach   710mm

Rollback at ground    26°

Angle of departure    20°

Pump   Germany Rexroth

Motor   Italy BONDIOLI

Gear pump/Cylinder   Italy BONDIOLI

Multiple Valve/Pilot valve   Italy BONDIOLI

Adjust balance valve   USA SAUER

Quick hitch   Italy DNP

Attachments   Backhoe Breaker Angle blade Auger Sweeper Pallet fork Combination bucket Mower Trencher Asphalt cutter etc
