Use the DACHAI engine Germany Rexroth pump Italy BONDIOLI motor and gear pump and cylinder and multiple valve/Pilot valve USA SAUER adjust balance valve Italy DNP quick hitch

Can add many attachment like breaker auger snow bucket snow blade snow blower trencher angle broom grabber forks and so on

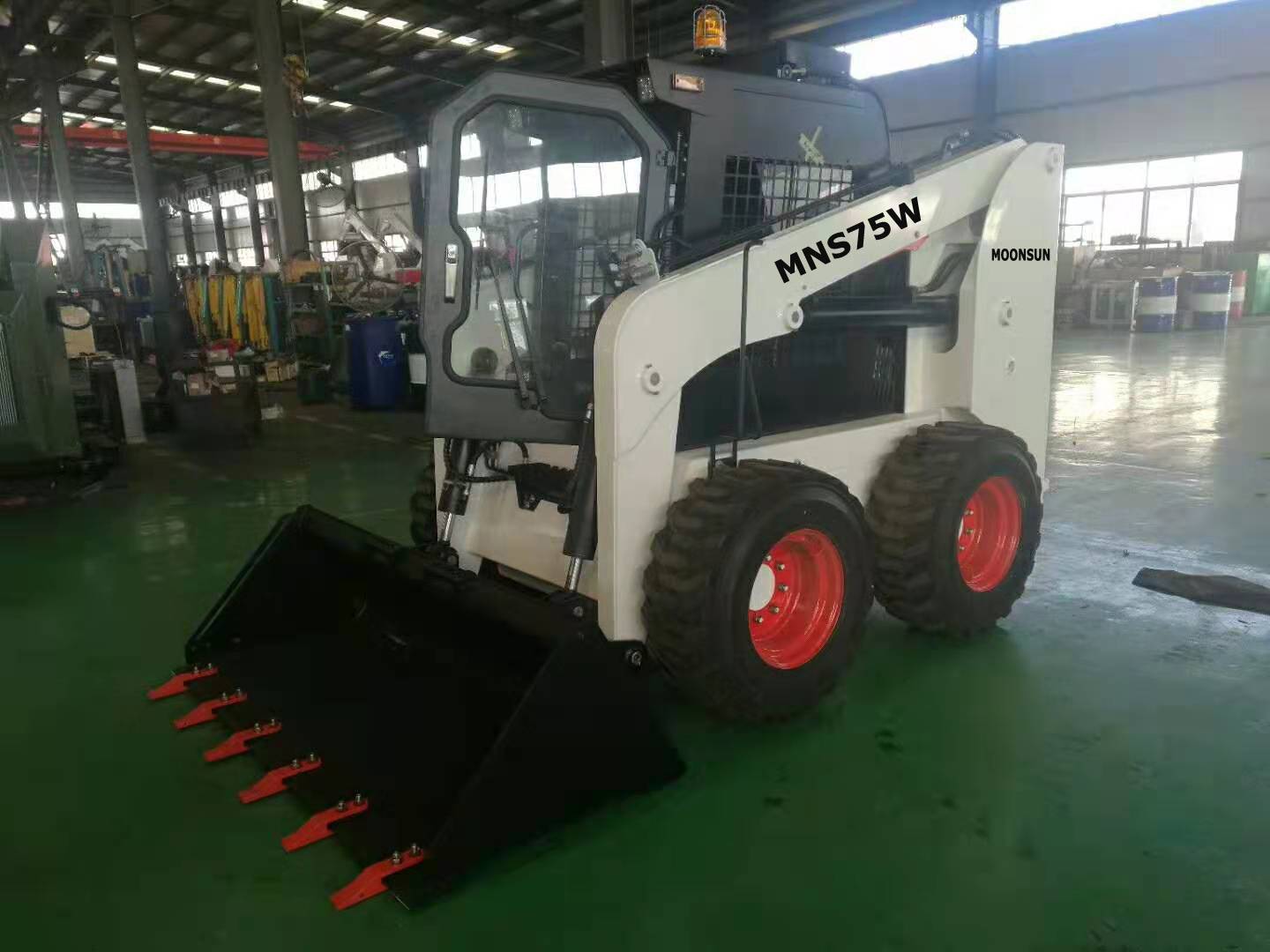

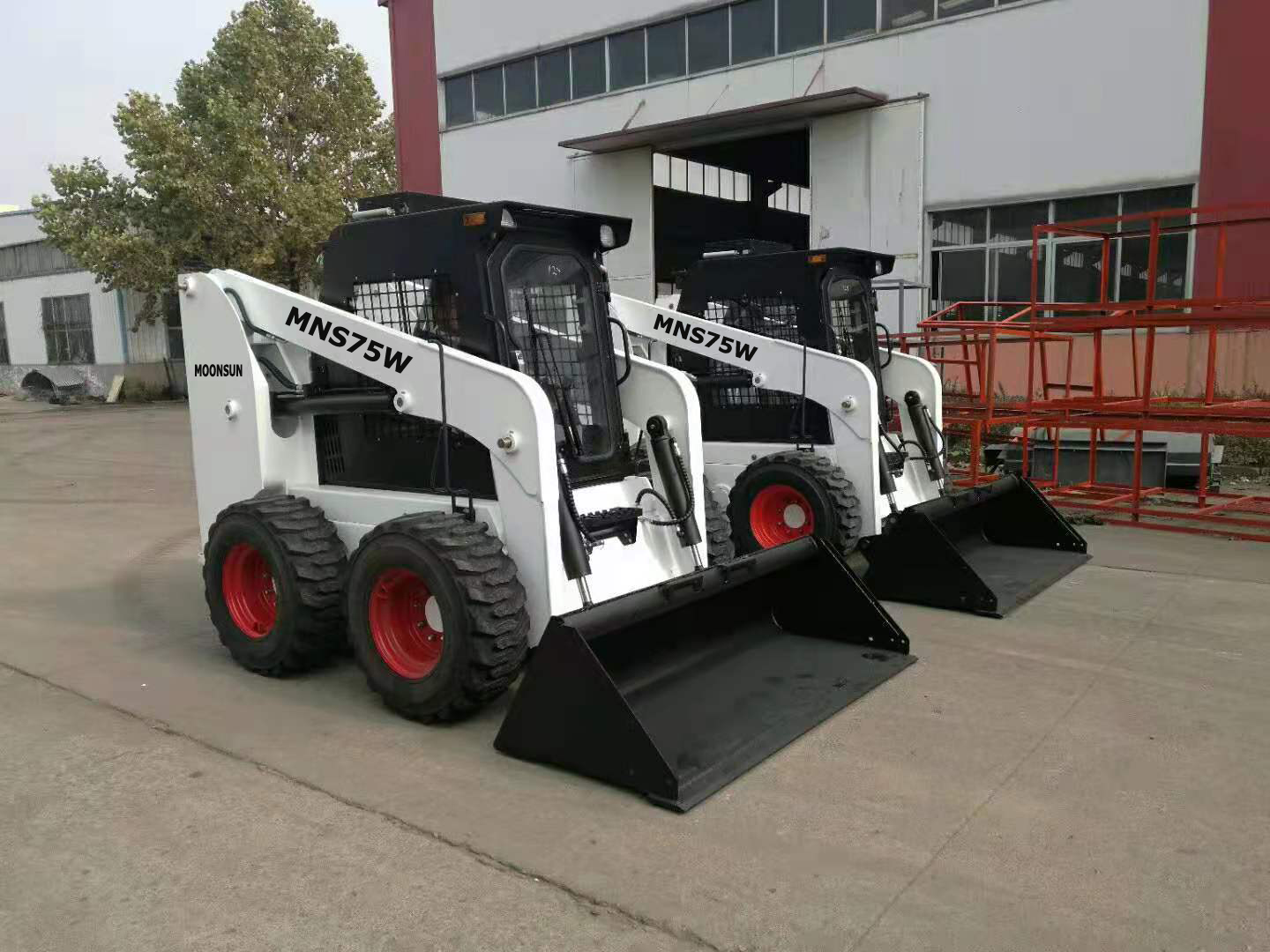

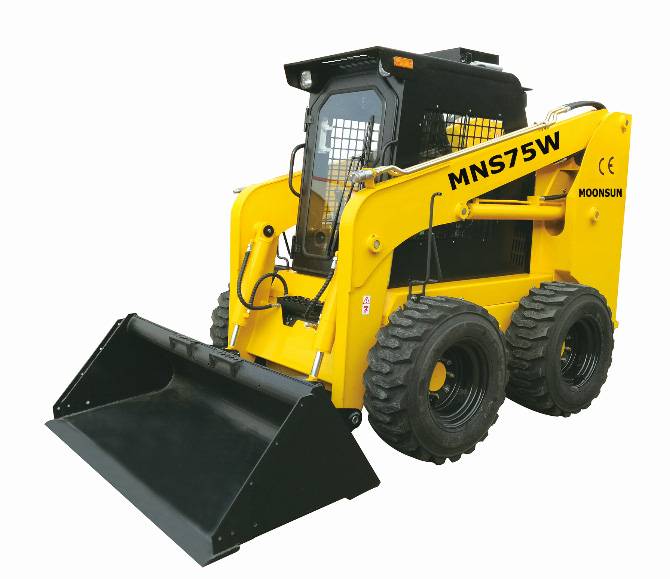

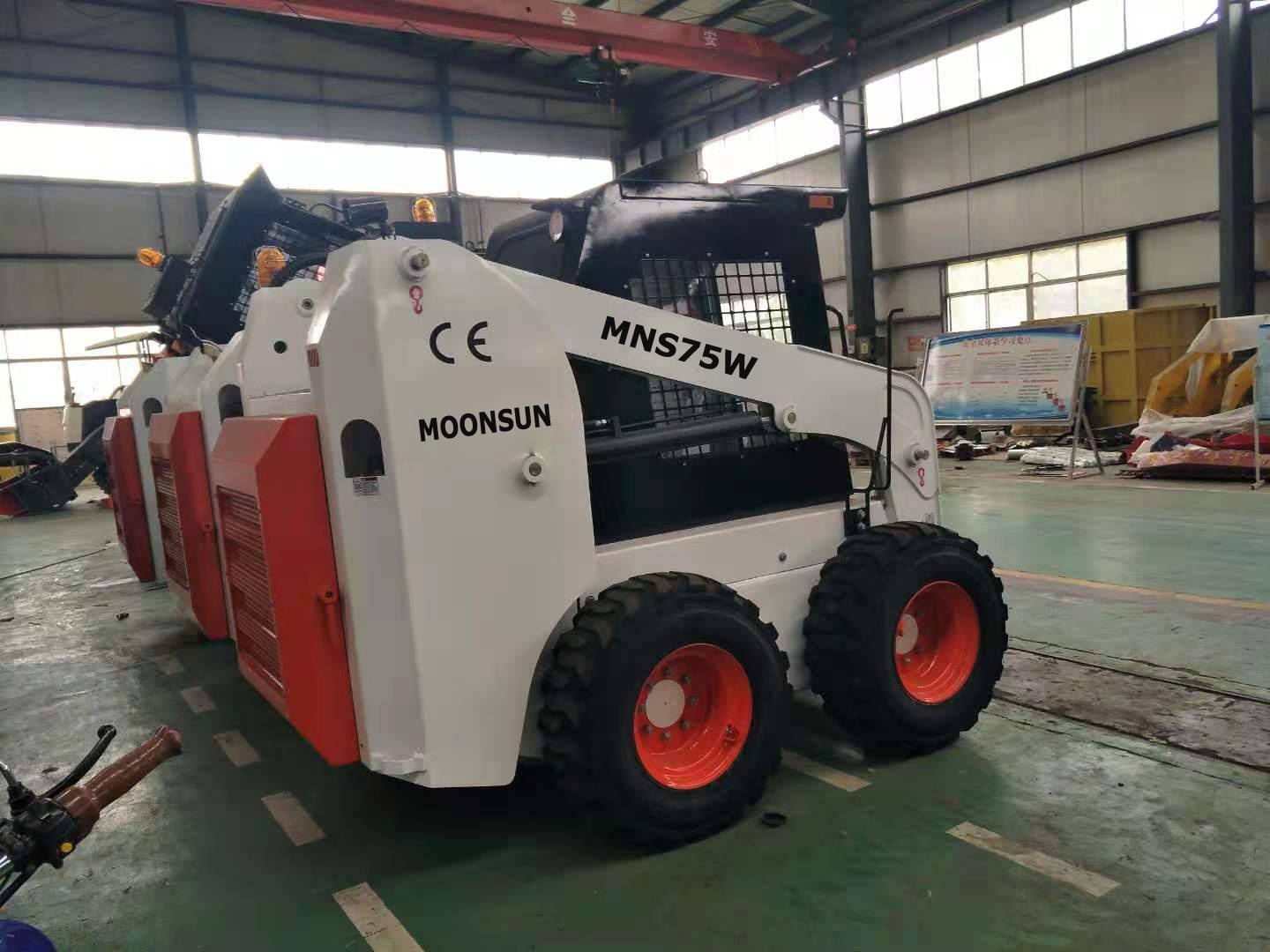

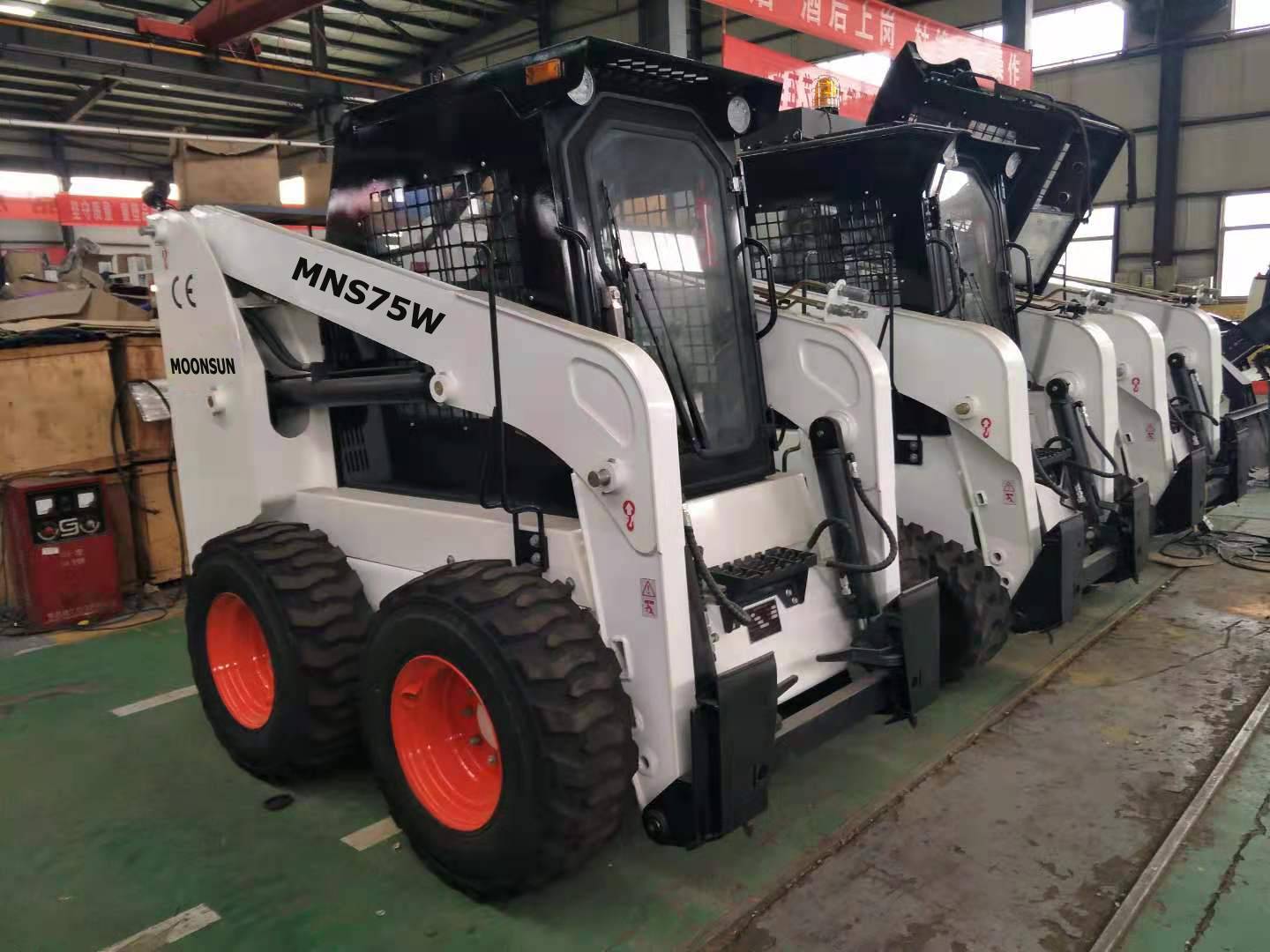

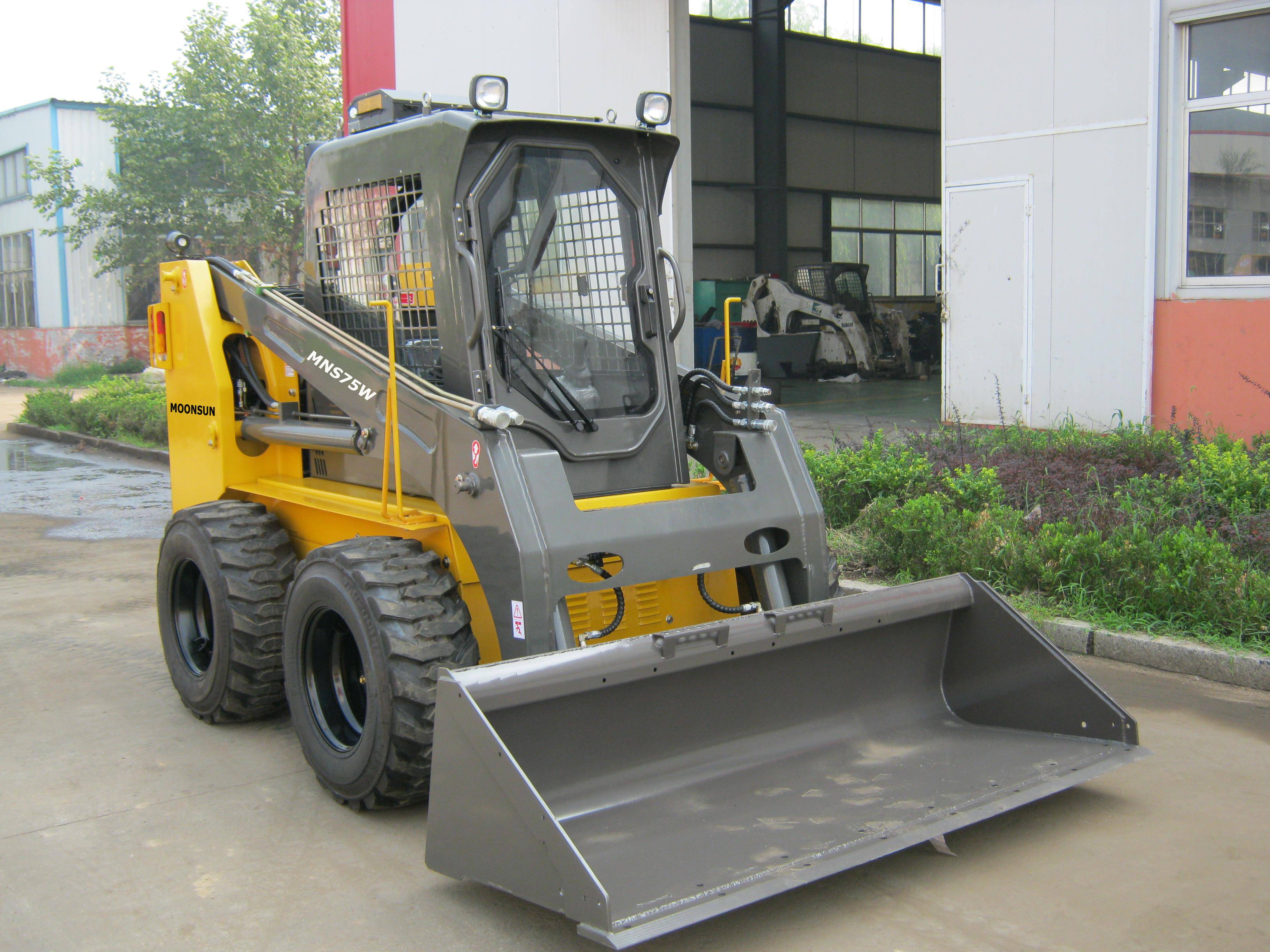

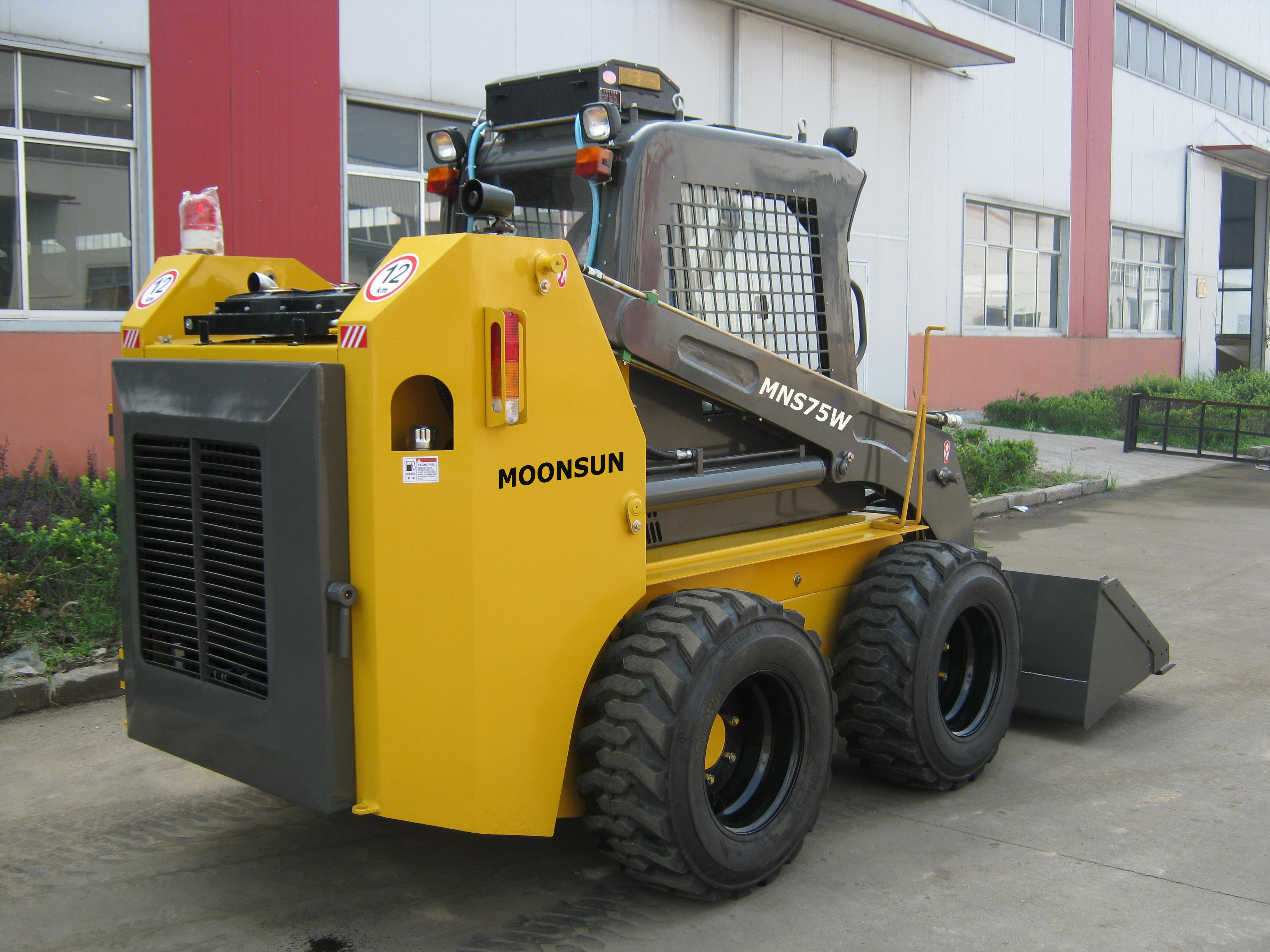

Model   MNS75W

Brand   MOONSUN

MAIN SPECIFICATION

Engine   DACHAI (498)

Engine power    55kw

Engine rated speed   2450r/min

Engine type    4 Cylinder in-line Water cooled 4 stroke

Displacement   3.168L

Rated operating capacity   1050mm

Tipping load    2100mm

Bucket capacity   0.60cbm

Operating weight   3550mm

Max. travel speed    12/18km/h

Hydraulic pump flow   75/125L/min

Fuel/Hydraulic oil tank capacity    60L/90L

Tires size    12/16.5NHS

Overall dimensions   3580×1910×2180mm

Height at maximum extension   4080mm

Height to bucket hinge pin    3150mm

Width with bucket   1910mm

Track width    1500mm

Wheel base    1185mm

Ground clearance    200mm

Dump angle    40°

Dumping height    2450mm

Maximum Reach   710mm

Rollback at ground    26°

Angle of departure    20°

Pump   Germany Rexroth

Motor   Italy BONDIOLI

Gear pump/Cylinder   Italy BONDIOLI

Multiple Valve/Pilot valve   Italy BONDIOLI

Adjust balance valve   USA SAUER

Quick hitch   Italy DNP

Attachments   Backhoe Breaker Angle blade Auger Sweeper Pallet fork Combination bucket Mower Trencher Asphalt cutter etc
