Operating weight   920kg

Vibrating drum   Double steel wheel

Static linear load   56/77N/cm

Vibrating frequency   70Hz

Amplitude   0.5mm

Centrifugal force   20Kn

Engine HONDA (GX390)/Gasoline;   CHANGCHAI (186F)/Diesel

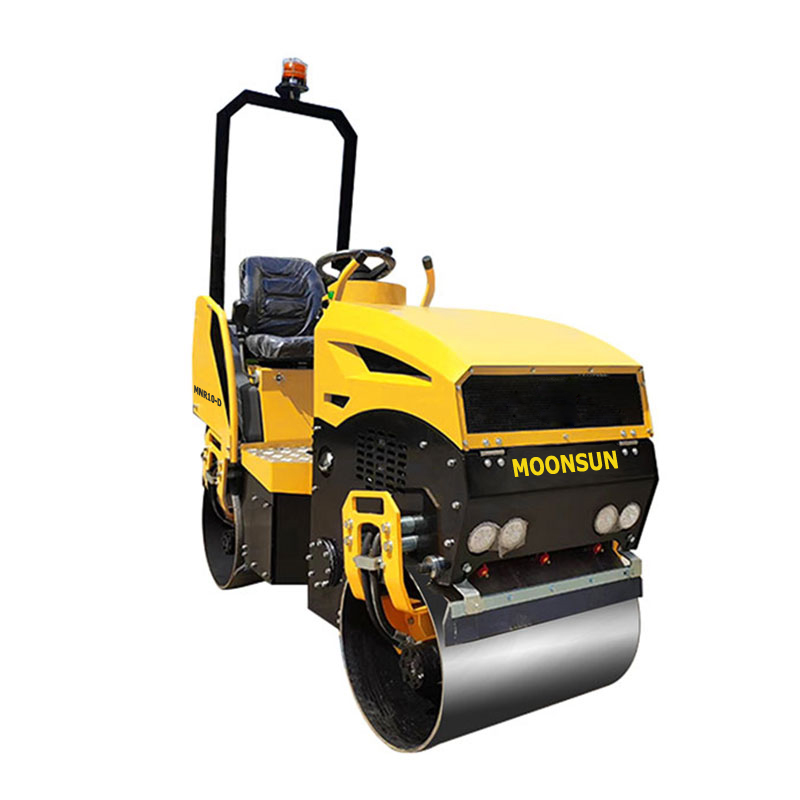

Model   MNR10-D

Brand   MOONSUN

SPECIFICATION

Operating weight   920kg

Vibrating drum   Double steel wheel

Static linear load   56/77N/cm

Vibrating frequency   70Hz

Amplitude   0.5mm

Centrifugal force   20Kn

Engine HONDA (GX390)/Gasoline;   CHANGCHAI (186F)/Diesel

Engine cylinder   One

Engine power   9.7kw/6.0kw

Engine rated speed   3600r/min

Voltage   12V

Wheel base   1230mm

Vibrating drum   Front

Drive way   Stepless speed change two wheels drive motor Mechanical

Steering way   Hydraulic

Steering system   Swing articulated

Travel speed   0-5.0km/h

Grade ability   30%

Working width   825mm

Drum width   700mm

Drum diameter   500mm

Total length   1870mm/1780mm

Total height with ROPS   1450mm/1985mm

Turning radius（Outer）   2600mm

Start way   Electric

Type of sprinkling   Pressure

Fuel capacity   6.5L/5.5L

Hydraulic oil capacity   15L/ 15L

Water capacity   67L /67L
