Operating weight   1150kg Vibrating drum   Double steel wheel Static linear load   69.5/68N/cm Vibrating frequency   65Hz Amplitude   0.5mm Centrifugal force   22Kn Engine   CHANGCHAI (192F)

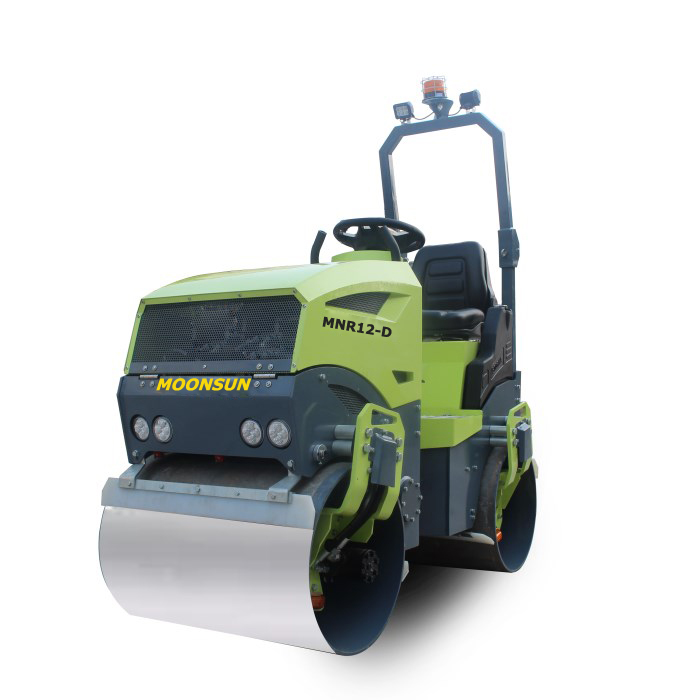

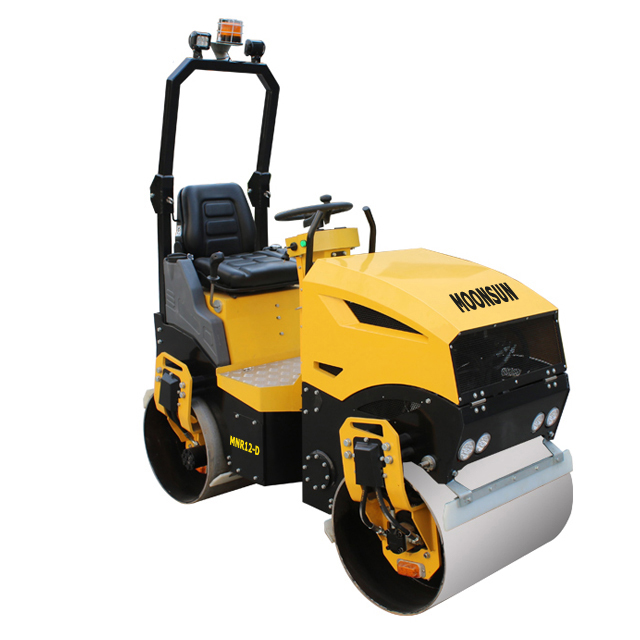

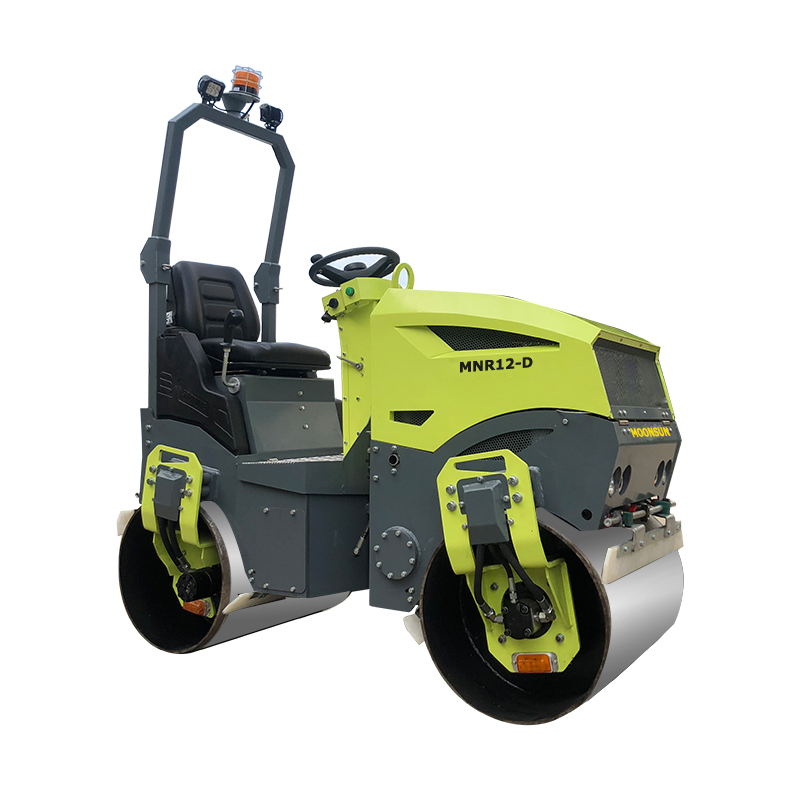

Model   MNR12-D Brand   MOONSUN SPECIFICATION Operating weight   1150kg Vibrating drum   Double steel wheel Static linear load   69.5/68N/cm Vibrating frequency   65Hz Amplitude   0.5mm Centrifugal force   22Kn Engine    CHANGCHAI (192F) Engine type   Diesel Engine cylinder   One Engine power   8.1kw Engine rated speed   3600r/min Voltage   12V Wheel base   1356mm Vibrating drum   Front Drive way   Stepless speed change two wheels drive motor Mechanical Steering way   Hydraulic Steering system   Swing articulated Travel speed   0-5.0km/h Grade ability   30% Working width   930mm Drum width   700mm Drum diameter   500mm Total length   1980mm/1940mm Total height with ROPS   1540mm/2125mm Turning radius（Outer）   2800mm Start way   Electric Type of sprinkling   Pressure Fuel capacity   5.5L Hydraulic oil capacity   22L Water capacity   65L
