Operating weight   1.5T

Vibrating drum   Double steel wheel

Static linear load   82N/cm

Vibrating frequency   65Hz

Amplitude   0.5mm

Centrifugal force   25Kn

Engine YANMAR(3TNV68)

Engine type Diesel

Operating weight   1.5T

Vibrating drum   Double steel wheel

Static linear load   82N/cm

Vibrating frequency   65Hz

Amplitude   0.5mm

Centrifugal force   25Kn

Engine   YANMAR(3TNV68)

Engine type   Diesel

Voltage   12V

Wheel base   1515mm

Vibrating drum   Front

Drive way   Stepless speed change two wheels drive motor Hydraulic

Steering way   Hydraulic

Steering system   Swing articulated

Travel speed   0-6.0km/h

Grade ability   30/35%

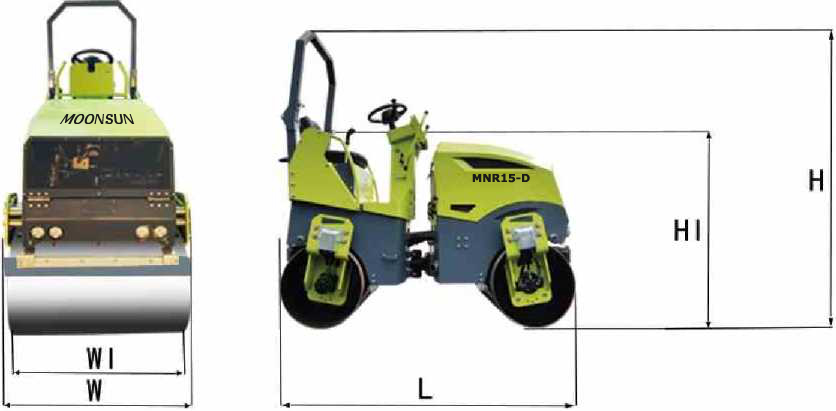

Working width   1050mm

Drum width   900mm

Drum diameter   560mm

Total length   2210mm/2150mm

Total height with ROPS   1790mm/2465mm

Turning radius（Inner/Outer）   2800mm/3850mm

Start way   Electric

Type of sprinkling   Pressure

Fuel capacity   36L

Hydraulic oil capacity   45L

Water capacity   160L
