Operating weight   4T

Vibrating drum   Double steel wheel

Static linear load   135/120N/cm

Vibrating frequency   65Hz

Amplitude   0.5mm

Centrifugal force   40Kn

Engine   CHANGCHAI (ZN390B)

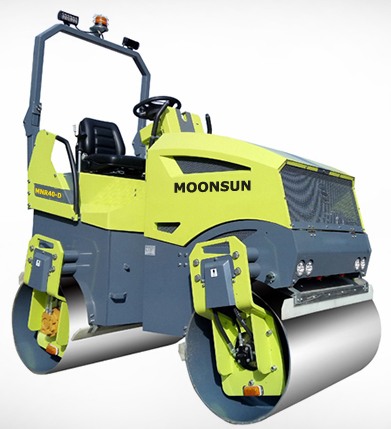

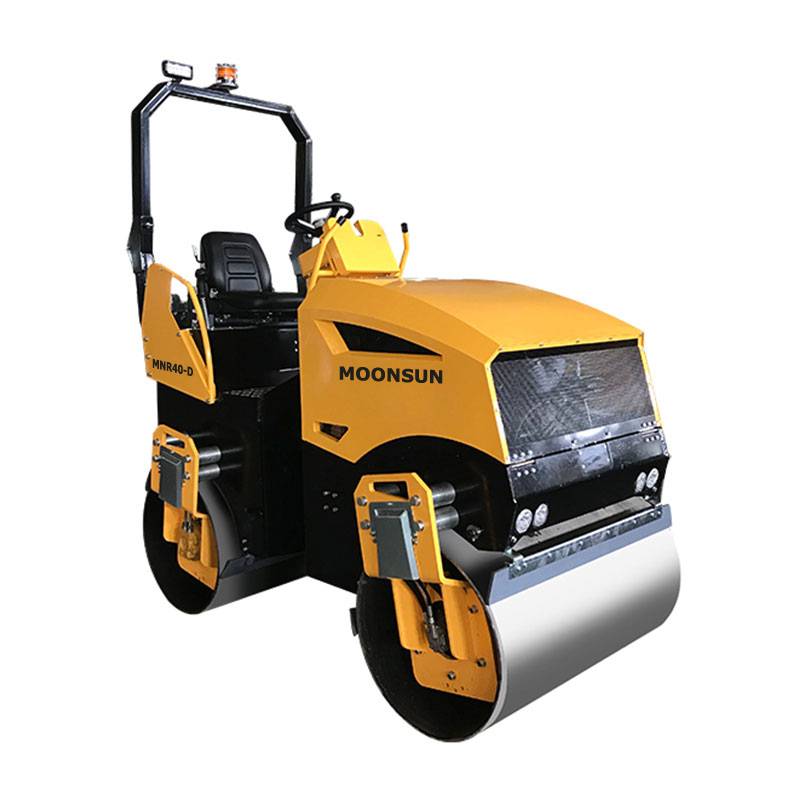

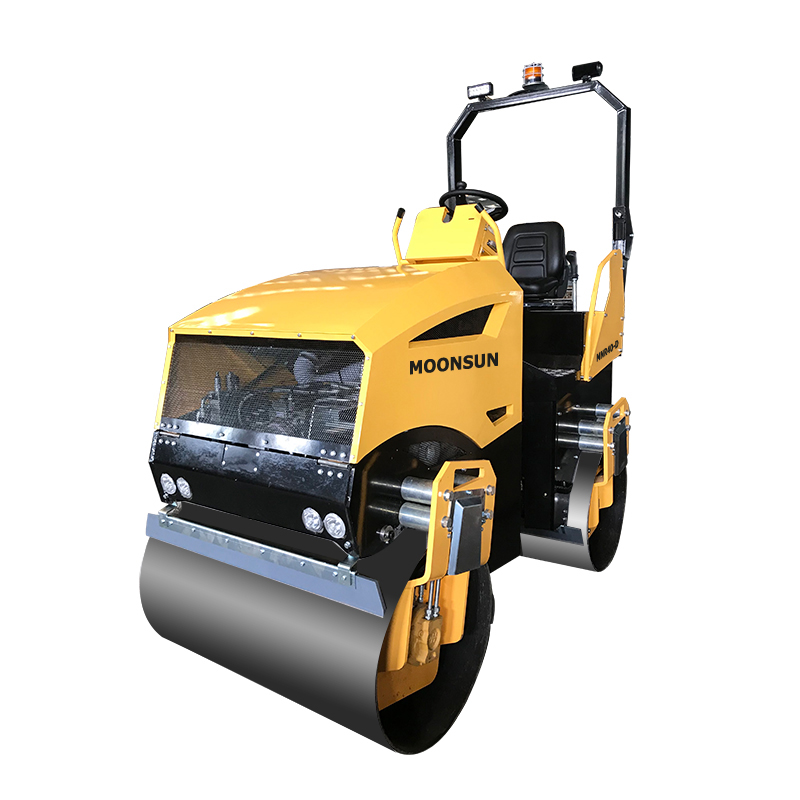

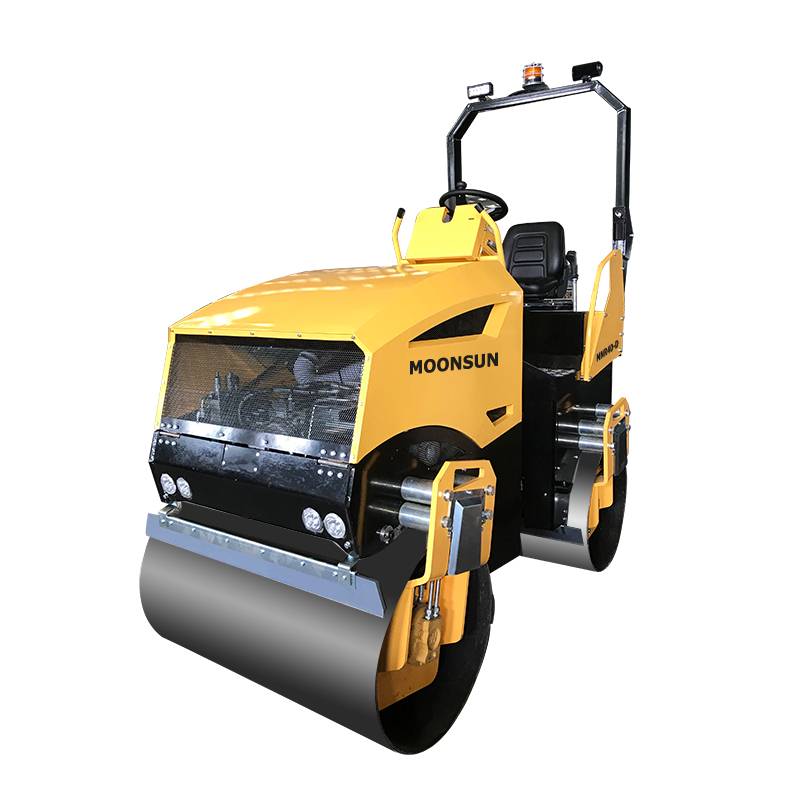

Model   MNR40-D

Brand   MOONSUN

SPECIFICATION

Operating weight   4T

Vibrating drum   Double steel wheel

Static linear load   135/120N/cm

Vibrating frequency   65Hz

Amplitude   0.5mm

Centrifugal force   40Kn

Engine   CHANGCHAI (ZN390B)

Engine type   Diesel

Engine cylinder   Three

Engine power   28.5kw

Engine rated speed   2600r/min

Voltage   12V

Wheel base   1720mm

Vibrating drum   Front/Back/Front+Back

Drive way   Stepless speed change two wheels drive motor Hydraulic

Steering way   Hydraulic

Steering system   Swing articulated

Travel speed   0-10.0km/h

Gradeability   30/40%

Working width   1370mm

Drum width   1200mm

Drum diameter   720mm

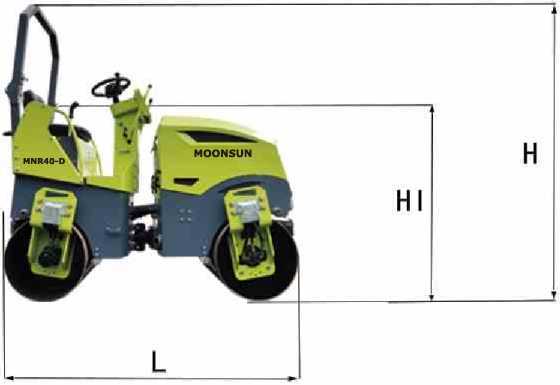

Total length   2580mm/2480mm

Total height with ROPS   2000mm/2670mm

Turning radius（Inner/Outer）   2750mm/4130mm

Start way   Electric

Type of sprinkling   Pressure

Fuel capacity   42L

Hydraulic oil capacity   42L

Water capacity   140L
