1.Hydraulic double drum drive infinitely variable speed. Rear smooth tires with good sealing compacting efficiency.

2.Hydraulic steering articulated frame with flexible steering and light operation.

3.Hydraulic front drum vibration start-oscillation by electronic control.

4.Overall streamlined deign with attractive design.

5.The front engine cover can be turned up in a big angel for easy maintenance.

6. Equipped with electronic control pressurized water spraying system high volume anti-corrosive water tanks. 7.A trailer can be purchased for convenient transportation and energy saving. 8. Imported engines are optional.

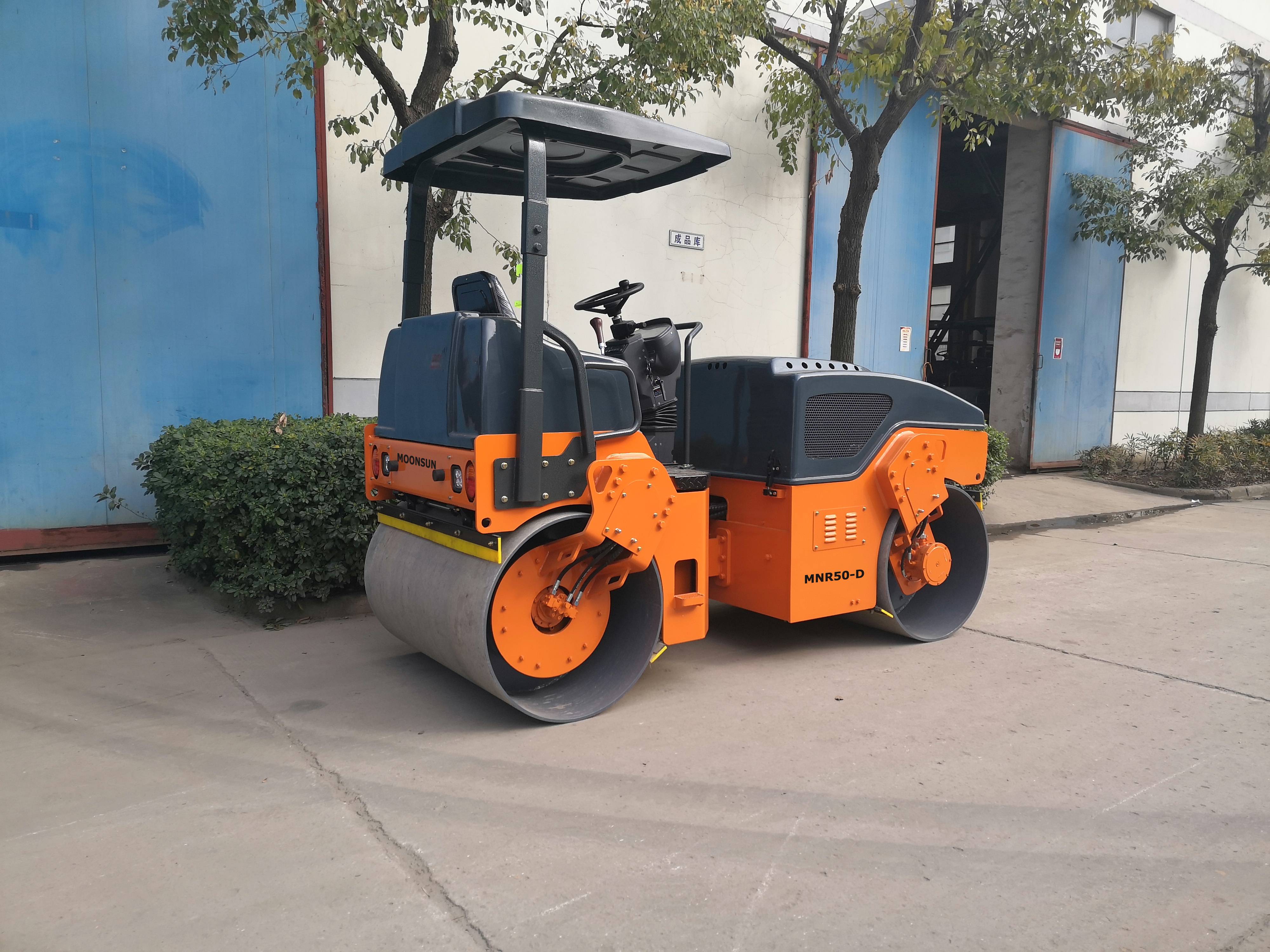

Model     MNR50-D

Brand     MOONSUN

SPECIFICATION

Operating weight     5T

Vibrating drum     Double steel wheel

Static linear load     185N/cm

Vibrating frequency     55Hz

Amplitude     0.5mm

Centrifugal force     42Kn

Engine      WEICHAI (WP3.2G50)

Engine type      In-line water-cooling 4-stroke 4 cylinder direct-injection

Engine power     36.8kw

Engine rated speed     2400r/min

Steering angle     ±30

Travel speed     F: 0~9.0 km/h ; R: 0~9.0 km/h

Tire size     10.5/80（smooth）

Grade ability     40%

Drum width     1350mm

Overall dimension     3180x1510x2560mm
