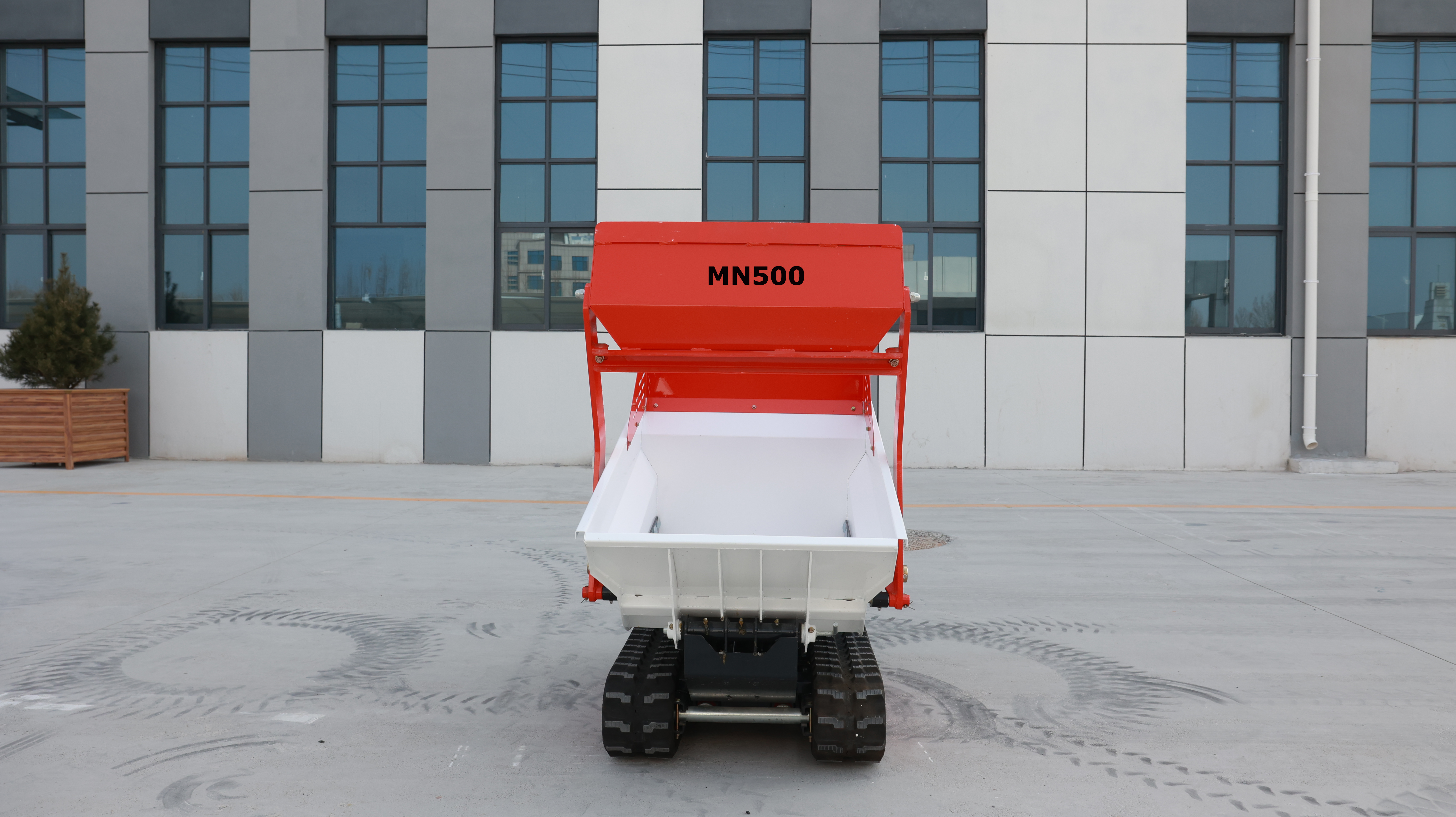

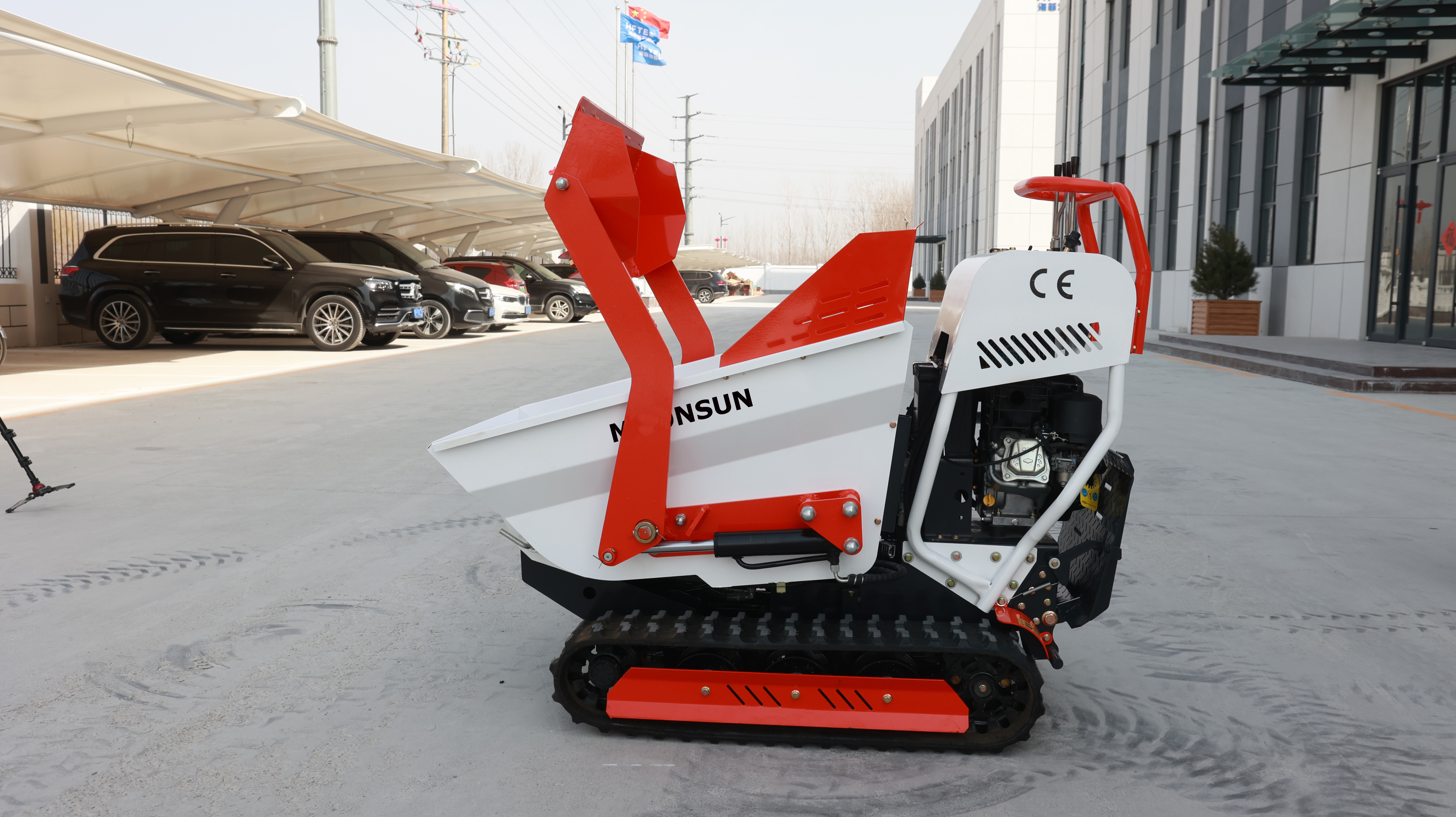

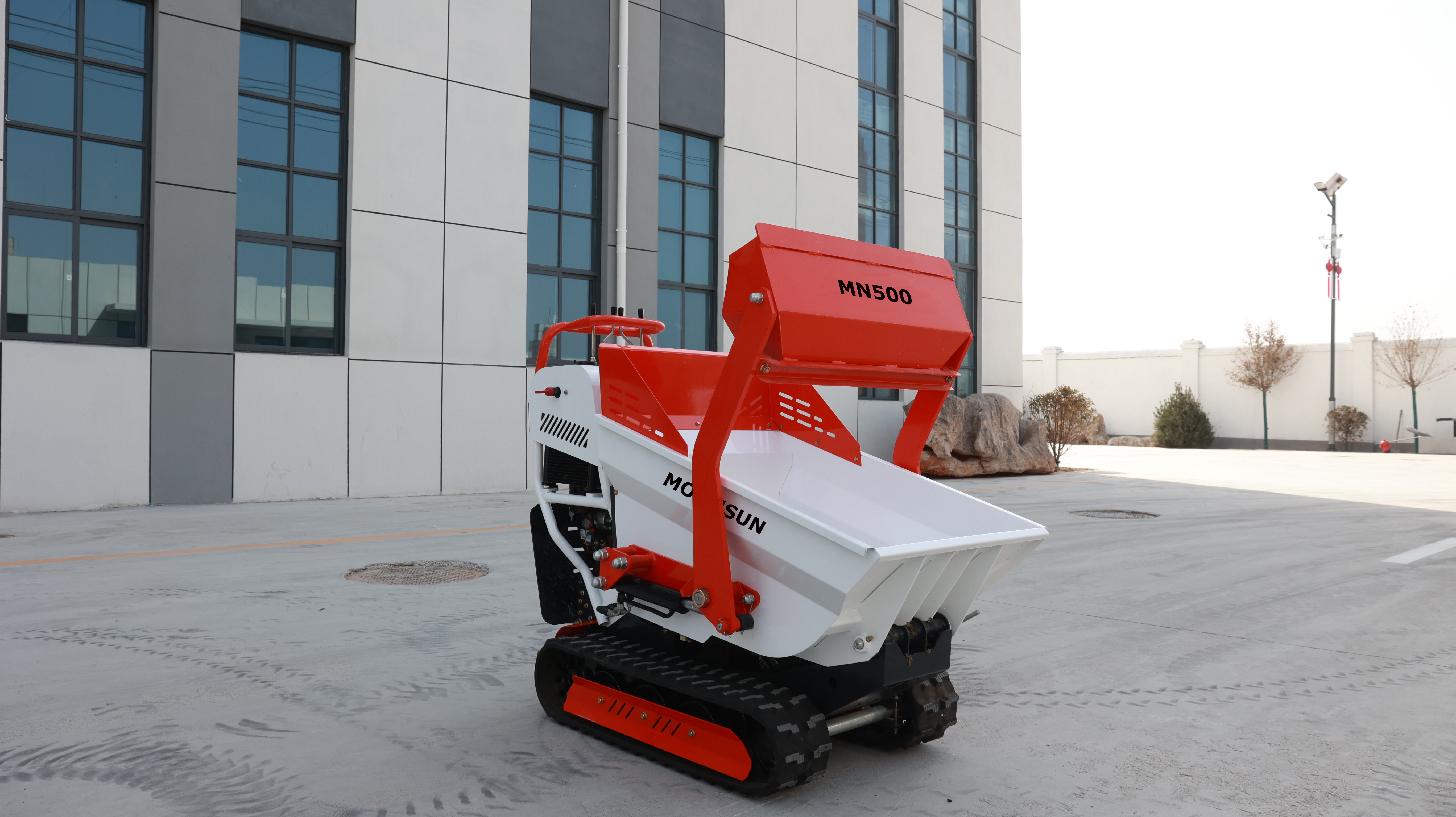

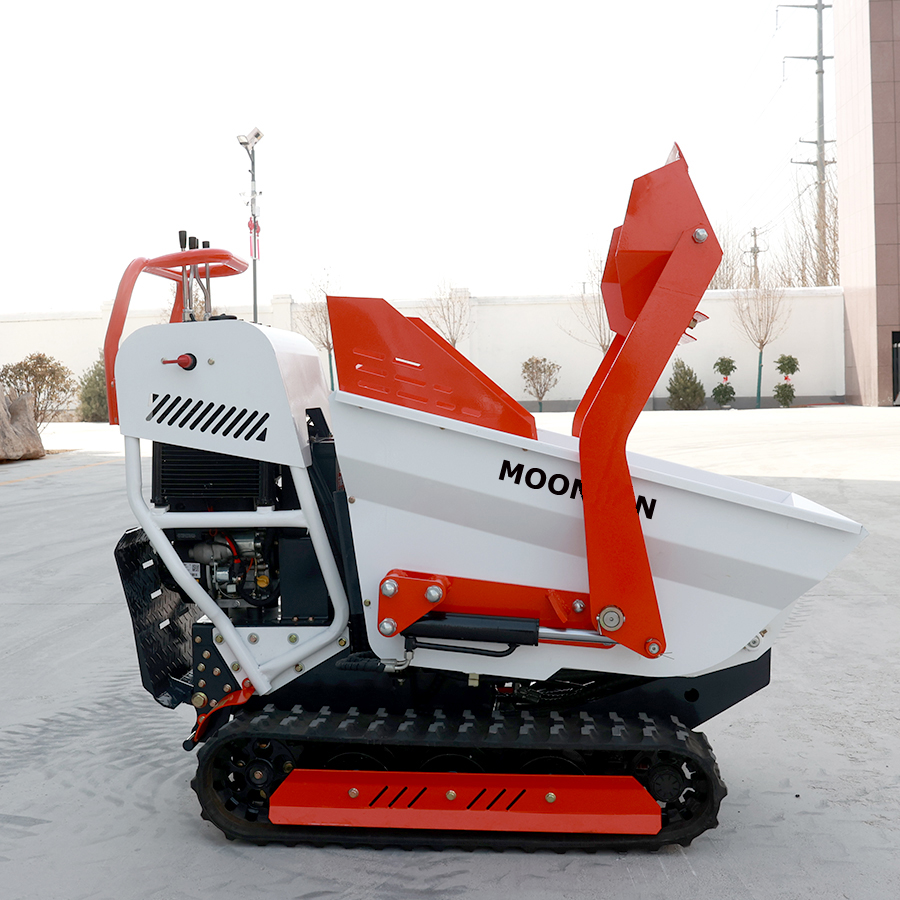

This mini dumper loader is designed for small project garden farmland municipal works etc also can be used in playground public park. It is with small engine simple design easy to maintain.Use ERUO5 and EPA4 emission engine: Briggs & Stratton(XR950). Mainly export to Europe and USA/CANADA market.

Model   MN500

Brand   MOONSUN

SPECIFICATION

Operating weight   500KG

Working type   Self loading and unloading

Tipping system type   Hydraulic tipping

Tipping angle   100°

Track ground pressure   21 KPa

Track material Rubber

Track tightening type Screw adjustment

Pressure    28 MPa

Flow    26L/min

Overall dimension( LxWxH)  1500x835x1250 mm

Minimum Turning Radius   1150mm

Minimum Ground Clearance   100mm

Roller wheel base   815mm

Wheelbase   1050mm

Track width   180mm

Dump bucket width   640mm

Dump front end height   800mm

Dump back end height 1010mm

Max.Unloading height   1680mm

Max.Unloading dump height 2920mm
