Operating weight:800kg

Rated loading capacity:250kg

Bukcet capacity:0.15CBM

EURO5/EPA4 Briggs & Stratton(XR2100) engine 135hp

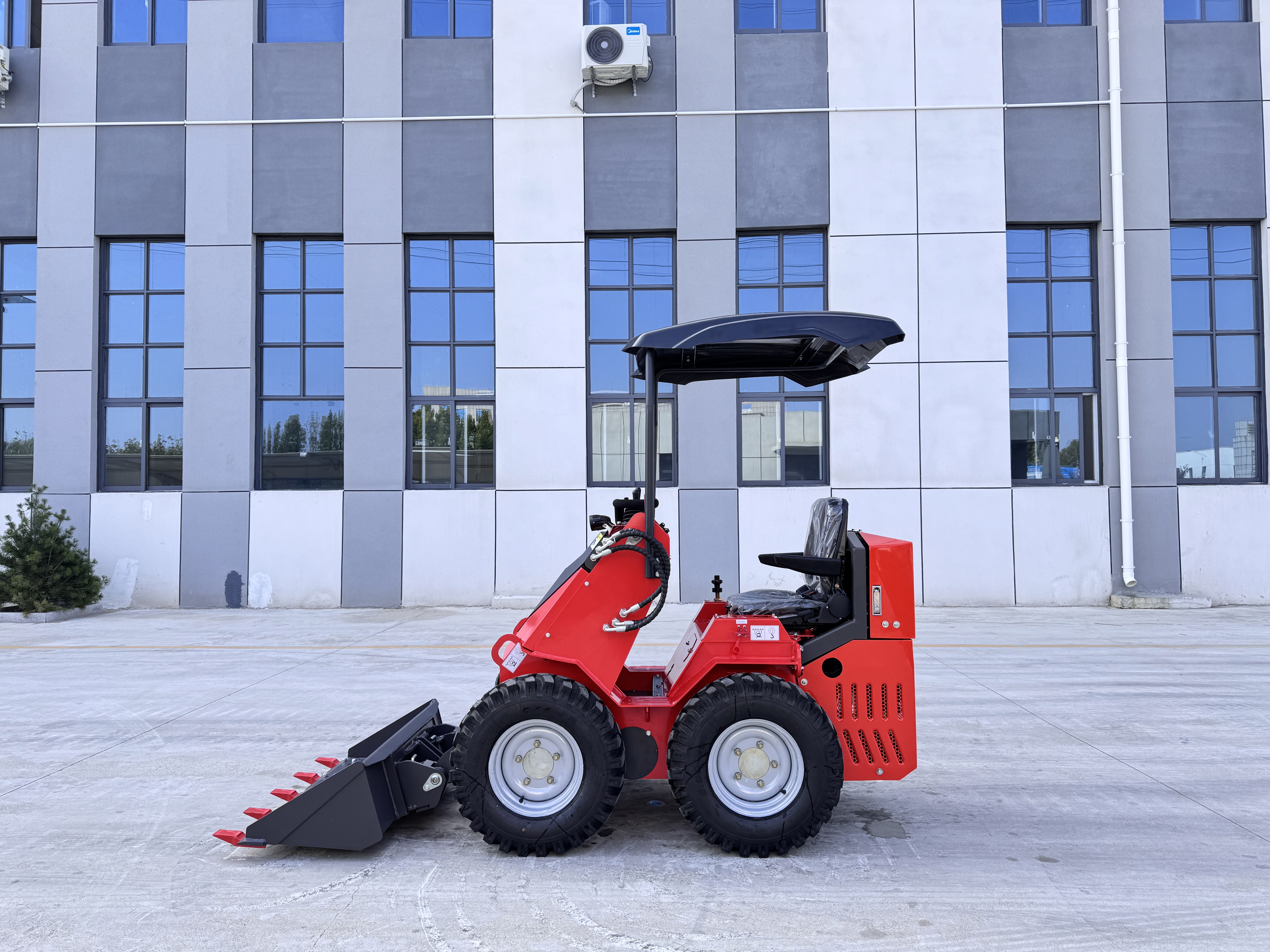

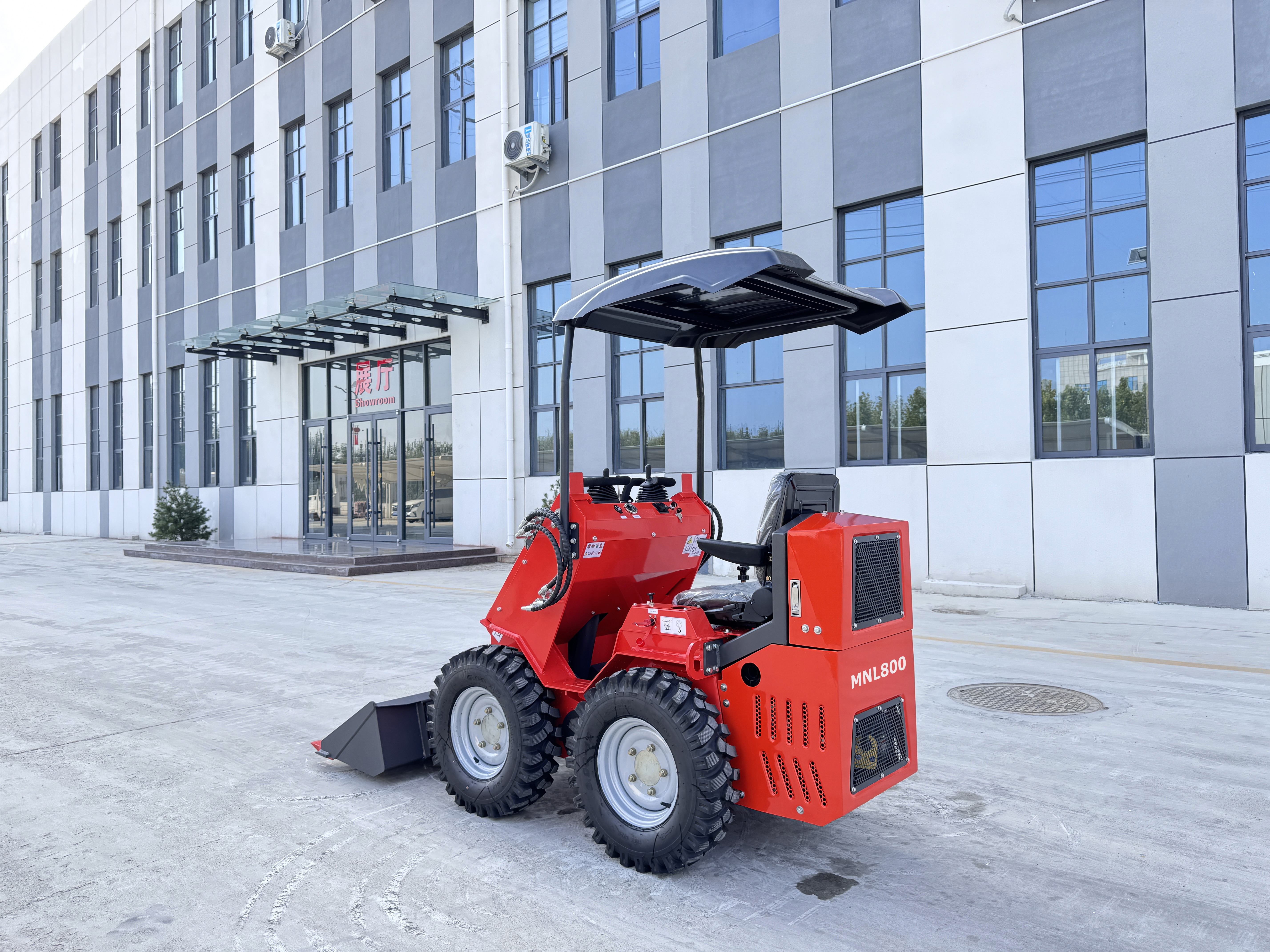

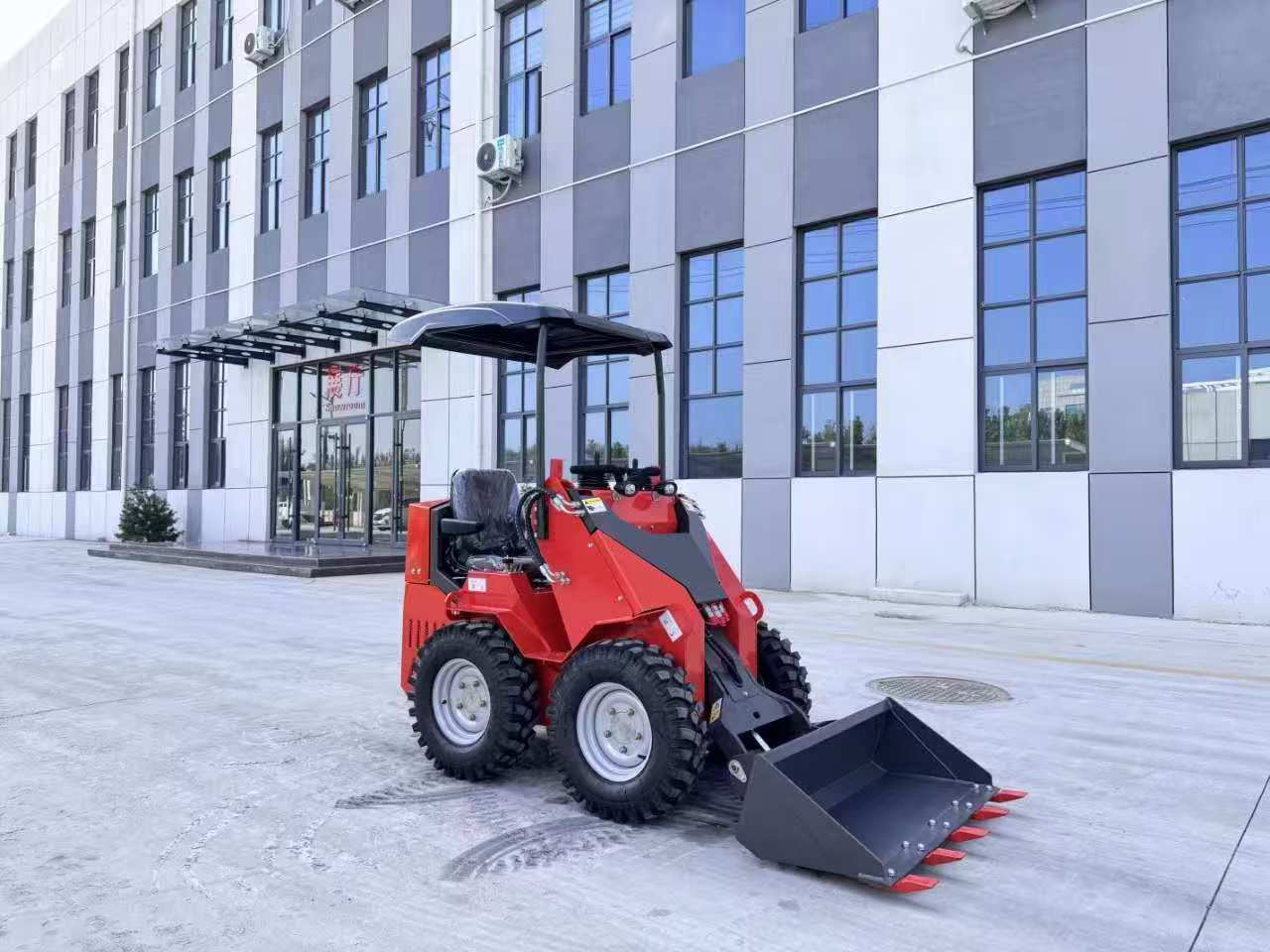

Model   MNL800

Brand   MOONSUN

MAIN SPECIFICATION

Operating weight    800kg

Rated load capacity    250kg

Bucket capacity   0.15cbm

Bucket width   1000mm

Overall dimensions(L×W×H)   2380×1050×255mm

Wheel base   1150mm

Dumping height   2150mm

Dumping reach   1150mm

Tire size   23x8.5-12

Max traveling speed   6km/h

OPERATION SPECIFICATION

Breakout force   15Kn

Hydraulic system pressure setting   18.5Mpa

Hydraulic flow   53.4L/min

Hydraulic cycle times   8.9S

Minimum turning radius over bucket   2100mm

Transmission type   Mechanical

Transmission gears   F2/R1

Axle brand   MOONSUN

Service brake   Four wheel hydraulic spread-shoe brake

Parking brake   Drum

ENGINE

Engine model   Briggs & Stratton(XR2100)

Engine power   13.5hp

Engine rated speed   2400r/min

Engine type   Petrol

Start type   Electric
