Operating weight:17000kg

Rated loading capacity:5000kg

Bukcet capacity:3.0CBM

WEICHAI engine 162kw/ CUMMINS engine 160kw

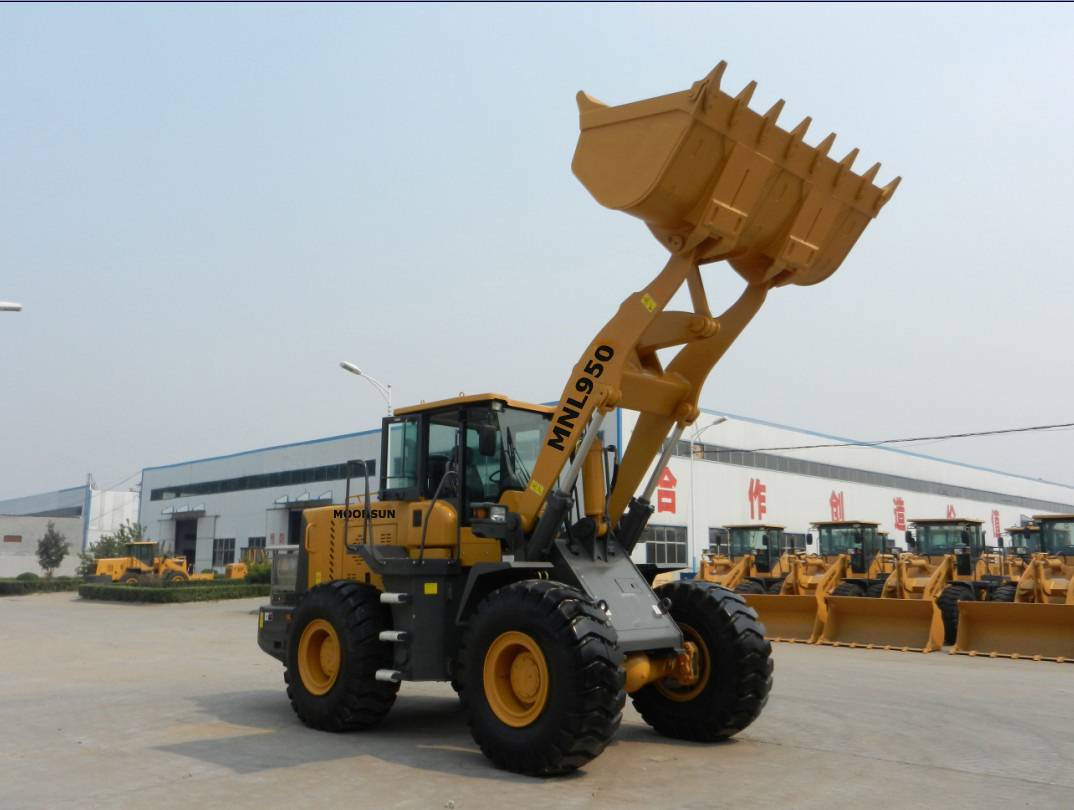

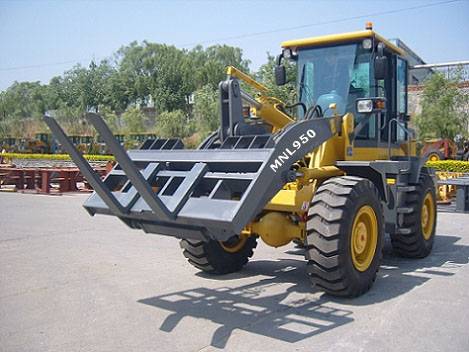

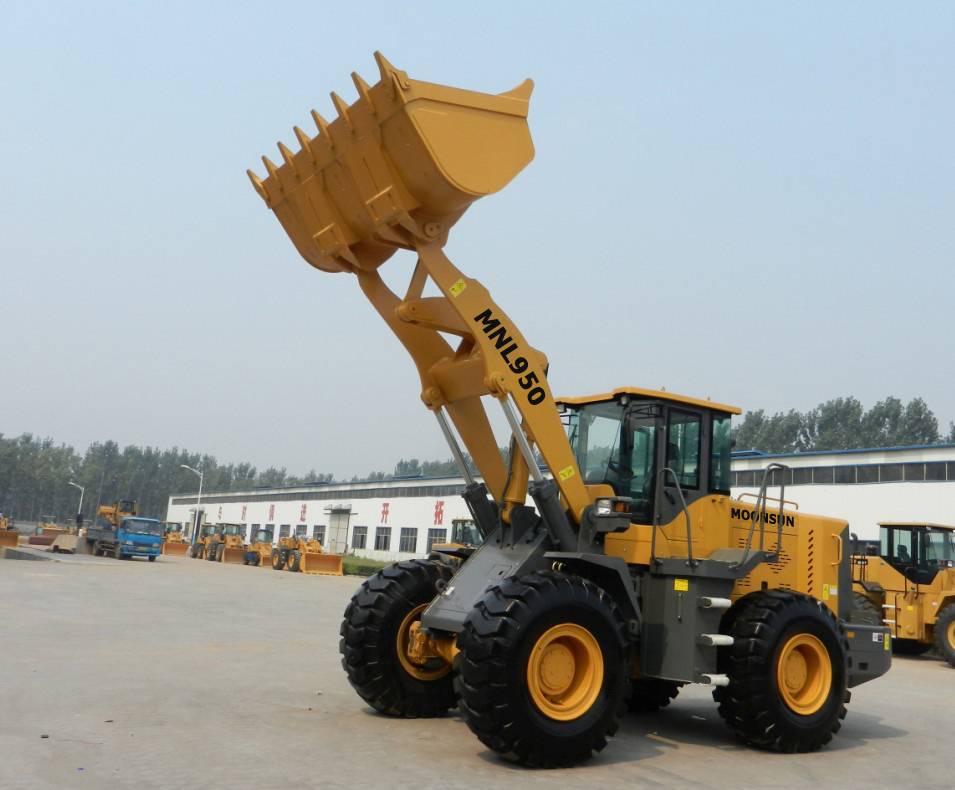

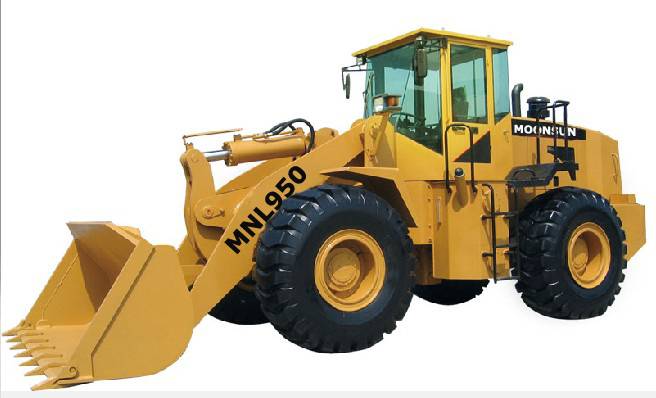

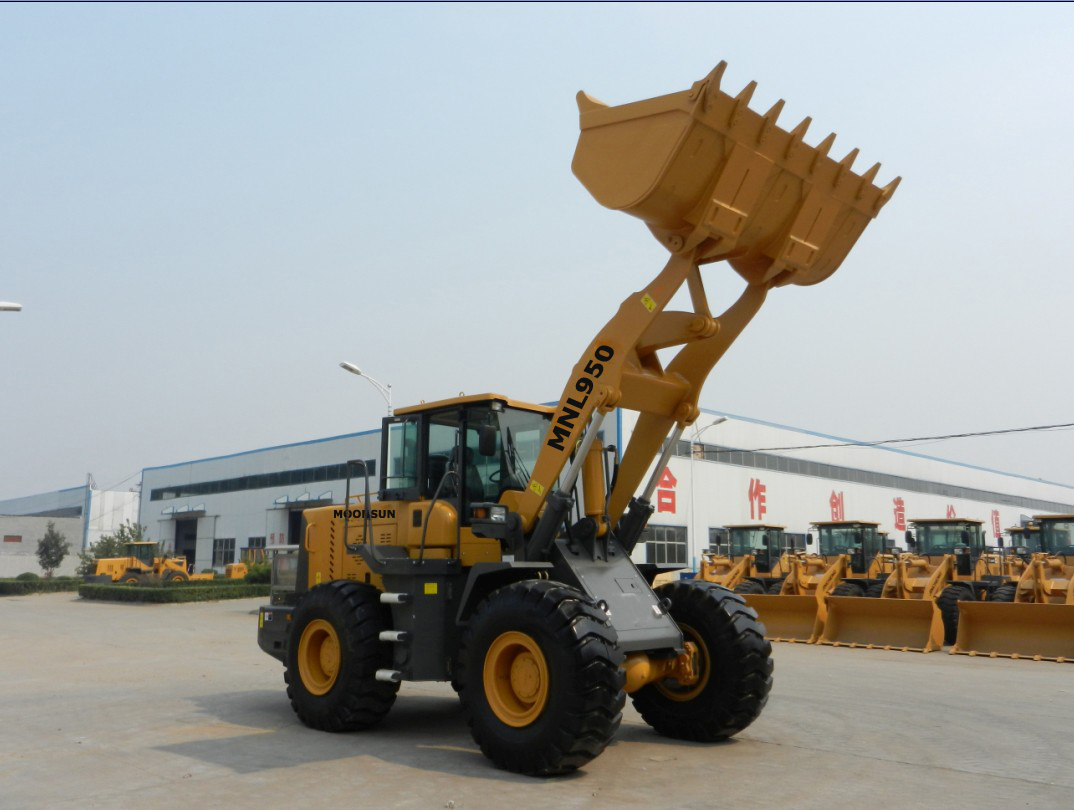

Model   MNL950

Brand   MOONSUN

MAIN SPECIFICATION

Operating weight    17000kg

Rated load capacity    5000kg

Bucket capacity   3.0cbm

Bucket width   3025mm

Overall dimensions(L×W×H)   8060×3080×3320mm

Wheel base   3200mm

Dumping height   3300mm

Dumping reach   1250mm

Tire size   23.5-25

Max traveling speed   30km/h

OPERATION SPECIFICATION

Breakout force   170Kn

Hydraulic system pressure setting   16Mpa

Hydraulic flow   160L/min

Hydraulic cycle times   <8S

Steering angle left/right   35°

Minimum turning radius over bucket   7750mm

Transmission type   Hydraulic pilot

Transmission gears   F2/R1

Axle brand   SDLG

Service brake   Air over hydraulic brake

Parking brake   Band brake

ENGINE

Engine model   WEICHAI (WD10G220E21)/CUMMINS(6CTA8.3-C215)

Engine power   162kw/160kw

Engine rated speed   2200r/min

Engine type   In-linewater-cooling4-stroke6 cylinderdirect-injection

Start type   Electric
