Operating weight:5200kg

Rated loading capacity:2000kg

Bukcet capacity:1.0CBM

Yunnei engine 76kw.

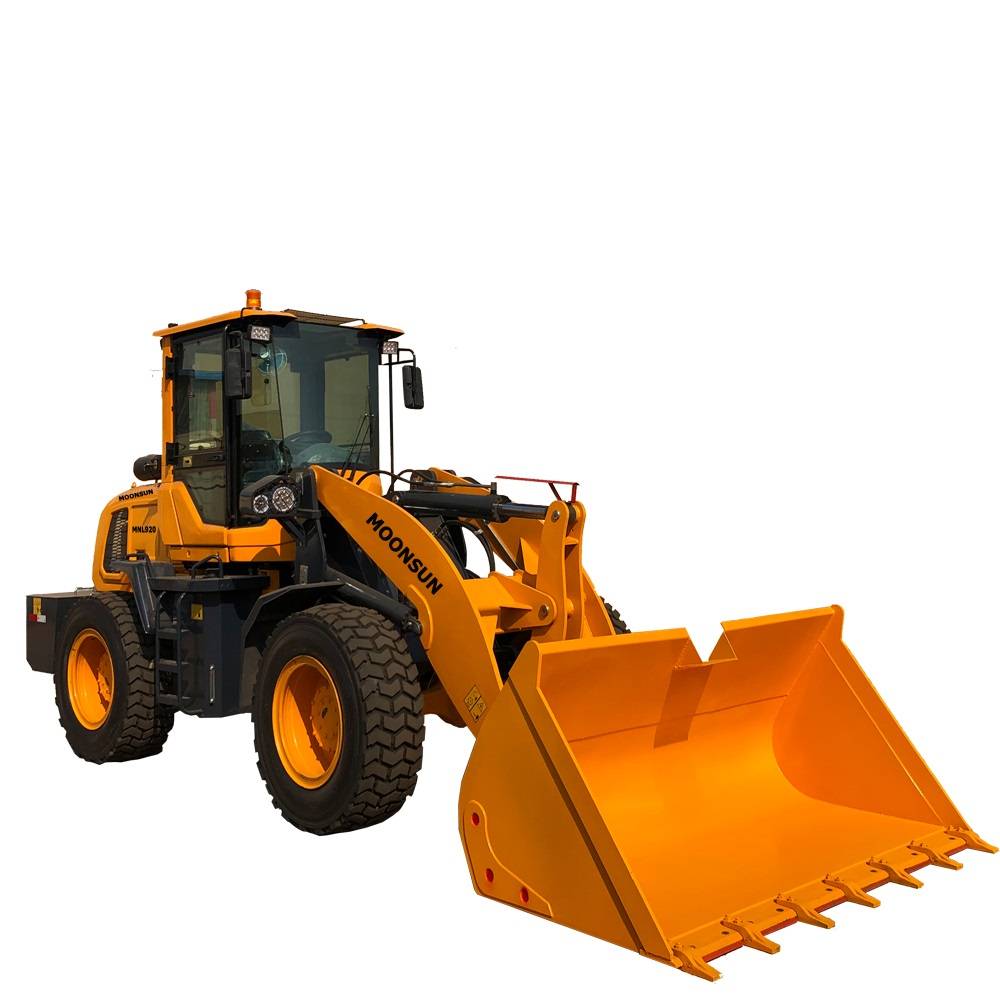

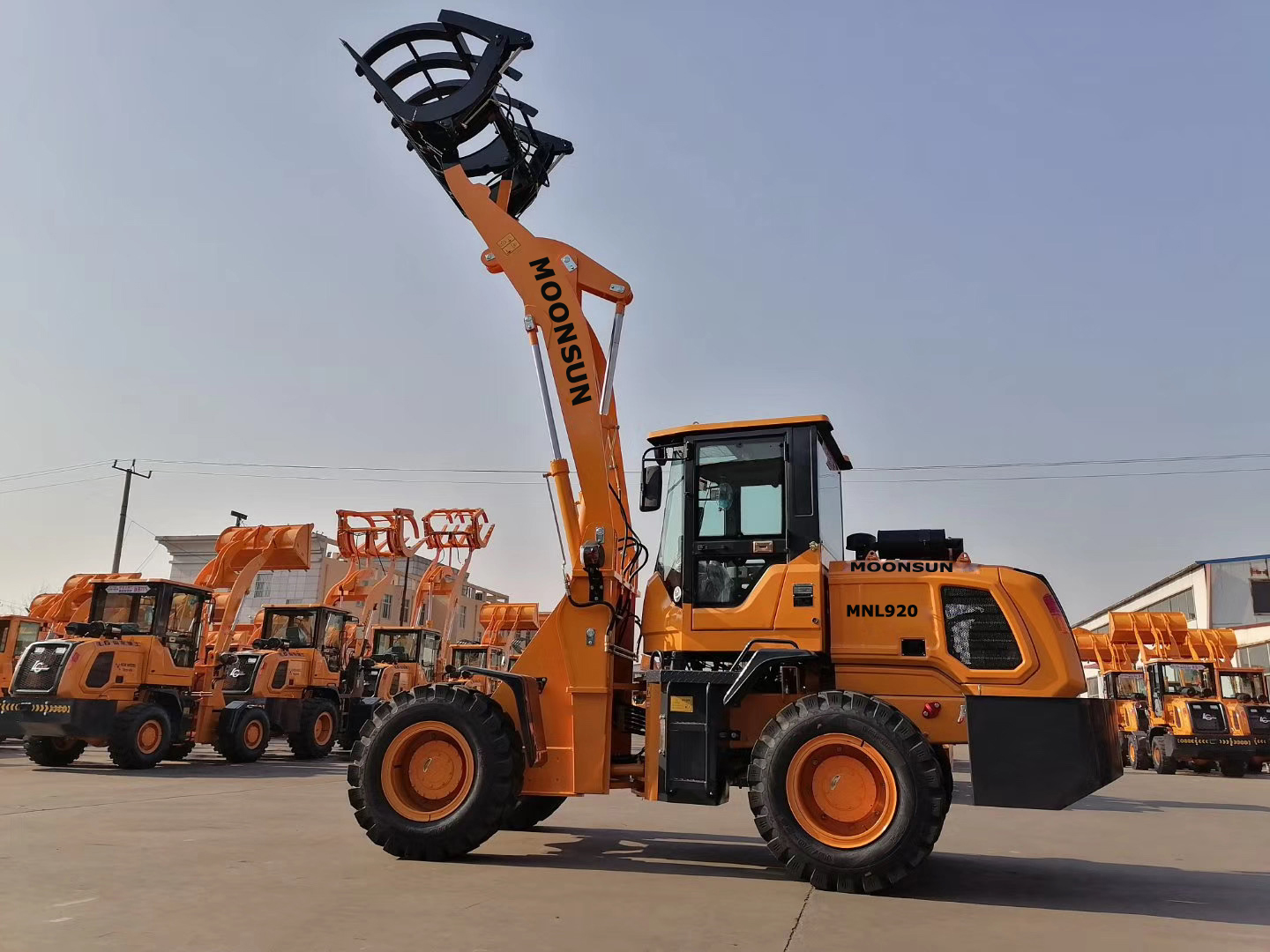

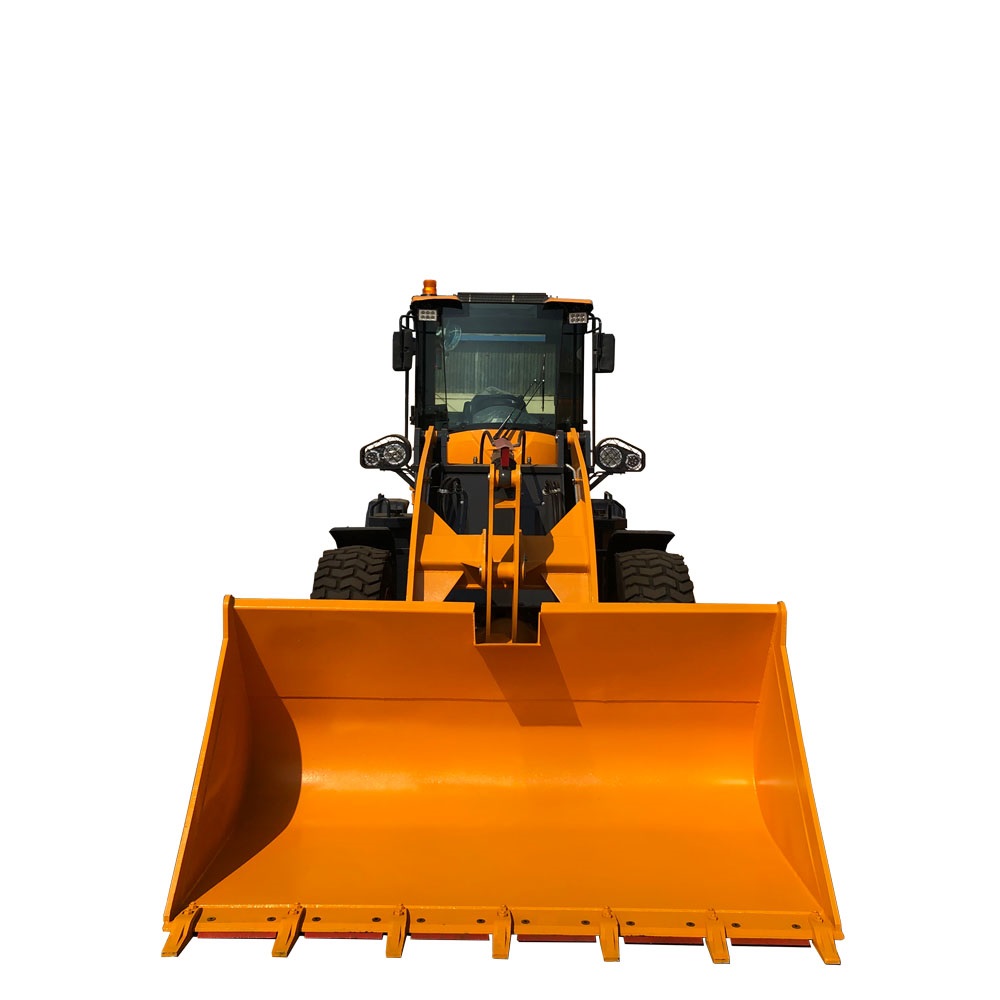

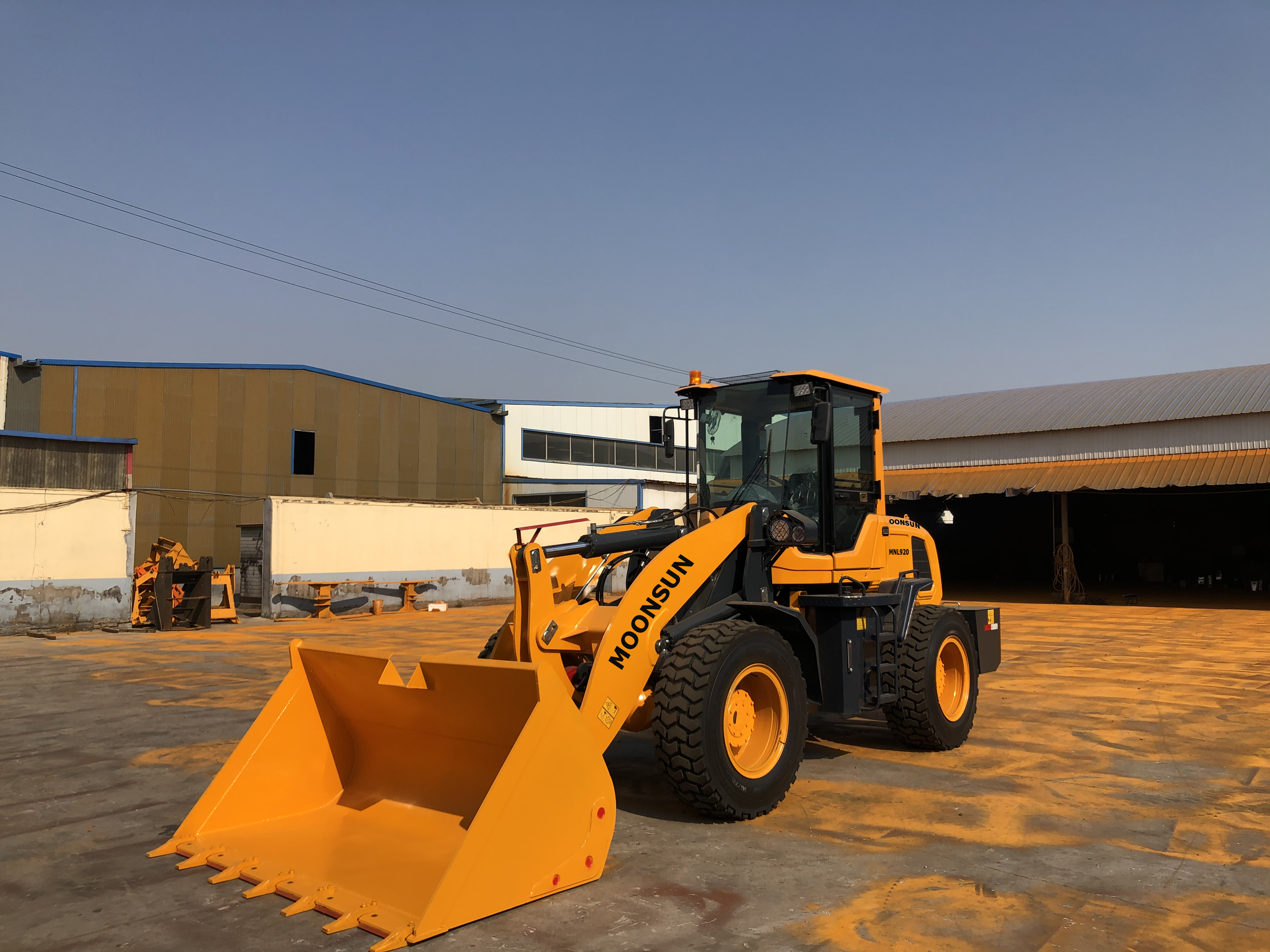

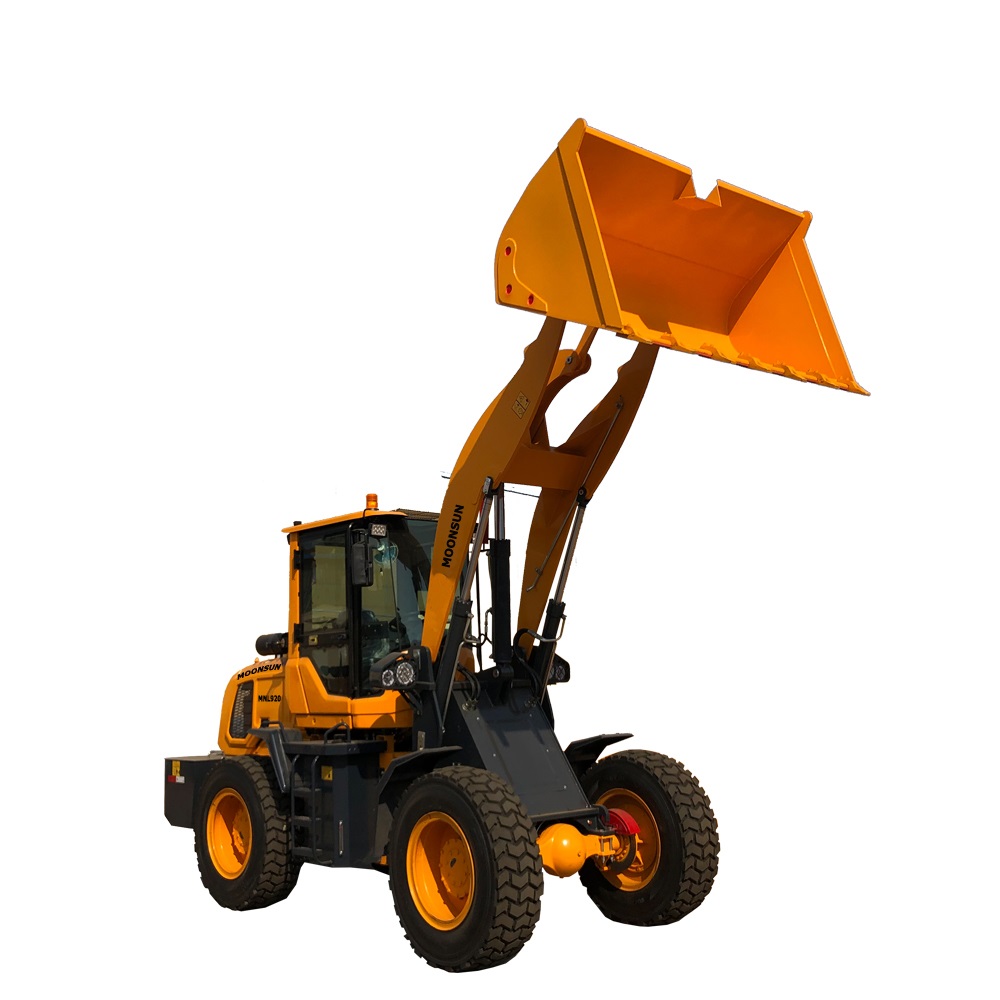

Model   MNL920

Brand   MOONSUN

MAIN SPECIFICATION

Operating weight    5200kg

Rated load capacity    2000kg

Bucket capacity   1.0cbm

Bucket width   1980mm

Overall dimensions(L×W×H)   5600×2000×2850mm

Wheel base   2150mm

Dumping height   3500mm

Dumping reach   1000mm

Tire size   16/70-20

Max traveling speed   28km/h

OPERATION SPECIFICATION

Breakout force   30Kn Hydraulic system pressure setting   18Mpa

Hydraulic flow   80L/min

Hydraulic cycle times   <9S

Steering angle left/right   36°

Minimum turning radius over bucket   5200mm

Transmission type   Mechanical pilot

Transmission gears   F3/R2

Axle brand   SDLG

Service brake   Oil brake

Parking brake   Drum

ENGINE

Engine model   YUNNEI (YN4102 Turbo-charge)

Engine power   76kw

Engine rated speed   2200r/min

Engine type   In-linewater-cooling4-stroke4 cylinderdirect-injection

Start type   Electric
