Operating weight:3700kg

Rated loading capacity:1500kg

Bukcet capacity:0.7CBM

Yunnei engine 37kw.

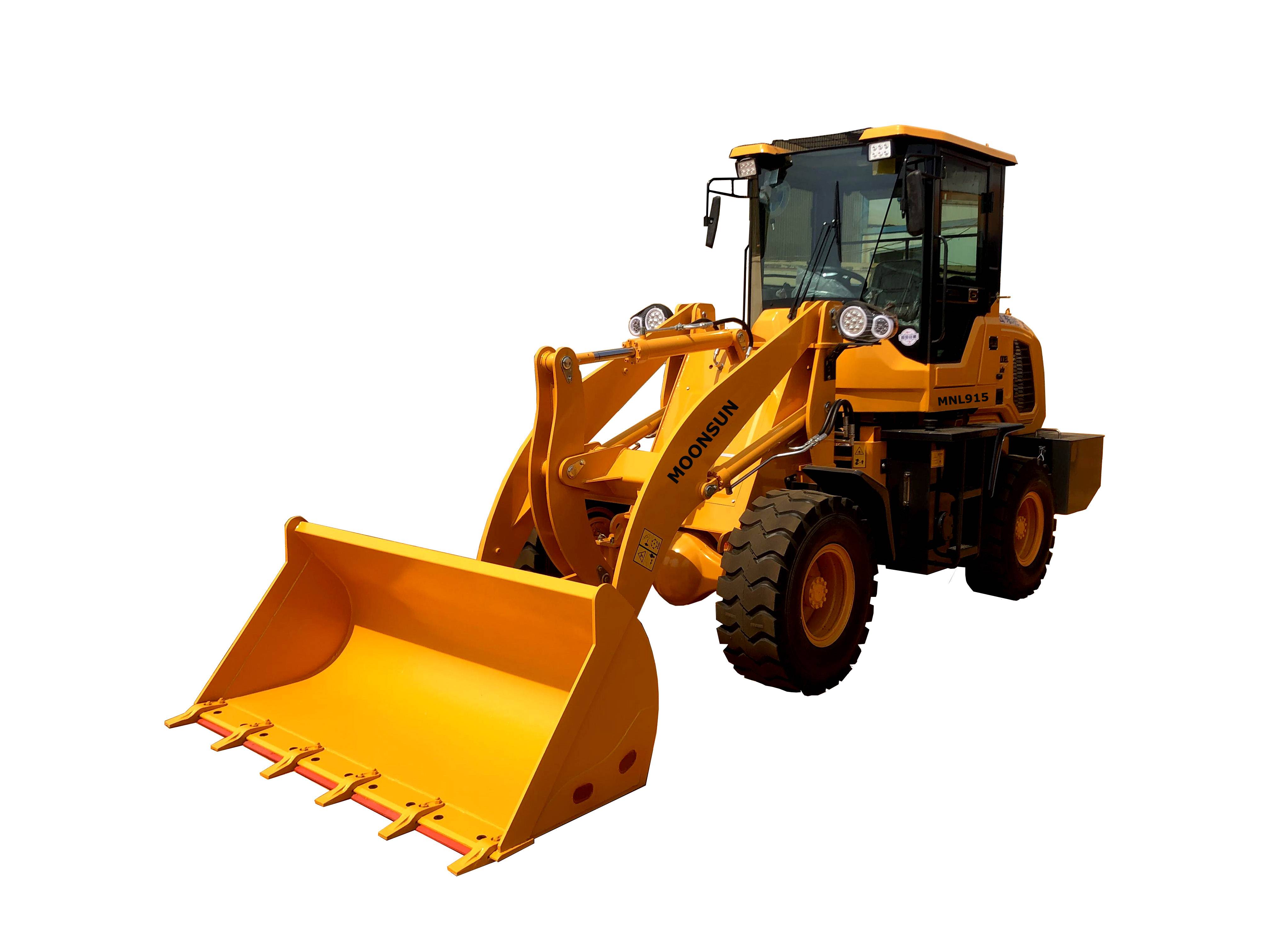

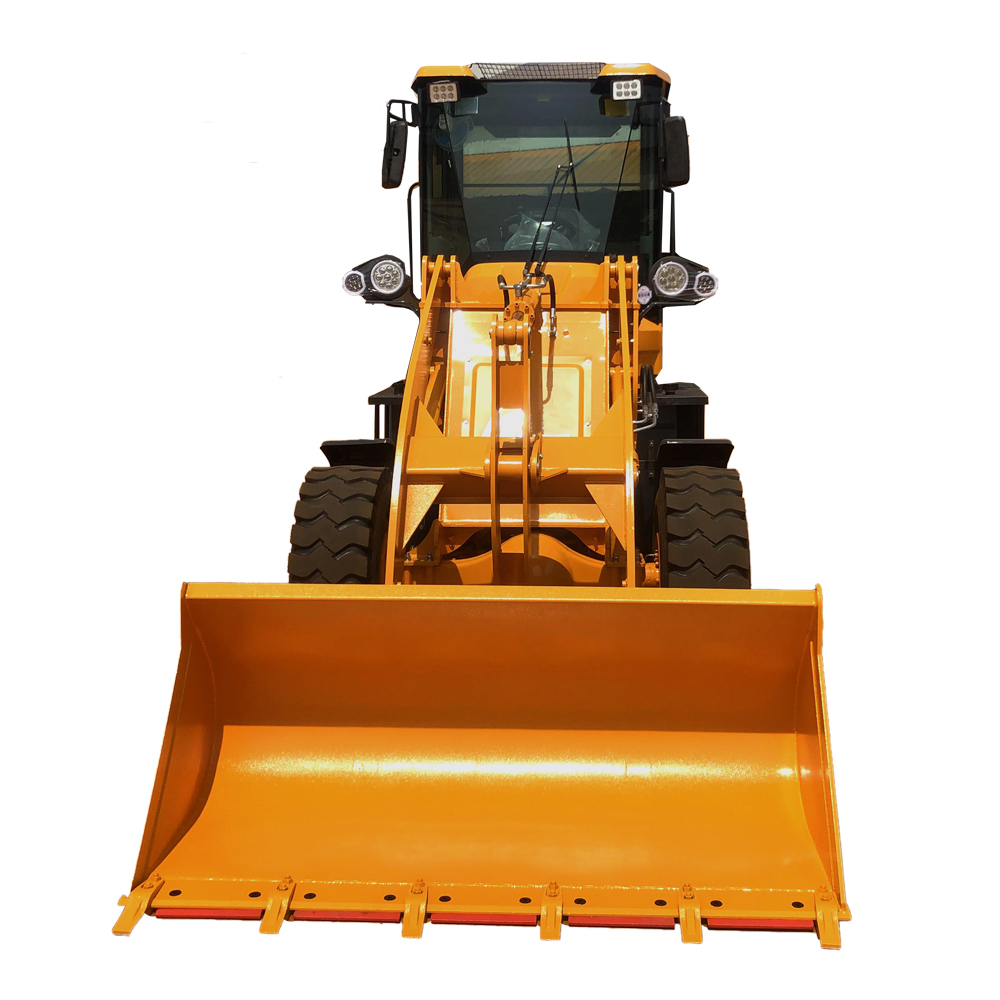

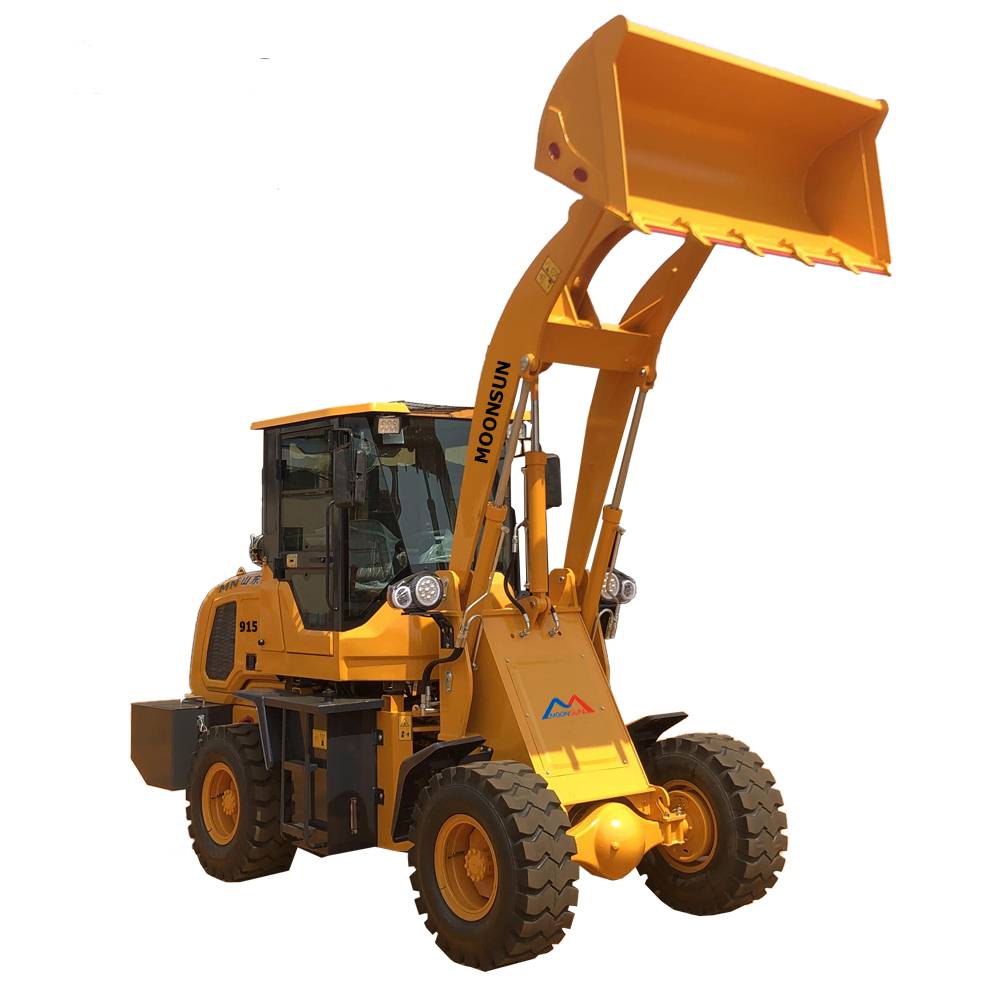

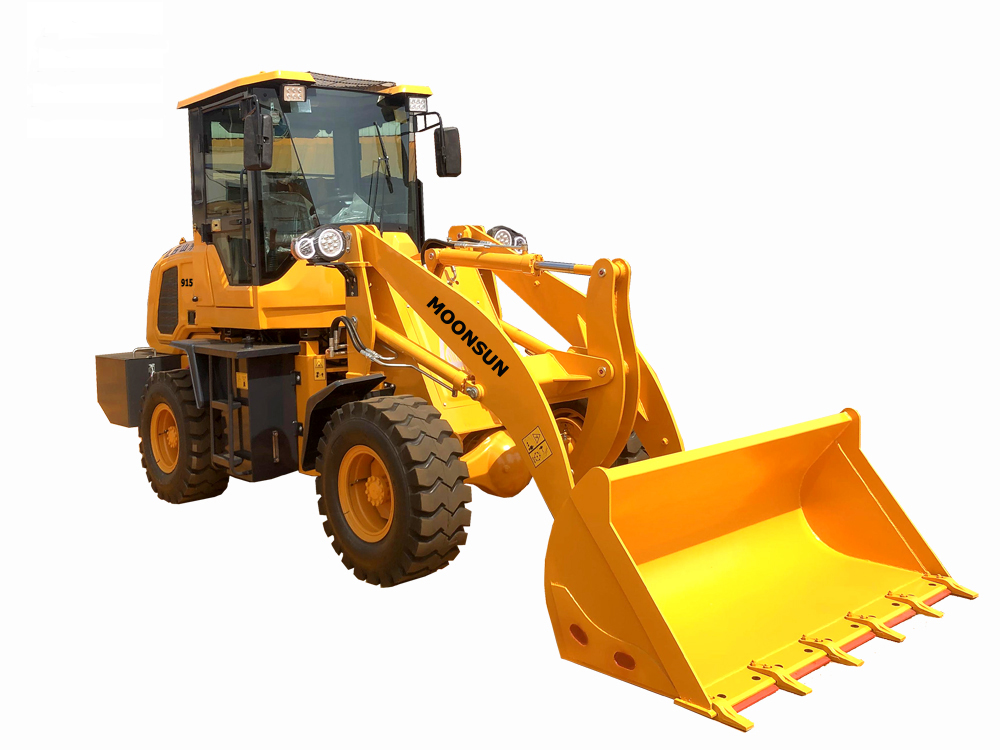

Model   MNL915

Brand   MOONSUN

MAIN SPECIFICATION

Operating weight    3700kg

Rated load capacity    1500kg

Bucket capacity   0.7cbm

Bucket width   1665mm

Overall dimensions(L×W×H)   5100×1765×2770mm

Wheel base   2095mm

Dumping height   3200mm

Dumping reach   890mm

Tire size   20.5-16

Max traveling speed   30km/h

OPERATION SPECIFICATION

Breakout force   30Kn

Hydraulic system pressure setting   16Mpa

Hydraulic flow   63L/min

Hydraulic cycle times   <9S

Steering angle left/right   36°

Minimum turning radius over bucket   4200mm

Transmission type   Mechanical

Transmission gears   F2/R2

Axle brand   SDLG

Service brake   Oil brake

Parking brake   Drum

ENGINE

Engine model   YUNNEI (YN490)

Engine power   37kw

Engine rated speed   2200r/min

Engine type   In-linewater-cooling4-stroke4 cylinderdirect-injection

Start type   Electric
