5ton

Can be diesel(XINCHAI ISUZU)

Can be mechanical and hydraulic side shift.

Can be 2 stages(4000mm/4500mm/5000mm/5500)

and 3 stages(4500mm/5000mm/6000mm/7300mm）.

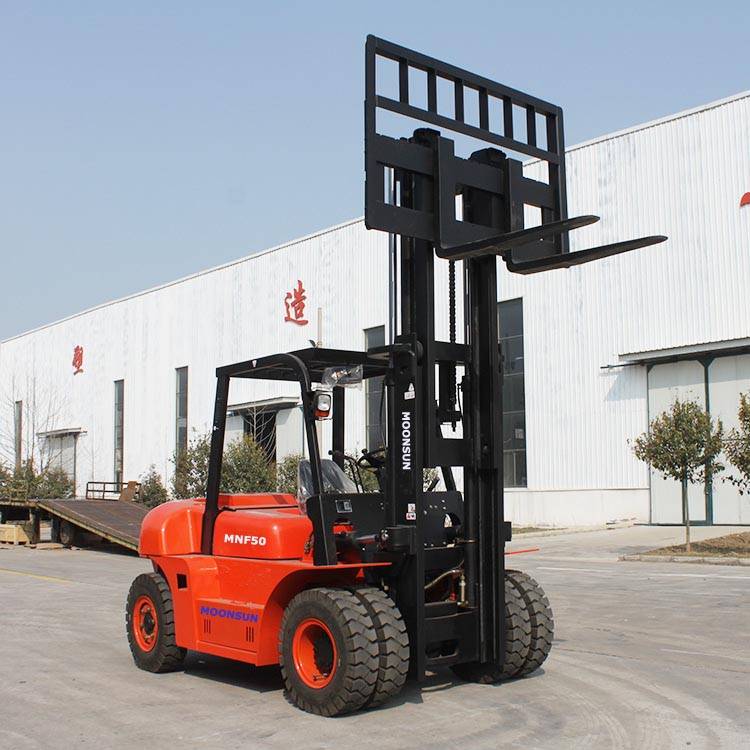

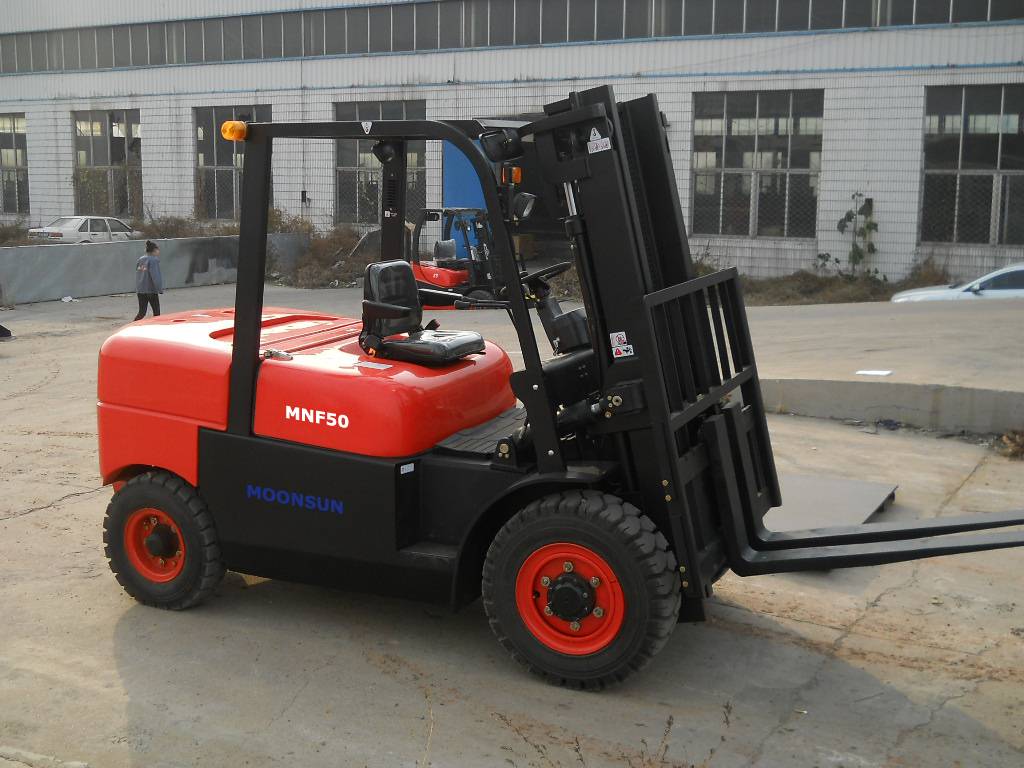

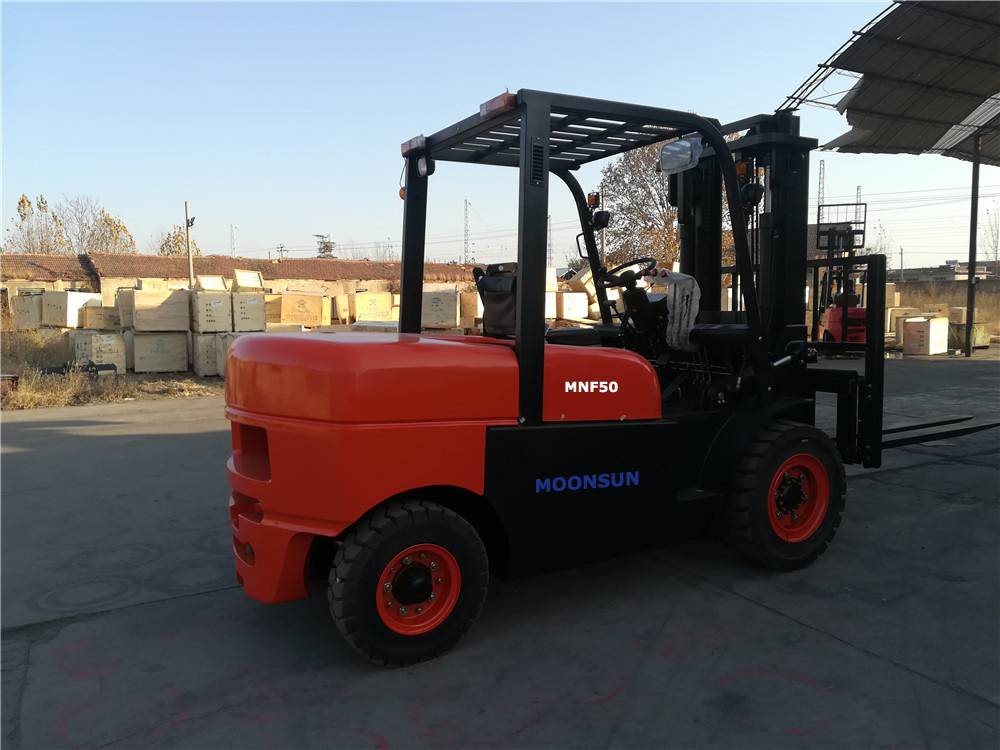

Model  MNF50 Brand  MOONSUN

MAIN SPECIFICATION

Total weight  8200kg

Load capacity   5000kg

Load center  600mm

Power type  Diesel

Max.lifting speeds(with load)  470mm/s

Max.driving speeds(with/without load)   21/23km/h

Max.towing(with/without load)   52/16KN

Gradeability(with/without load)  20/25%

Lifting height  3000mm

Free lift  150mm

Tilting angles(forward-backward)   6/12mm

Min.turning radius  3430mm

Min.right angle aisle width   3090mm

Min.under-clearance  230mm

Overall length(include fork)   4760mm

Overall width  1995mm

Overall height(mast lowered)   2500mm

Overall height(mast extended)   4420mm

Overall height to overhead guard  2420mm

Fork overhang   630mm

Wheel base  2250mm

Front tread  1470mm

Rear tread  1700mm

Front tyre  8.25-15-14

Rear tyre  8.25-15-14

Fork length   1220mm

Fork width  150mm

Fork thickness   55mm

Backrest height   1365mm

Engine model  CHAOCHAI(6102)

Rate power   80.9kw

Rotate speed at rate power   2500rpm

Max.torque  353Nm

Rotate speed at max torque  1650rpm

Battery   2-12V/80AH

Type of power shift  Hydraulic
