5ton

Can be diesel(XINCHAI ISUZU) type.

Can be mechanical and hydraulic side shift.

Can be 2 stages(4000mm/4500mm/5000mm/5500)

and 3 stages(4500mm/5000mm/6000mm/7300mm).

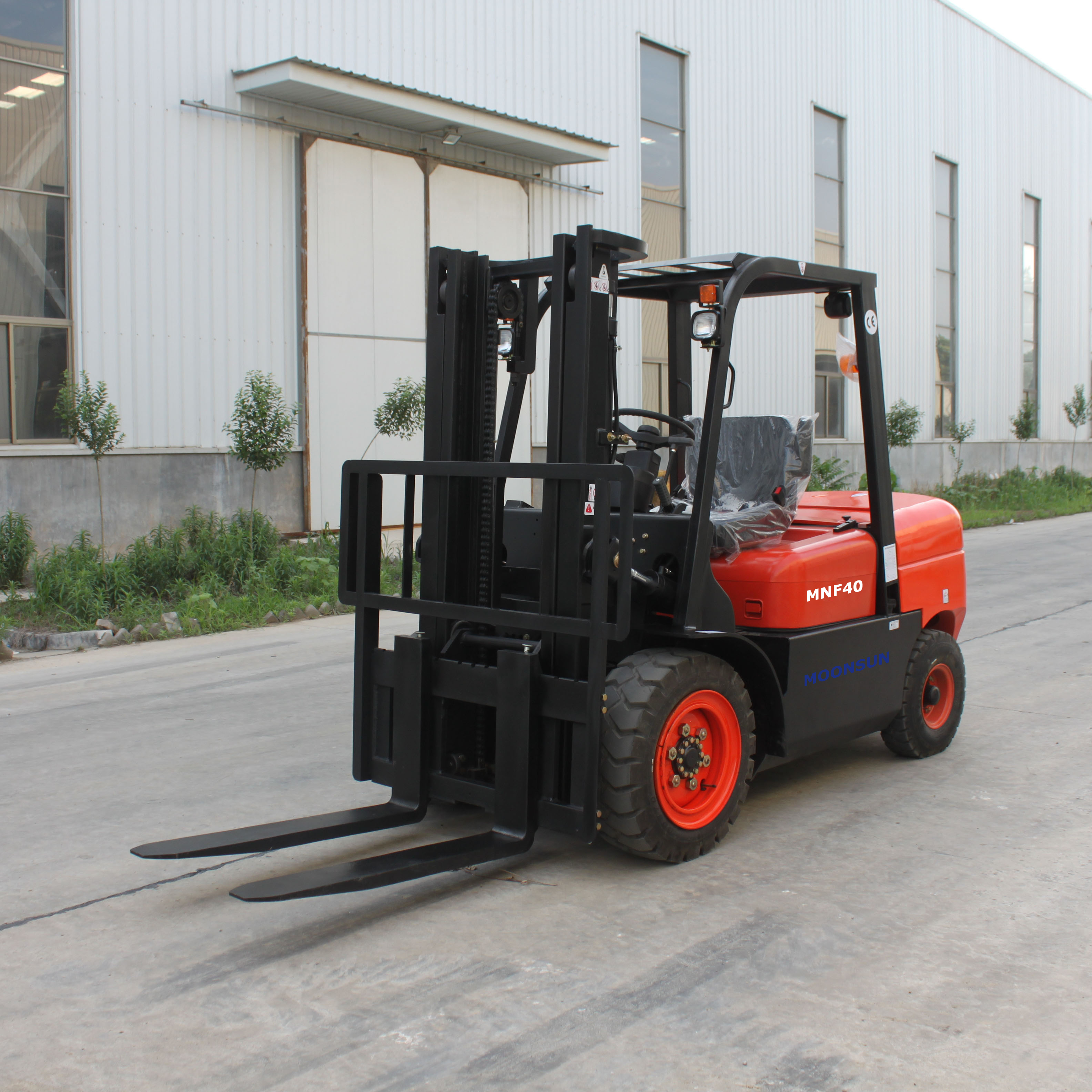

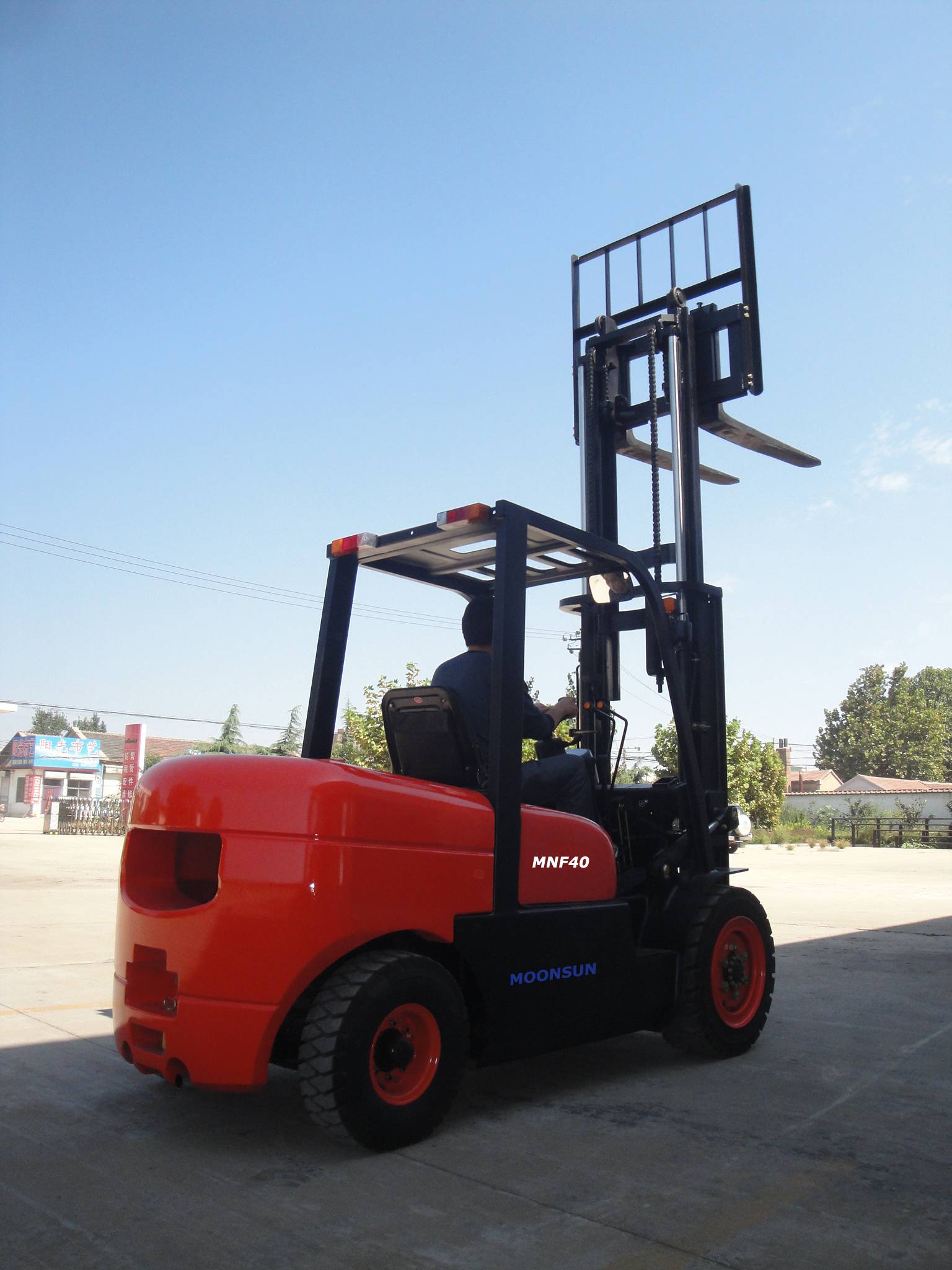

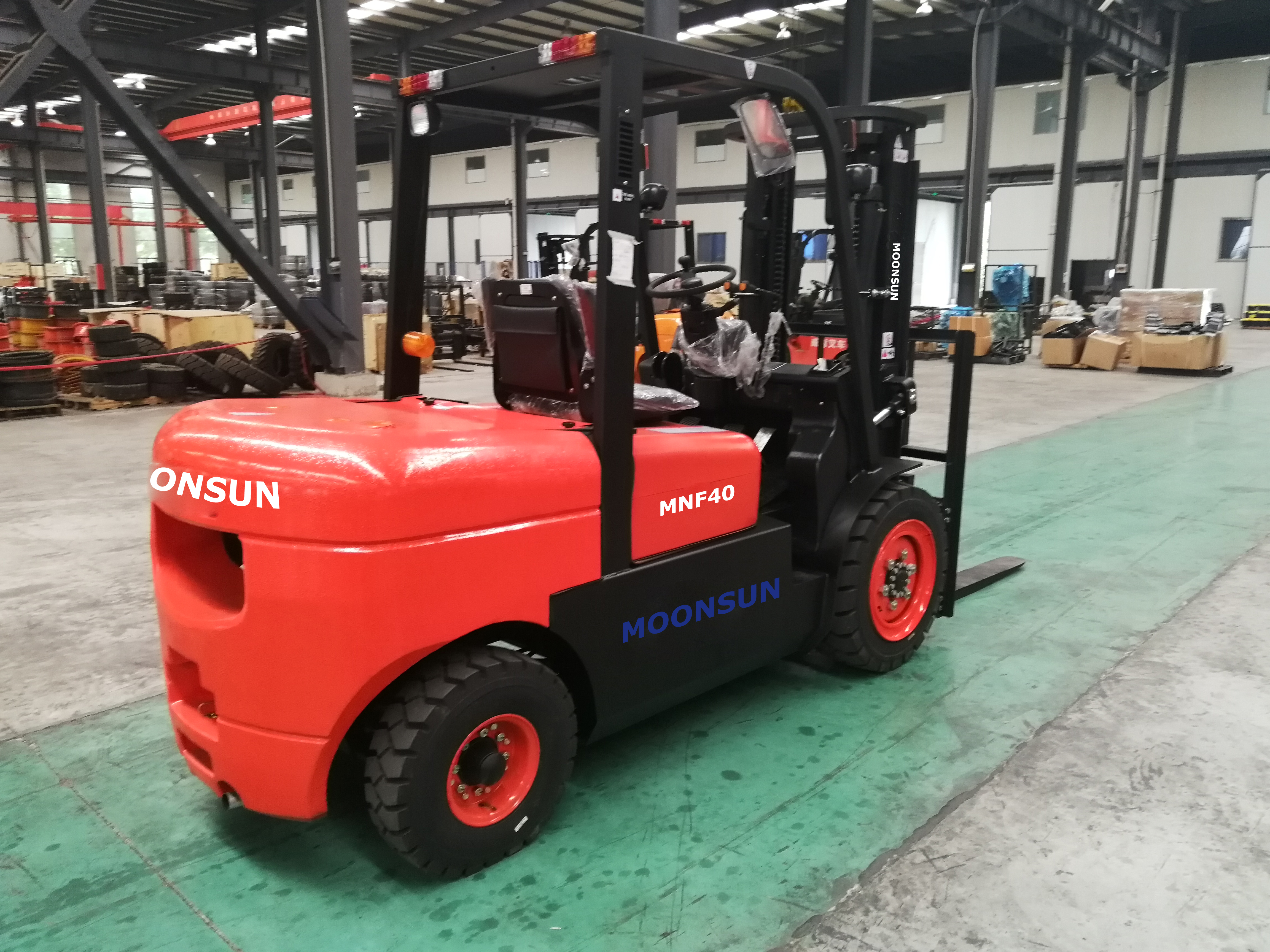

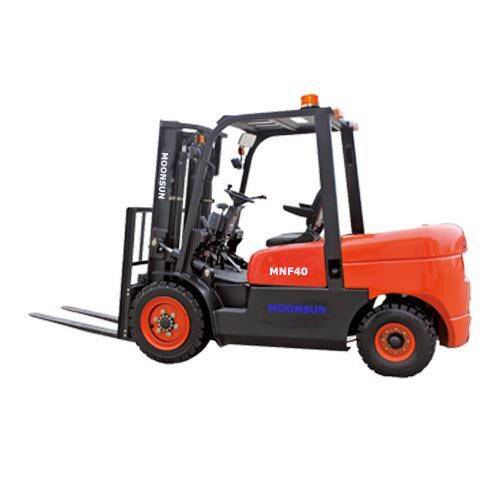

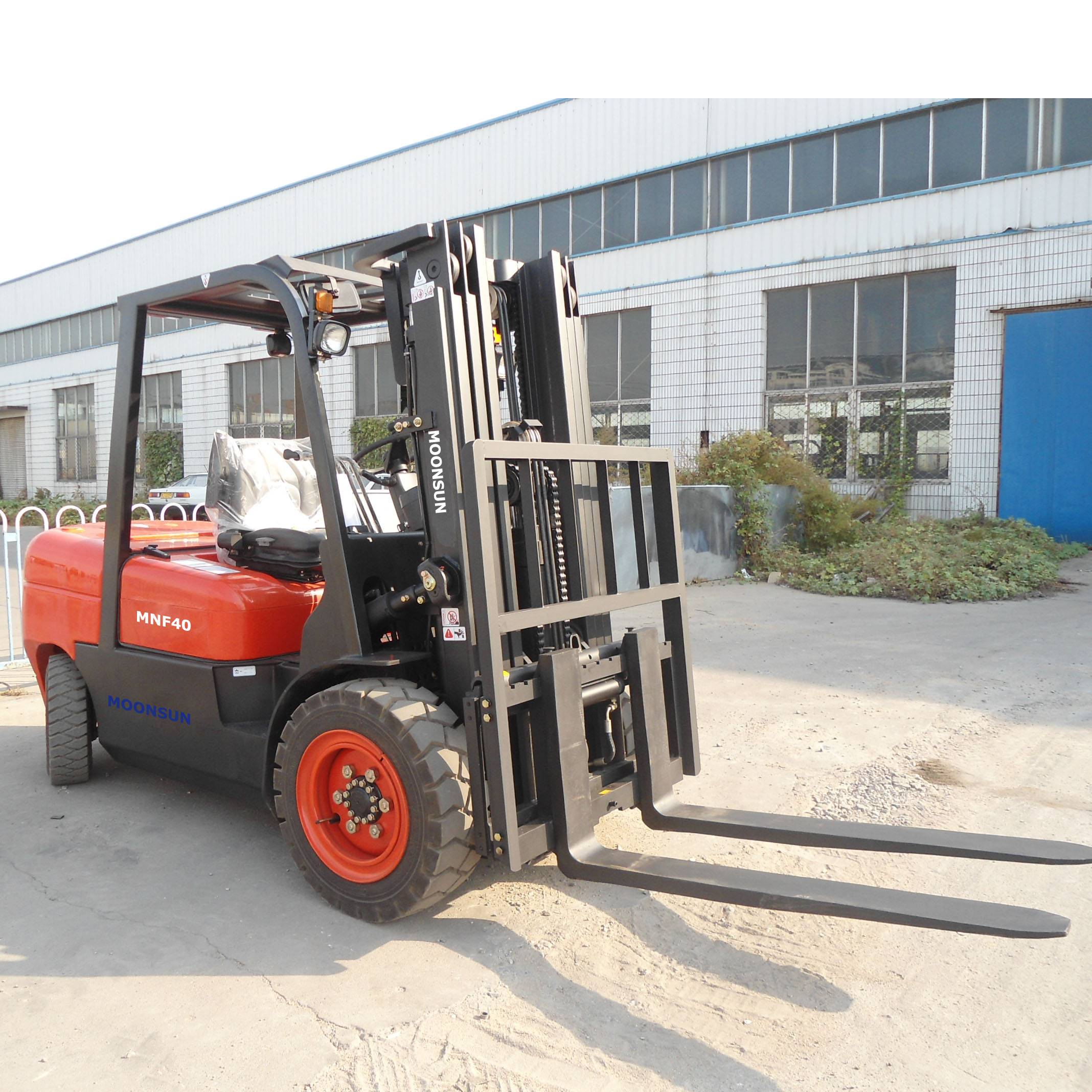

Model  MNF40

Brand  MOONSUN

MAIN SPECIFICATION

Total weight  5000kg

Load capacity  4000kg

Load center  500mm

Power type  Diesel

Max.lifting speeds(with load) V 300mm/s

Max.driving speeds(with/without load)   18/20km/h

Max.towing(with/without load)  16.5/11.5KN

Gradeability(with/without load)  15/20%

Lifting height  3000mm

Free lift  80mm

Tilting angles(forward-backward)   6/12mm

Min.turning radius  2720mm

Min.right angle aisle width   2320mm

Min.under-clearance   135mm

Overall length(include fork)  4100mm

Overall width  1230mm

Overall height(mast lowered)  2110mm

Overall height(mast extended)   4270mm

Overall height to overhead guard   2110mm

Fork overhang   470mm

Wheel base  1900mm

Front tread  1060mm

Rear tread  970mm

Front tyre  250-155

Rear tyre  6.50-10

Fork length  1220mm

Fork width  150mm

Fork thickness   45mm

Backrest height   1225mm

Engine model  XINCHAI(498)

Rate power  48kw

Rotate speed at rate power   2450rpm

Max.torque  215Nm

Rotate speed at max torque   1700rpm

Type of power shift  Hydraulic
