3.0ton

Can be diesel(XINCHAI YANMAR ISUZU) and battery and Lpg &gGasoline type.

Can be mechanical and hydraulic side shift.

Can be 2 stages(3300mm/3500mm/4000mm/4500mm/5000mm)

and 3 stages(4500mm/5000mm/6000mm/7300mm).

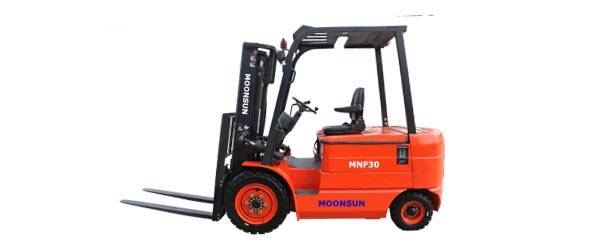

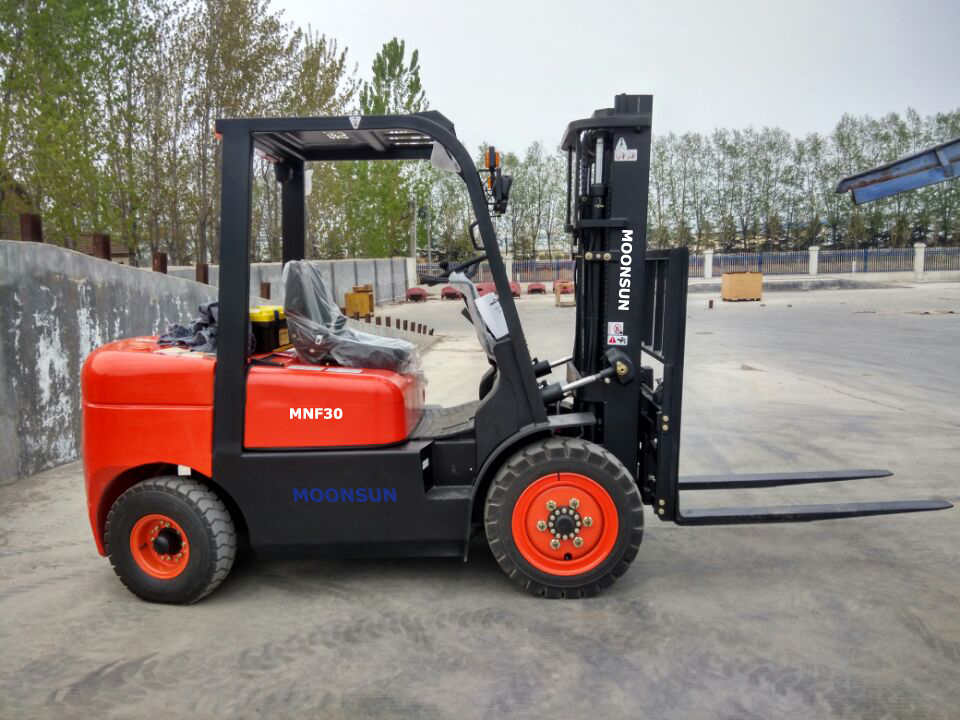

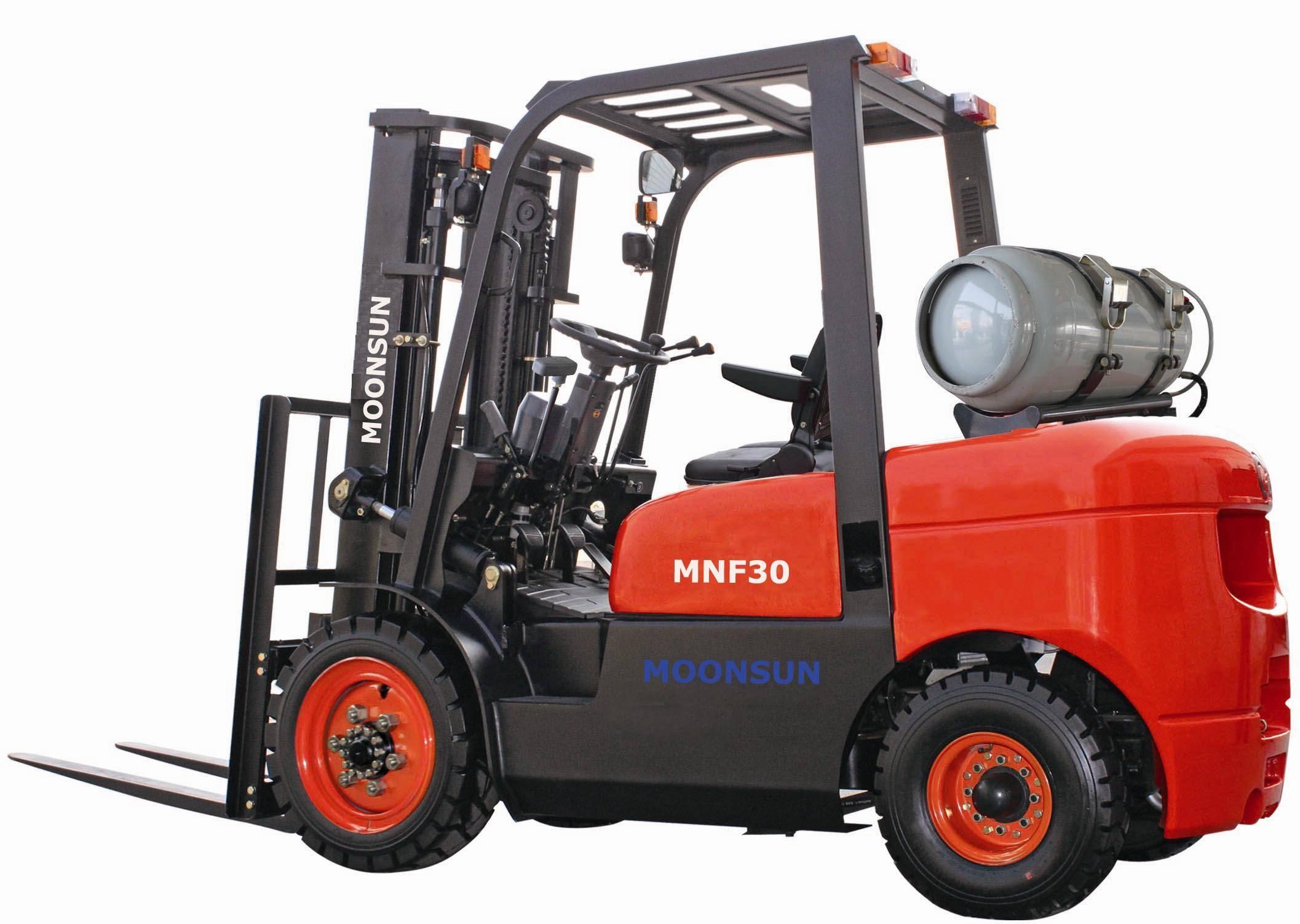

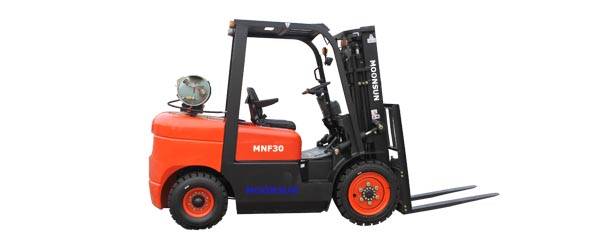

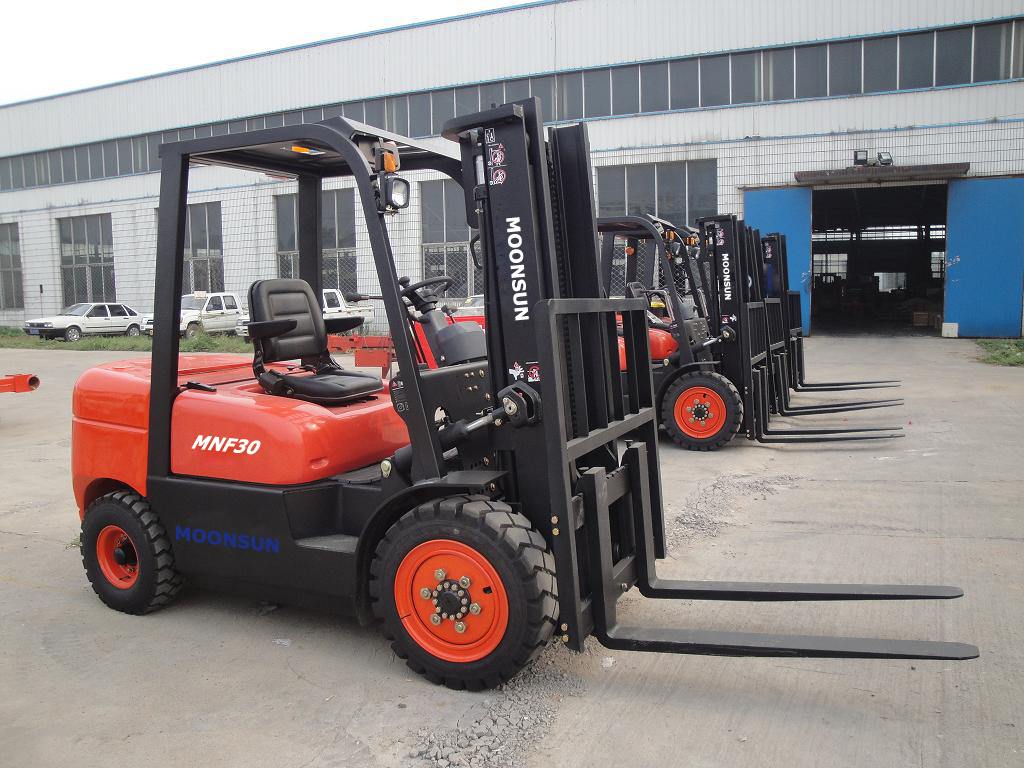

Model  MNF30

Brand  MOONSUN

MAIN SPECIFICATION

Total weight  4320kg

Load capacity  3000 kg

Load center  500mm

Power type  Diesel

Max.lifting speeds(with load)   400mm/s

Max.driving speeds(with/without load)  18/20km/h

Max.towing(with/without load)   15.5/10.5KN

Gradeability(with/without load)   15/20%

Lifting height  3000mm

Free lift  80mm

Tilting angles(forward-backward)   6/12mm

Min.turning radius   2500mm

Min.right angle aisle width   2110mm

Min.under-clearance  135mm

Overall length(include fork)   3800mm

Overall width  1230mm

Overall height(mast lowered)  2110mm

Overall height(mast extended)  4270mm

Overall height to overhead guard   2110mm

Fork overhang  465mm

Wheel base  1750mm

Front tread  1000mm

Rear tread   970mm

Front tyre  28x9-15

Rear tyre  6.50-10

Fork length  1220mm

Fork width  125mm

Fork thickness   45mm

Backrest height  1225mm

Engine model  XINCHAI(490)

Rate power  39kw

Rotate speed at rate power   2650rpm

Max.torque  161Nm

Rotate speed at max torque  1800rpm

Type of power shift  Hydraulic
