2.5ton

Can be diesel(XINCHAI YANMAR ISUZU) and battery and Lpg &gGasoline type.

Can be mechanical and hydraulic side shift.

Can be 2 stages(3300mm/3500mm/4000mm/4500mm/5000mm)

and 3 stages(4500mm/5000mm/6000mm/7300mm).

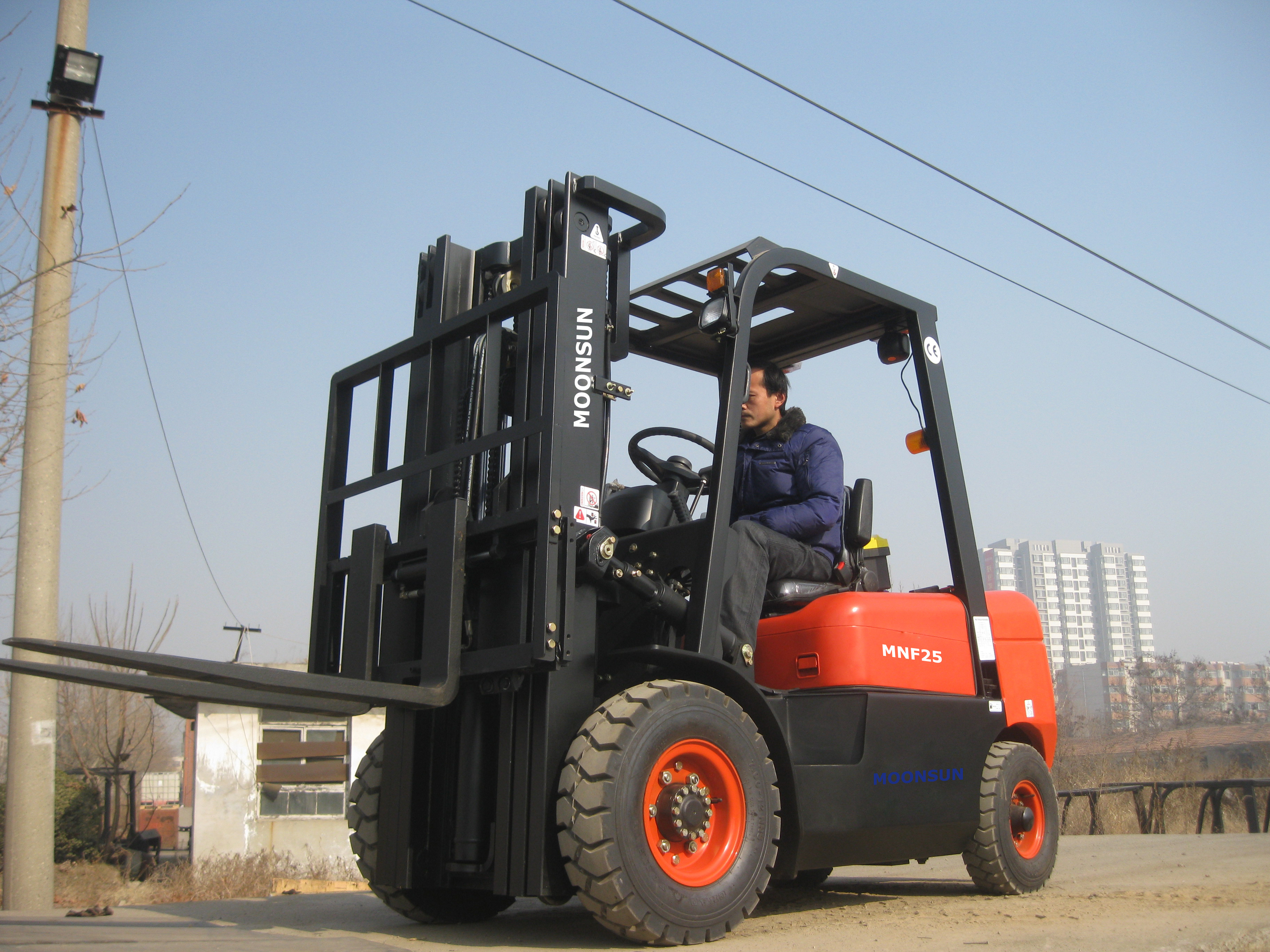

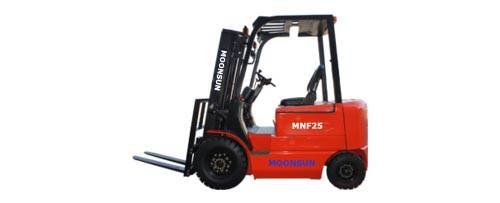

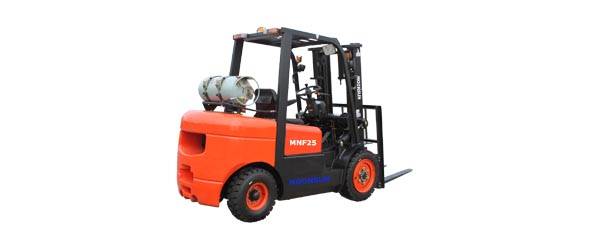

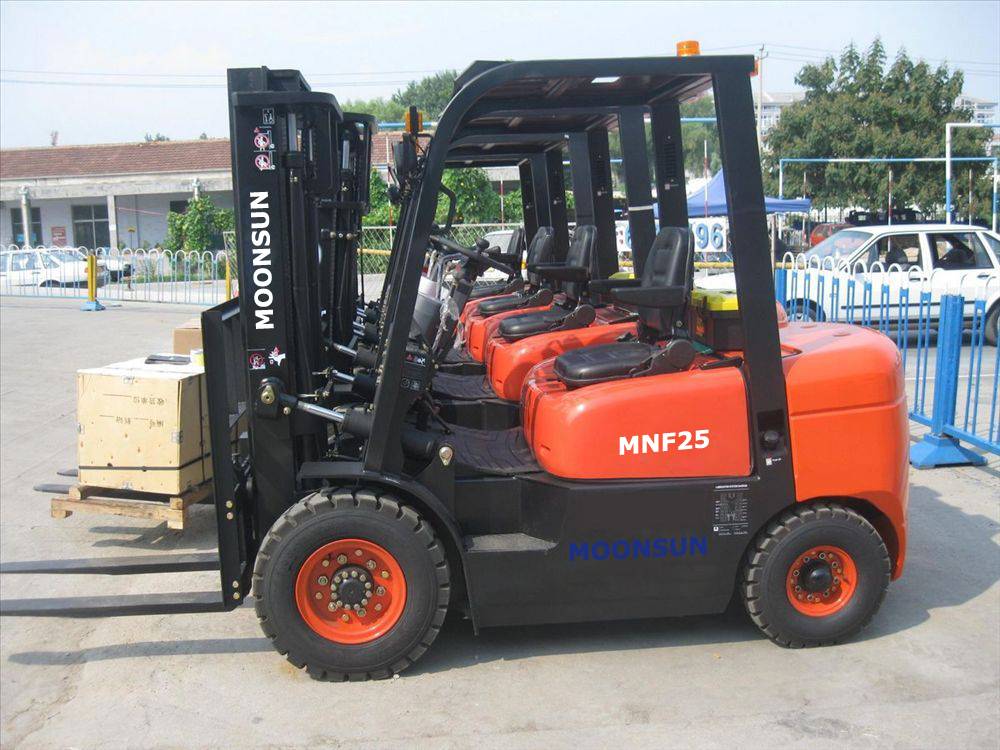

Model  MNF25

Brand  MOONSUN

MAIN SPECIFICATION

Total weight  3650kg

Load capacity  2500kg

Load center  500mm

Power type  Diesel

Max.lifting speeds(with load)   400mm/s

Max.driving speeds(with/without load)   17/19km/h

Max.towing(with/without load)  15/10KN

Gradeability(with/without load)  15/20%

Lifting height  3000mm

Free lift  60mm

Tilting angles(forward-backward)  6/12mm

Min.turning radius  2450mm

Min.right angle aisle width  2050mm

Min.under-clearance  110mm

Overall length(include fork)   3605mm

Overall width  1160mm

Overall height(mast lowered)  2095mm

Overall height(mast extended)   4080mm

Overall height to overhead guard   2095mm

Fork overhang  450mm

Wheel base  1640mm

Front tread  970mm

Rear tread  970mm

Front tyre  7.00-12

Rear tyre  6.00-9

Fork length  1070mm

Fork width  122mm

Fork thickness   40mm

Backrest height   1000mm

Engine model  XINCHAI(490)

Rate power  39kw

Rotate speed at rate power   2650rpm

Max.torque  176Nm

Rotate speed at max torque  1600rpm

Type of power shift  Hydraulic
