2.0ton

Can be diesel(XINCHAI YANMAR ISUZU) and battery and Lpg &gGasoline type.

Can be mechanical and hydraulic side shift.

Can be 2 stages(3300mm/3500mm/4000mm/4500mm/5000mm)

and 3 stages(4500mm/5000mm/6000mm/7300mm).

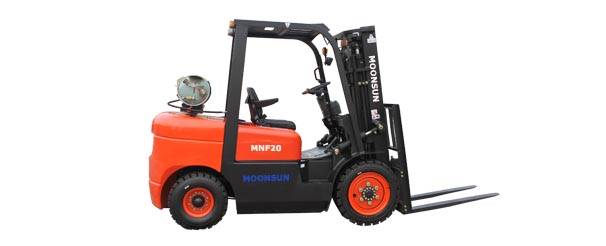

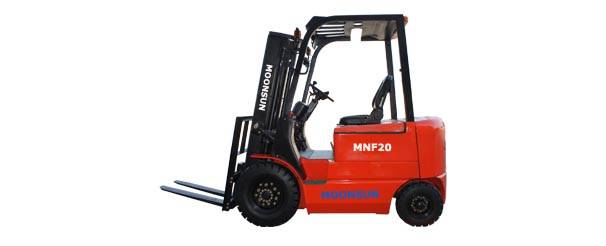

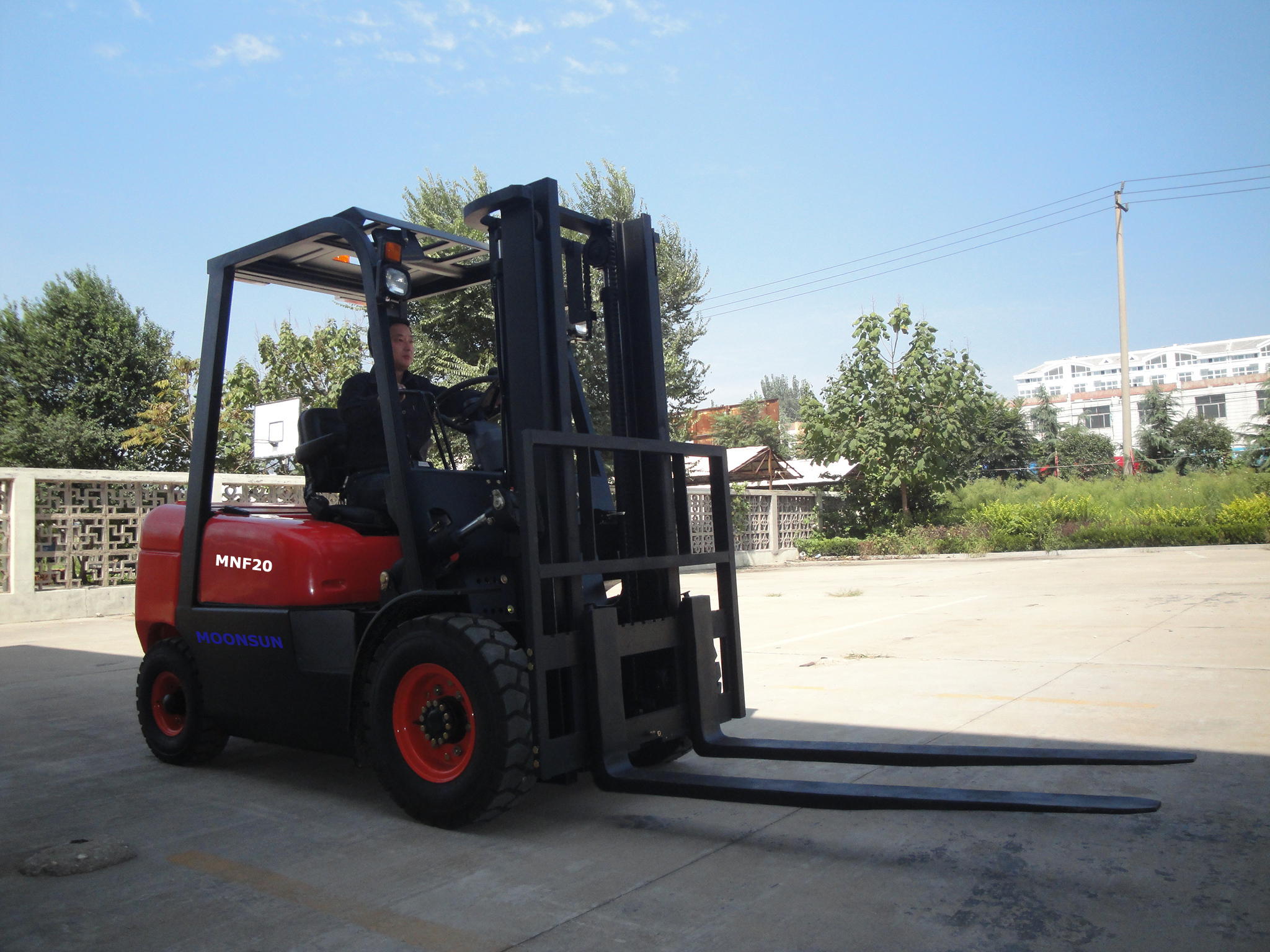

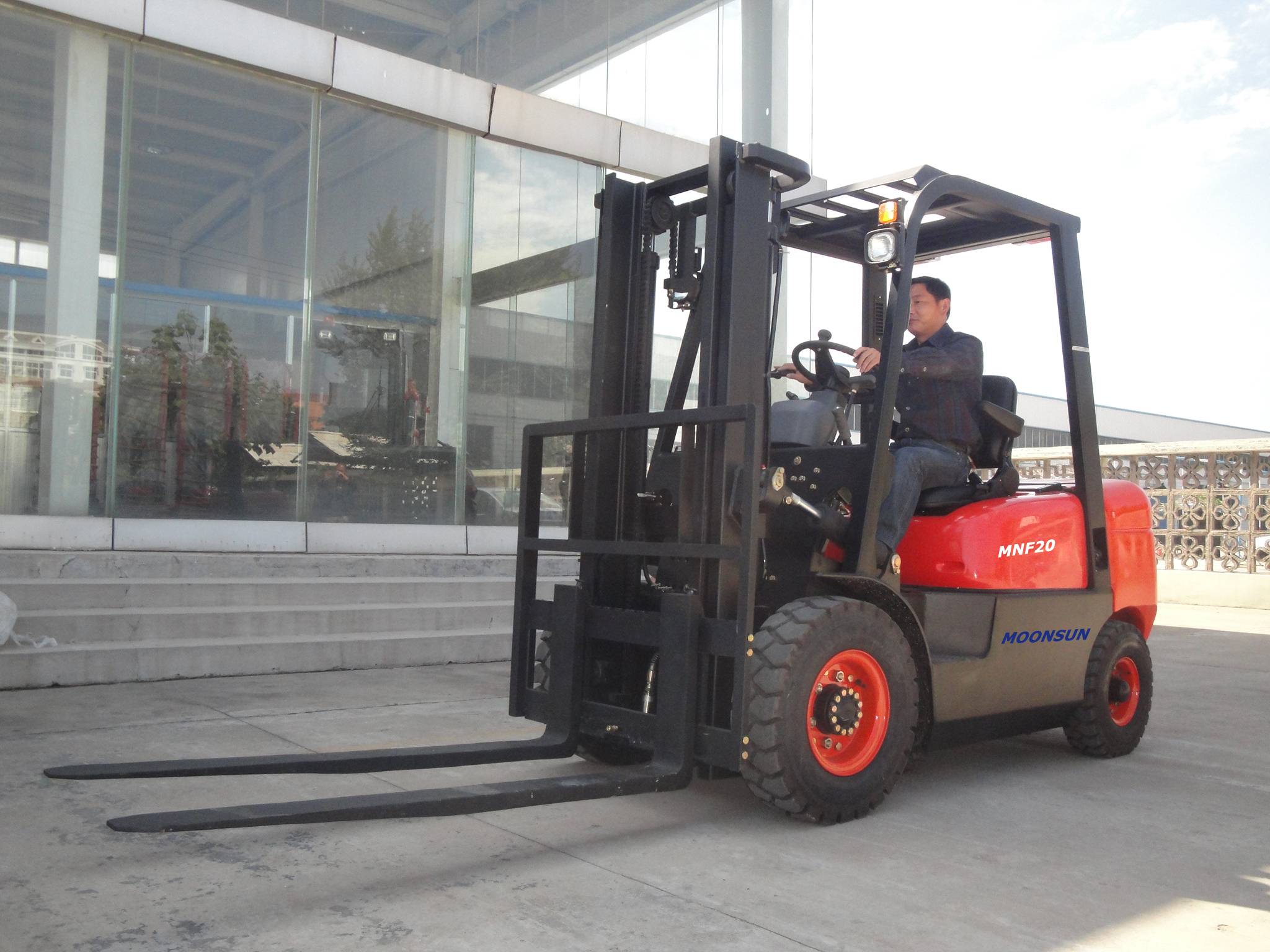

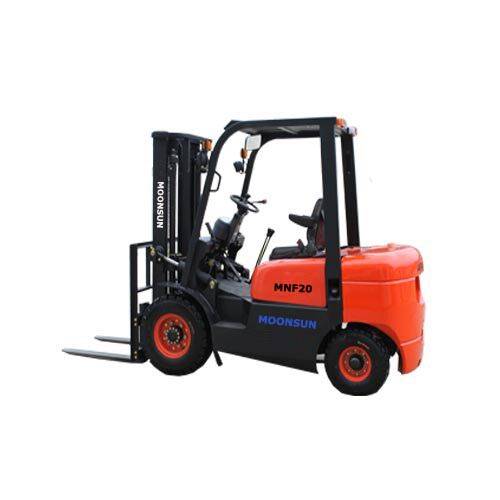

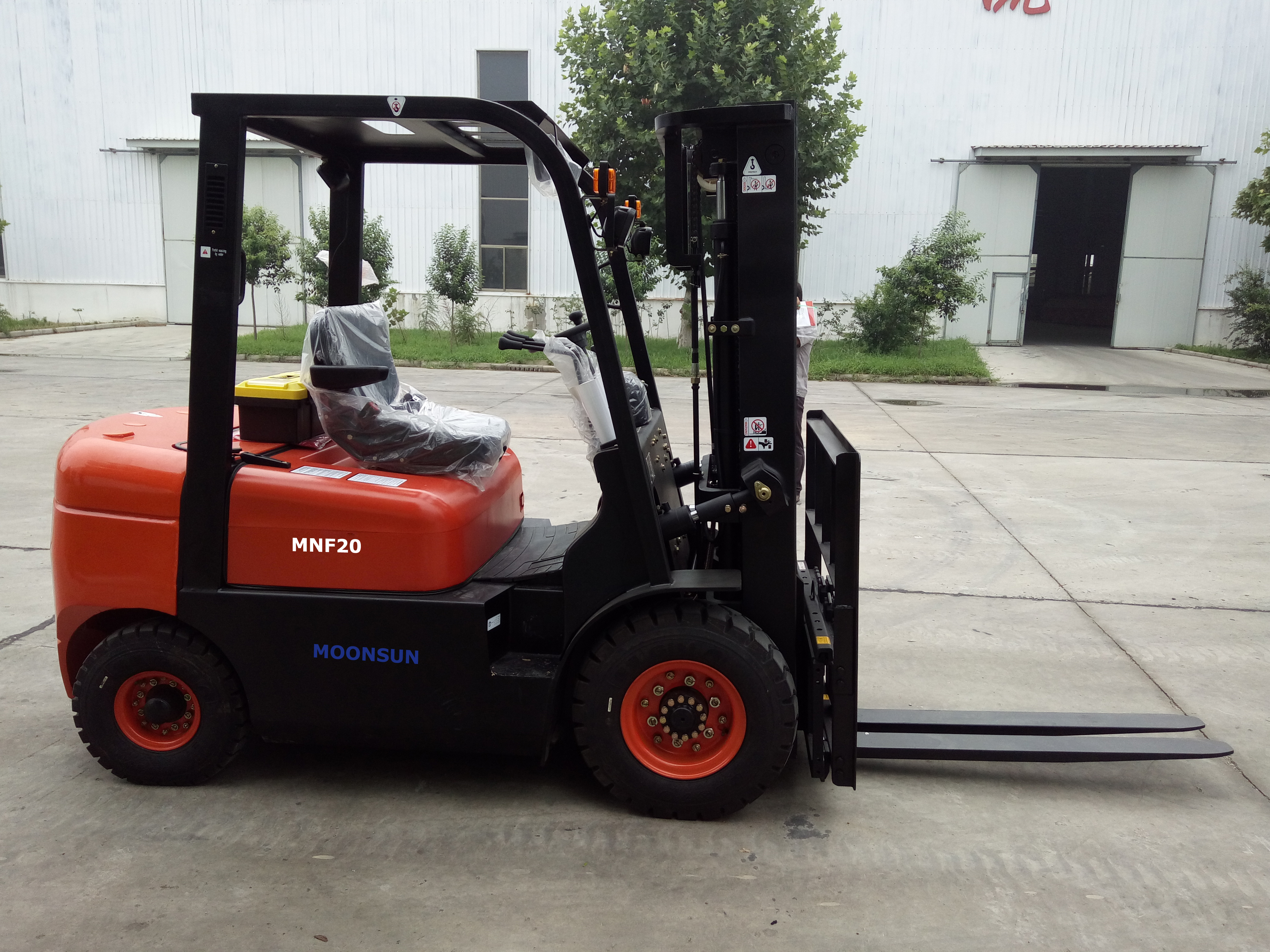

Model   MNF20

Brand   MOONSUN

MAIN SPECIFICATION

Total weight   3350kg

Load capacity   2000kg

Load center   500mm

Power type   Diesel/Battery/LPG and Gasoline

Max.lifting speeds(with load)   400mm/s

Max.driving speeds(with/without load)   17/19km/h

Max.towing(with/without load)   14/9KN

Gradeability(with/without load)   15/20%

Lifting height   3000mm

Free lift   60mm

Tilting angles(forward-backward)   6/12mm

Min.turning radius   2450mm

Min.right angle aisle width   2050mm

Min.under-clearance   110mm

Overall length(include fork)   3605mm

Overall width   1160mm

Overall height(mast lowered)   2095mm

Overall height(mast extended)   4080mm

Overall height to overhead guard   2095mm

Fork overhang   450mm

Wheel base   1640mm

Front tread   970mm

Rear tread   970mm

Front tyre   7.00-12

Rear tyre   6.00-9

Fork length   1070mm

Fork width   100mm

Fork thickness   40mm

Backrest height   1000mm

Engine model   XINCHAI(490)

Rate power   39kw

Rotate speed at rate power   2650rpm

Max.torque   143.7Nm

Rotate speed at max torque   1600rpm

Type of power shift   Hydraulic
