1.5ton

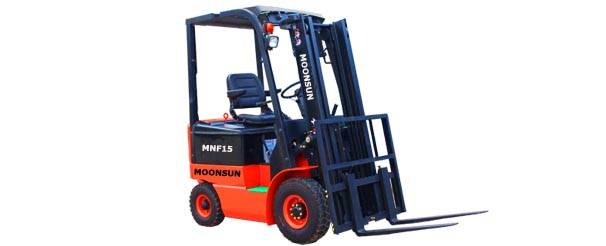

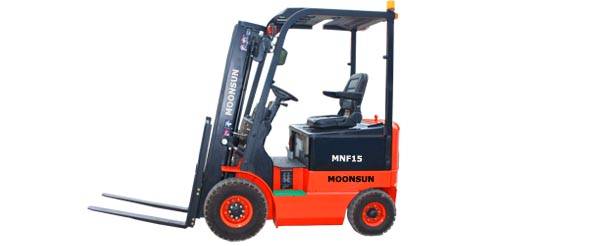

Can be diesel(XINCHAI YANMAR ISUZU) and battery type.

Can be mechanical and hydraulic side shift.

Can be 2 stages(3300mm/3500mm/4000mm/4500mm/5000mm)

and 3 stages(4500mm/5000mm/6000mm/7300mm).

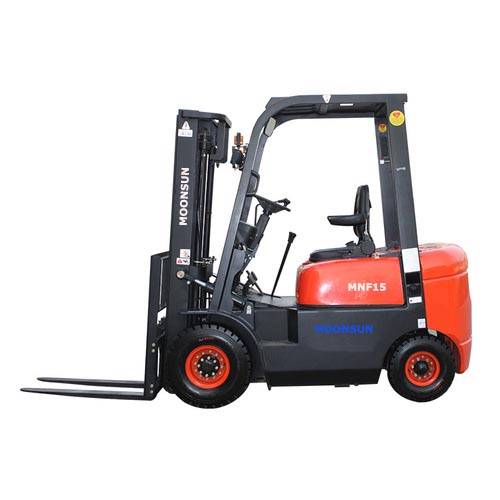

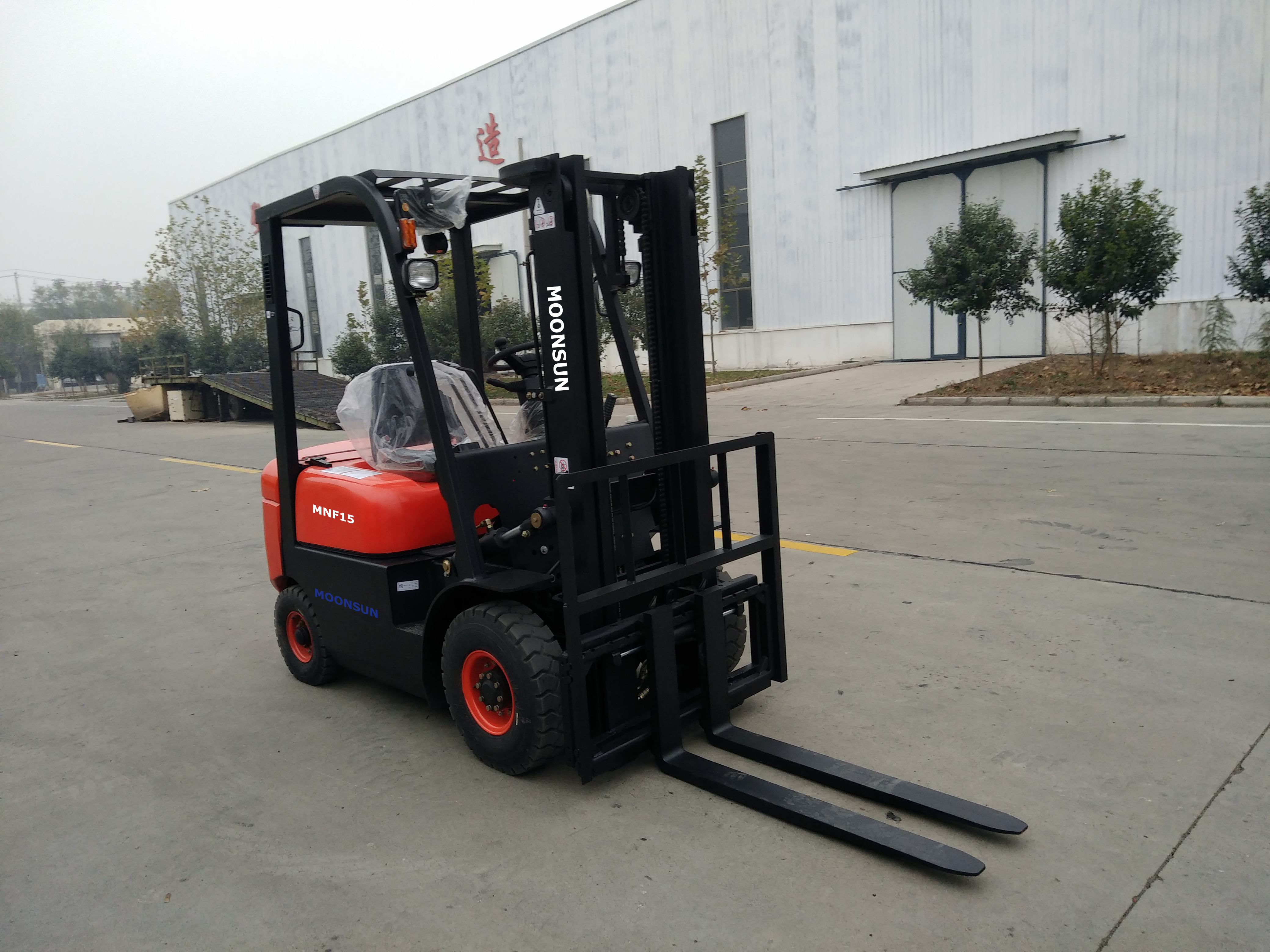

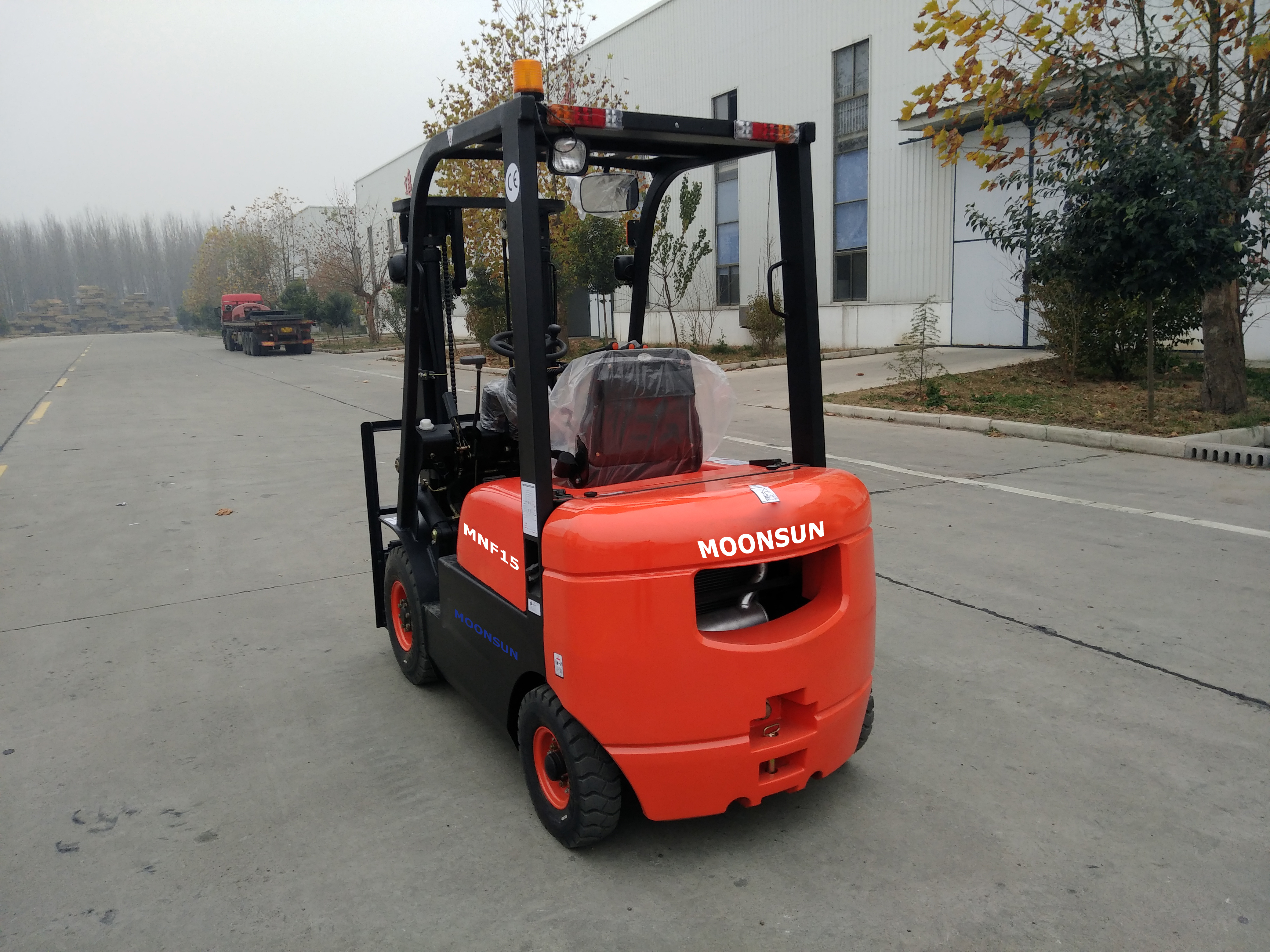

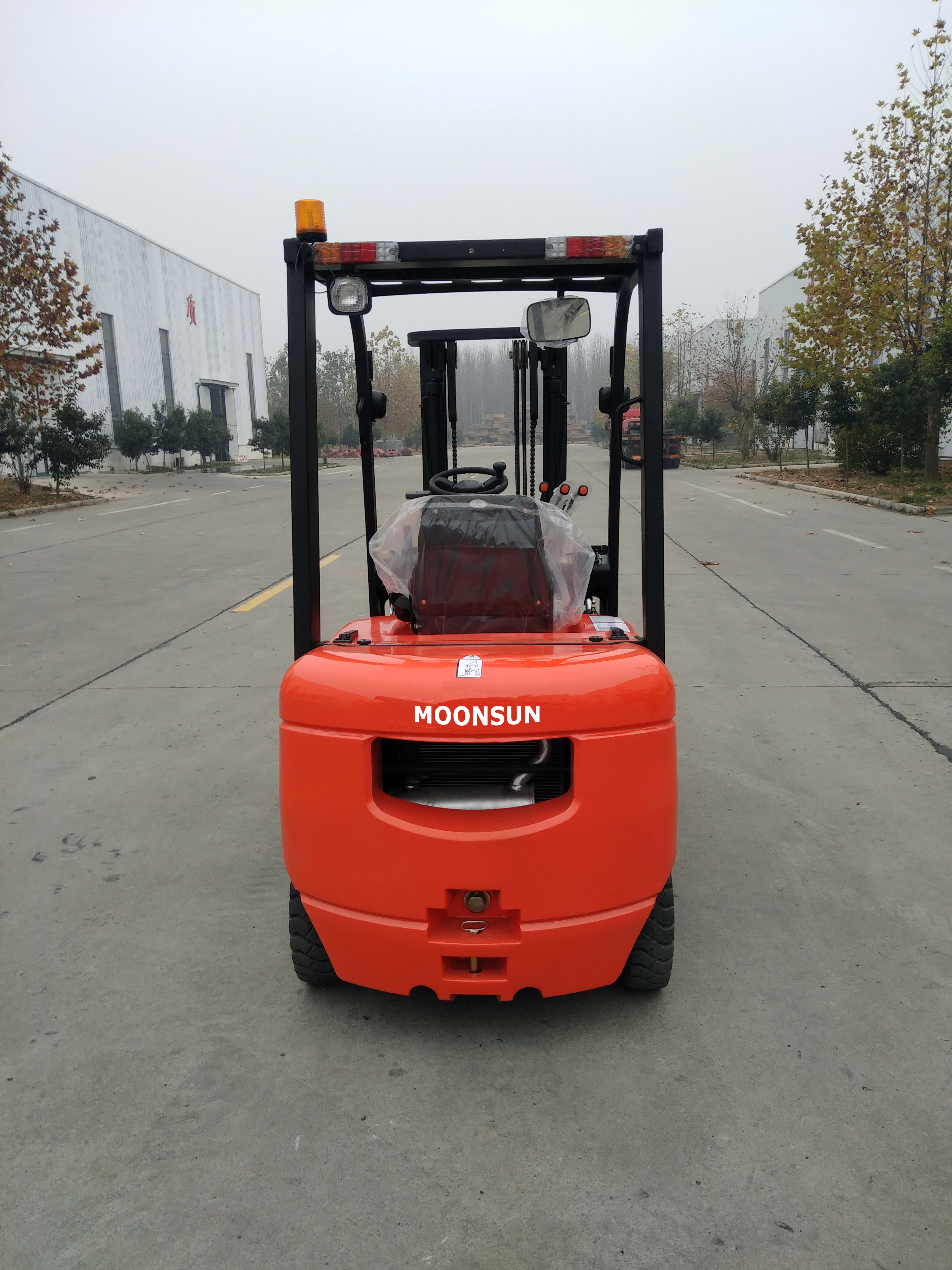

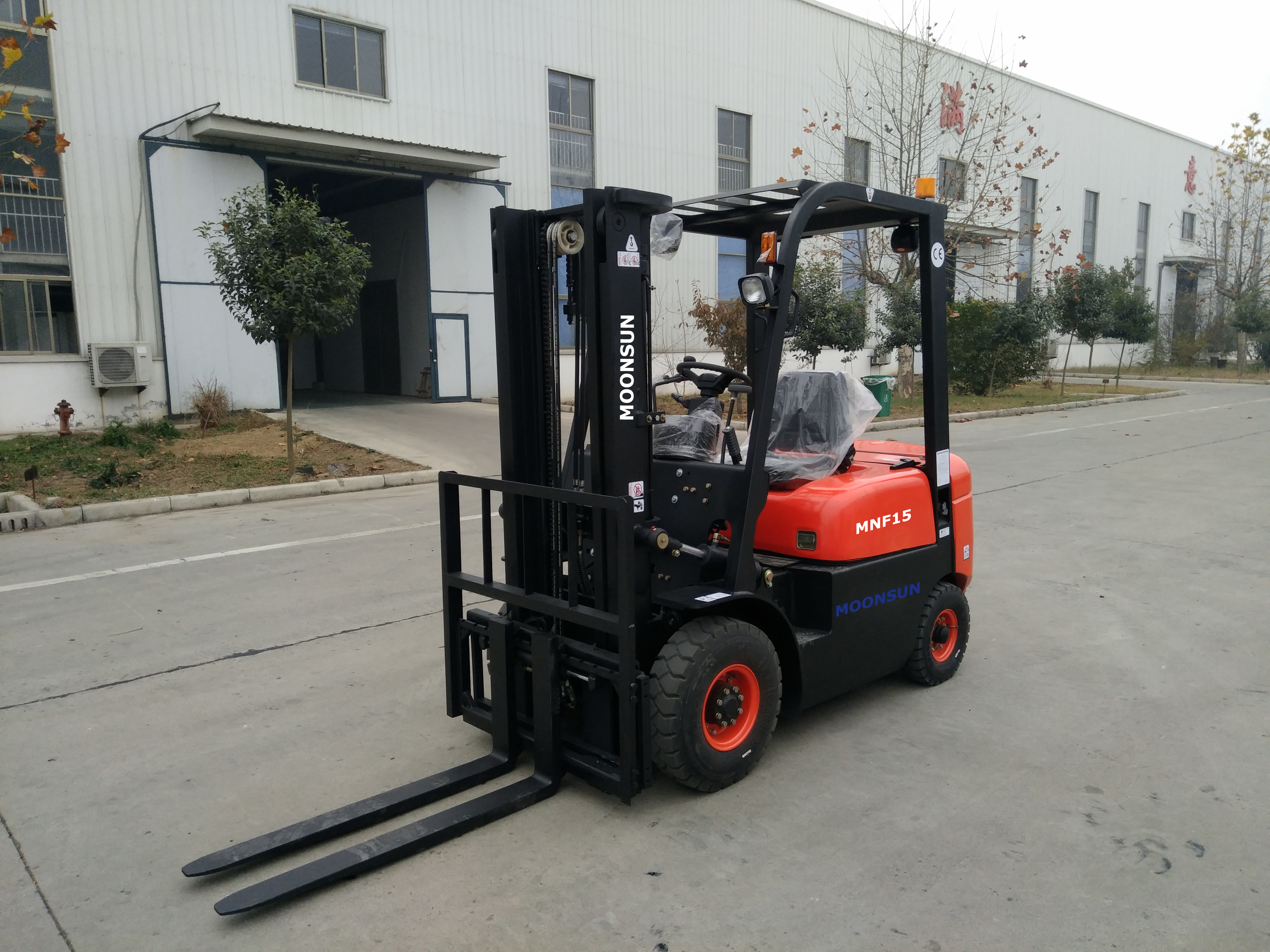

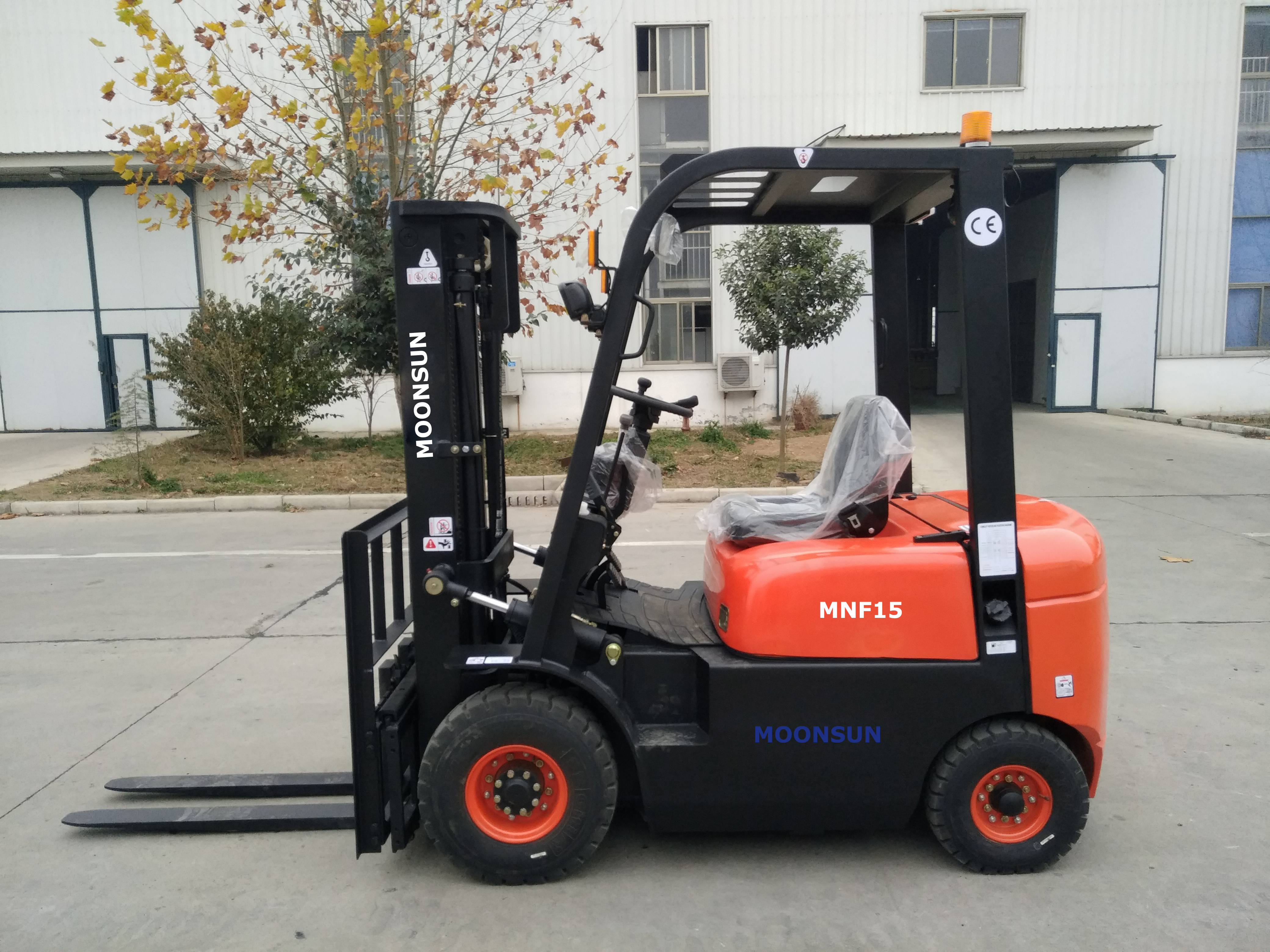

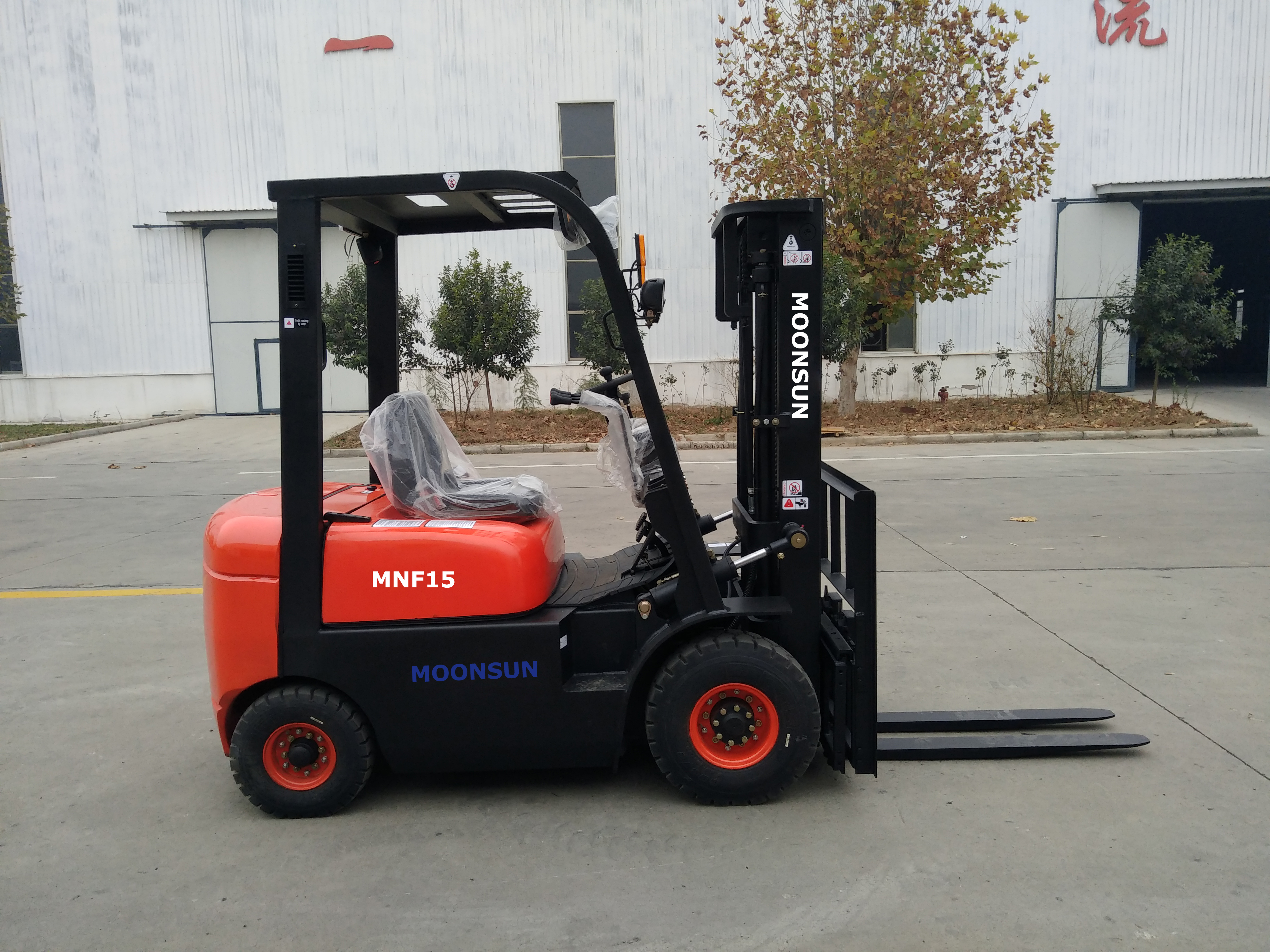

Model   MNF15

Brand   MOONSUN

MAIN SPECIFICATION

Total weight   2700kg

Load capacity   1500kg

Load center   500mm

Power type   Diesel/Battery

Max.lifting speeds(with load)   500mm/s

Max.driving speeds(with/without load)   14.5/15km/h

Max.towing(with/without load)   14.4/8.5KN

Grade ability(with/without load)   15/20%

Lifting height   3000mm

Free lift   70mm

Tilting angles(forward-backward)   6/12mm

Min.turning radius  2000mm

Min.right angle aisle width   1770mm

Min.under-clearance   110mm

Overall length(include fork)   3195mm

Overall width   1085mm

Overall height(mast lowered)   1995mm

Overall height(mast extended)   4030mm

Overall height to overhead guard   2085mm

Fork overhang   430mm

Wheel base   1450mm

Front tread   890mm

Rear tread   920mm

Front tyre   6.50-10-10

Rear tyre   5.00-8-10

Fork length   920mm

Fork width   100mm

Fork thickness   35mm

Backrest height   1000mm

Engine model   XINCHAI(485)

Rate power   30kw

Rotate speed at rate power   2600rpm

Max.torque   131Nm

Rotate speed at max torque   1600rpm

Type of power shift   Hydraulic
